About the product

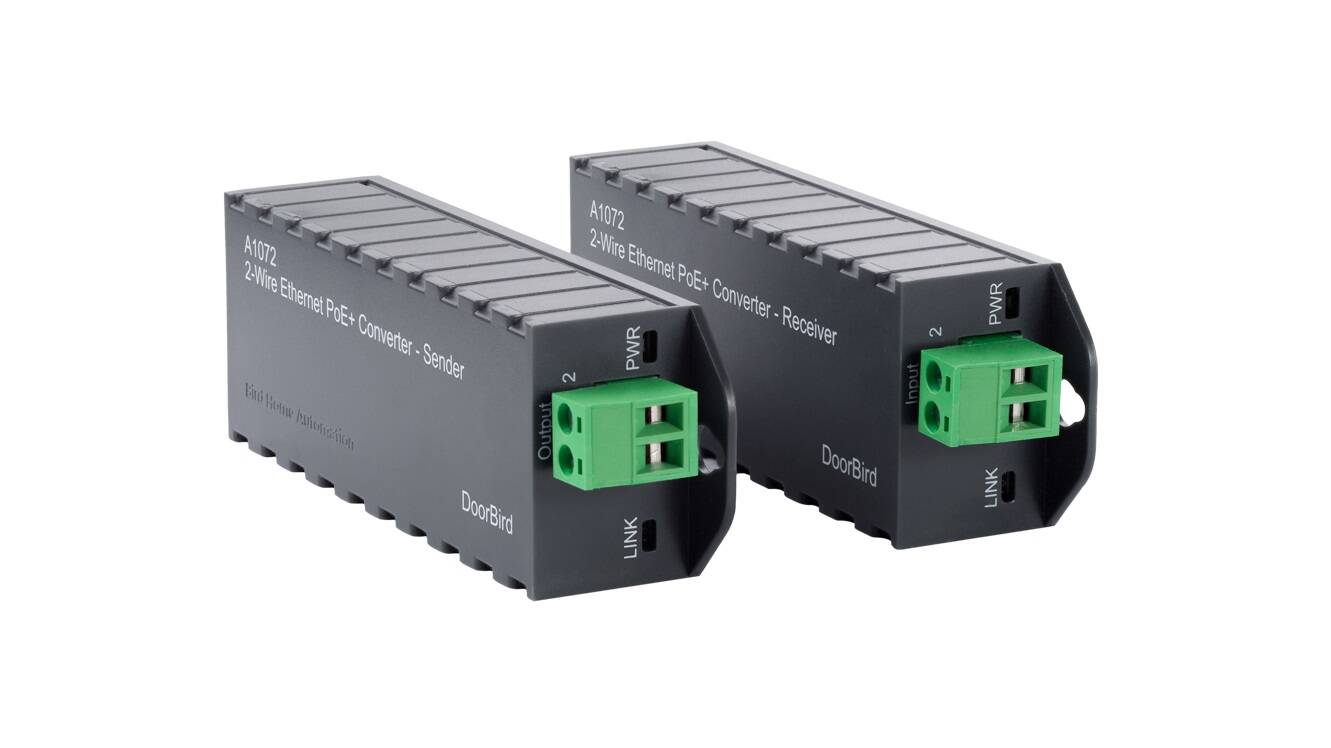

The DoorBird 2-Wire Ethernet PoE+ Converter is an extremely compact 2-wire converter that allows users to transfer both data (Ethernet) and power (PoE+) using an existing two-wire cable like a bell wire. Perfect for retrofitting older buildings without having to run network cables.
The Sender connects to your standard network switch or router with a network cable. Then 2 wires are run to the receiver which is located near the Doorbird station.
Supports PoE and PoE+ devices via PoE+ IEEE 802.3at Mode A, supports 30 W max, power supply not included.
PLEASE NOTE: Maximum distance is 80 meters. This is a converter - it does NOT add PoE+ power on its own. A PoE+ switch or PoE+ injector is still required in-line for power delivery.
A1072 Specs and Features

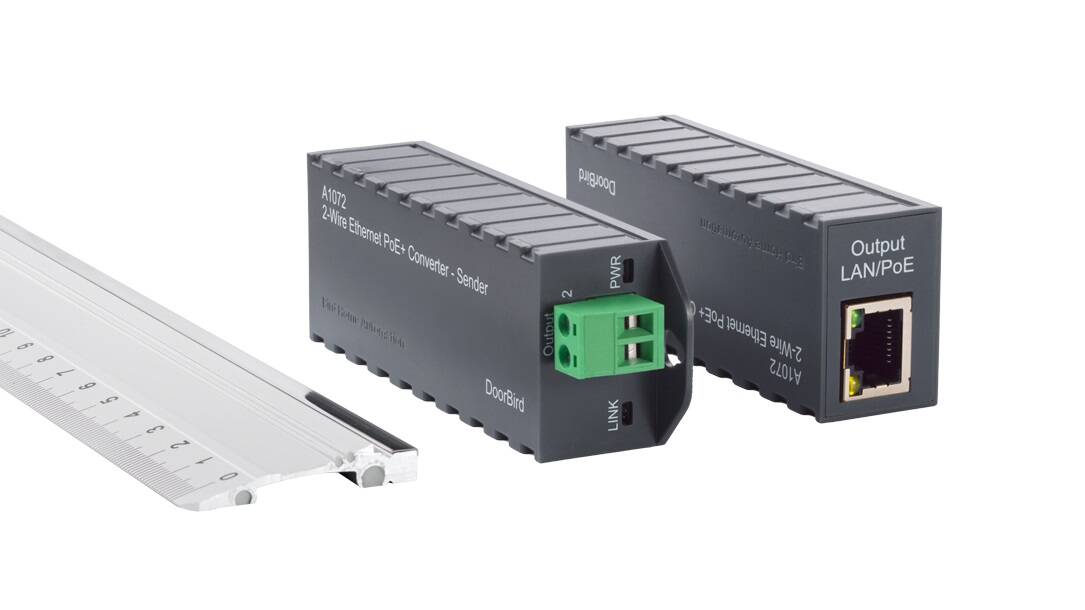

- Dimensions: 33 x 25 x 88 mm (H x W x D) / 1.30'' x 0.98'' x 3.6'' (H x W x D)
- Power supply: PoE+ switch or PoE+ injector (IEEE 802.3 at), not included, sold separately
- Operating conditions: -25 to 55°C / -13 to 131°F
- Humidity: 10 to 85 % RH (non condensing)
- Speed: Up to 60 MBit/s at maximum transmission range
- Latency: ~ 0.01 ms
- Connectors: 1x RJ45, 2x screw terminals
- Sender: LAN/PoE 10/100 MBit/s PoE+ IEEE 802.3at Mode A data line pairs 1/2 (+), 3/6 (-) 30W max.
- Receiver: LAN/PoE 10/100 MBit/s PoE+ IEEE 802.3at Mode A data line pairs 1/2 (+), 3/6 (-) 30W max. (Note: PoE+ is backwards compatible, you can power also a PoE IEEE 802.3af 15W device)
- PoE: PoE 802.3 at Mode-A and PoE +, up to 30 W PoE Mode A data line pair 1/2 (+), 3/6 (-)
- Diagnostic: LED PWR
- LED Range: 80 meters / 262 feet
- Required accessories: 2 x Network cable, IEEE 802.3 at PoE+ switch or PoE+ injector
- Approvals: CE, FCC, UL, RoHS, IP20
- Weather-proof: No
- Weight: 140 g
- EAN: 4251489602186
Technical Specifications
The DoorBird 2-Wire Ethernet PoE+ Converter is an extremely compact 2-wire converter that allows users to transfer both data (Ethernet) and power (PoE+) using an existing two-wire cable like a bell wire. Perfect for retrofitting older buildings without having to run network cables.
The Sender connects to your standard network switch or router with a network cable. Then 2 wires are run to the receiver which is located near the Doorbird station.
Supports PoE and PoE+ devices via PoE+ IEEE 802.3at Mode A, supports 30 W max, power supply not included.
PLEASE NOTE: Maximum distance is 80 meters. This is a converter - it does NOT add PoE+ power on its own. A PoE+ switch or PoE+ injector is still required in-line for power delivery.
A1072 Specs and Features
- Dimensions: 33 x 25 x 88 mm (H x W x D) / 1.30'' x 0.98'' x 3.6'' (H x W x D)
- Power supply: PoE+ switch or PoE+ injector (IEEE 802.3 at), not included, sold separately
- Operating conditions: -25 to 55°C / -13 to 131°F
- Humidity: 10 to 85 % RH (non condensing)
- Speed: Up to 60 MBit/s at maximum transmission range
- Latency: ~ 0.01 ms
- Connectors: 1x RJ45, 2x screw terminals
- Sender: LAN/PoE 10/100 MBit/s PoE+ IEEE 802.3at Mode A data line pairs 1/2 (+), 3/6 (-) 30W max.
- Receiver: LAN/PoE 10/100 MBit/s PoE+ IEEE 802.3at Mode A data line pairs 1/2 (+), 3/6 (-) 30W max. (Note: PoE+ is backwards compatible, you can power also a PoE IEEE 802.3af 15W device)
- PoE: PoE 802.3 at Mode-A and PoE +, up to 30 W PoE Mode A data line pair 1/2 (+), 3/6 (-)
- Diagnostic: LED PWR
- LED Range: 80 meters / 262 feet
- Required accessories: 2 x Network cable, IEEE 802.3 at PoE+ switch or PoE+ injector
- Approvals: CE, FCC, UL, RoHS, IP20
- Weather-proof: No
- Weight: 140 g
- EAN: 4251489602186
