About the product

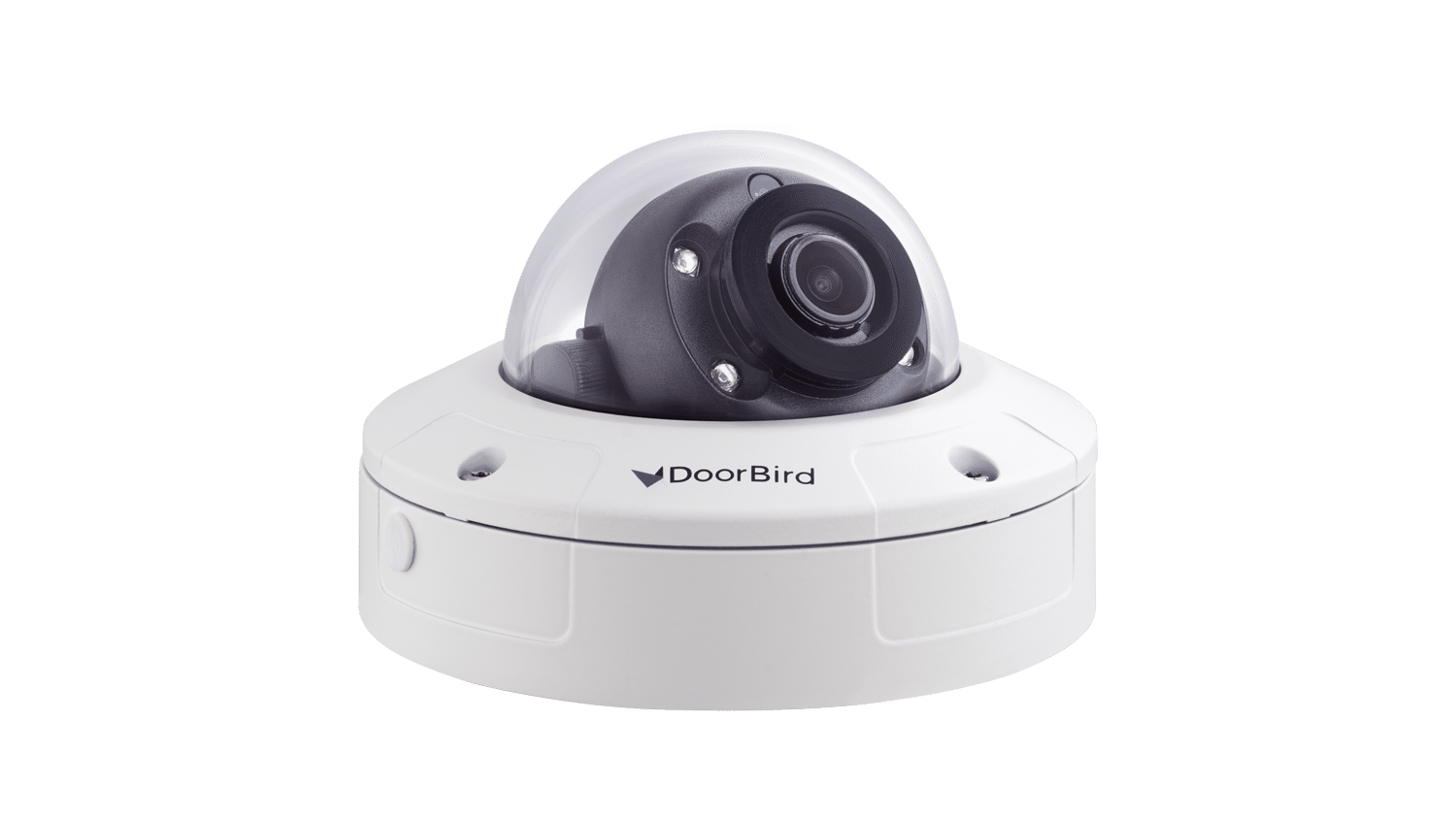

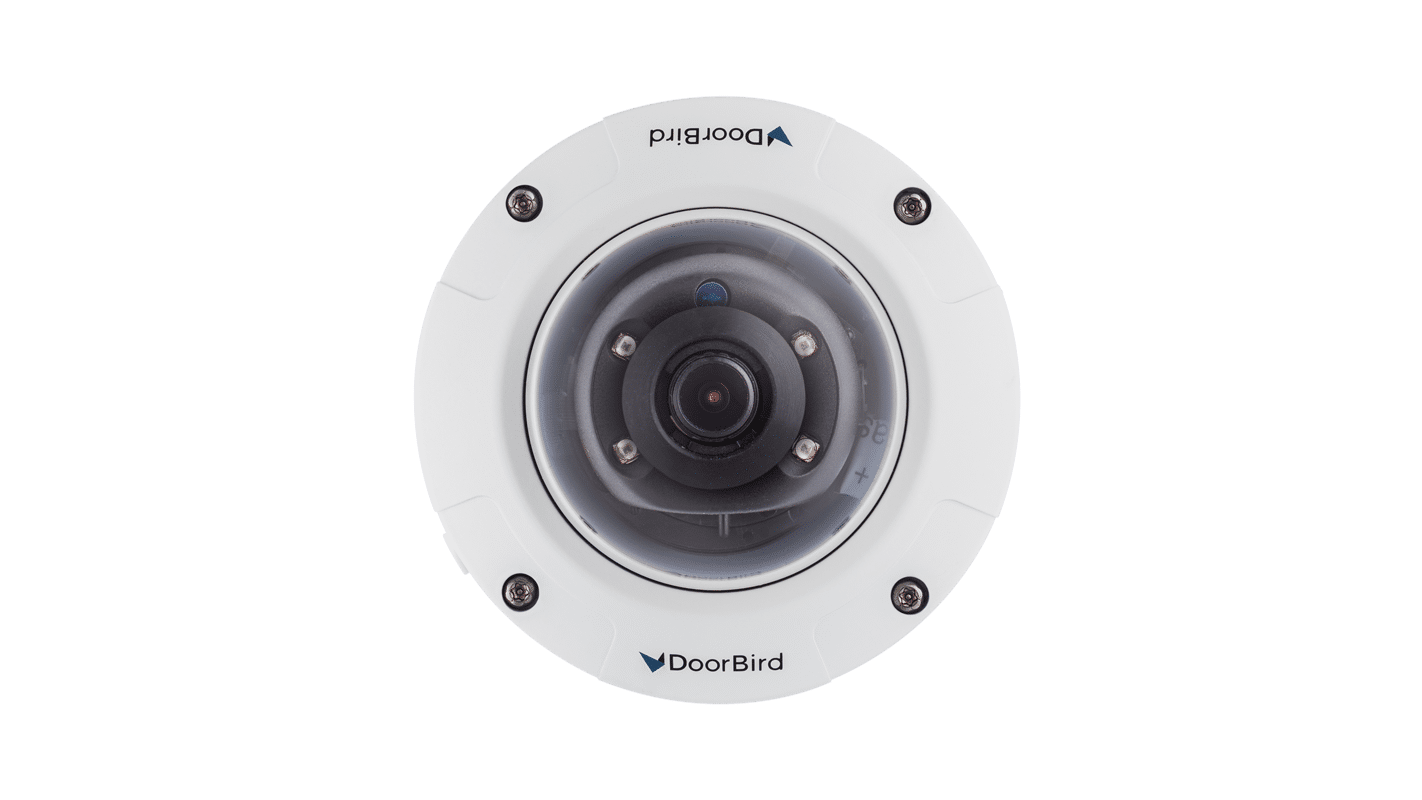

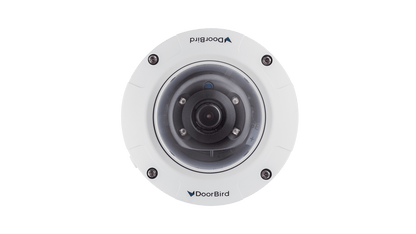

The DoorBird 2MP Mini Dome Camera gives connected users a wider perspective and increased security for integrated DoorBird access control systems-- the Mini Dome Camera provides crystal-clear 1080p HD video from a 1/2.8”, 2 megapixel Sony Starvis™ image sensor. Sony WDR prevents image blow-outs from heavy backlighting and ensures a highly detailed picture optimized for mobile devices via WiFi as well as cellular connections over 3G, 4G & 5G.
Installs via PoE network cable or 2-wire doorbell wire (with DoorBird 2-wire transmitter) and connects via QR-code for hassle-free install. Simplified WiFi connection available with additional hardware (sold separately). Compatible with a wide variety of Smart Home and NVR-based systems; including KNX, Loxone, Synology, KIWI, AVM FRITZ!Fon, URC, Bang & Olufsen, Control4, QNAP, RTI, Nice, Fibaro and many more.
A1131 Specs and Features
- Designed for DoorBird access control systems, provides a secondary video feed for enhanced security
- Robust metal housing for permanent indoor or outdoor installation via ceiling or wall mounting
- PoE and WiFi-capable (separate WiFi Kit A8010 required for wireless connectivity, sold separately)
- Open API, for third-party applications such as automatic license plate recognition (ANPR) for gate opening
- Additional motion sensing features (VMD) available via free update in late-2025
- Material: Metal (housing) and polycarbonate (dome)
- Power supply: 48 -57 V DC; Power over Ethernet (PoE)
- Weight: 355 g
- Connectors:
- RJ-45 10 Base-T/100 Base (PoE)
- Reset button
- External input for external motion sensor or alarm contact
- 5V 100 mA output, e.g. for external sensors
- SMA (Male)
- Camera: 1/2.8”, 2 megapixel Sony Starvis™ image sensor
- Video Resolution: Up to 1920 x 1080 px
- Min. illumination/photosensitivity: (color) 0.001 Lux
- Video compression: H.264 and MJPG
- Frame rate: Up to 25 / 30 fps
- Lens: Fixed lens, lens optics: 2.8 mm / 0.11 in
- 136.4° (D), 115.1 (H), 61.1 (V)
- Angle adjustment:
- Lens mount: Pan -120°~165°
- Tilt 30°~90° (manual)
- Night vision: Yes, light sensor, automatic IR cut filter, infrared LEDs (850 nm)
- Power consumption: 5 W
- Ethernet: PoE 802.3af Mode-A, 10/100 Base-T
- WiFi: 802.11 b/g/n 2.4 GHz (57 VDC power supply required, sold separately)
- Supported protocols: HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, (RTP [RFC2833], STM, 802.11n
- Protection class: IP65, IK08
- Approvals: CE, FCC, IC, REACH, ROHS 2.0, California 65, WEEE, EN IEC 62368
- Dimensions:
- Height: 63.5 mm / 2.5 in
- Diameter: 99 mm / 3.89 in
- Operating conditions: -30°C to 70°C / -22 to 158°F
- Relative humidity: 20% to 80% (noncondensing)
- What's Included: 1x A1131 IP Video Mini Dome Camera, 2x 800 mm / 31.49 in connection cable, 1x Installation manual, 1x Quick start guide with Digital Passport, 1x Small parts
- Warranty: See www.doorbird.com/warranty
Technical Specifications
The DoorBird 2MP Mini Dome Camera gives connected users a wider perspective and increased security for integrated DoorBird access control systems-- the Mini Dome Camera provides crystal-clear 1080p HD video from a 1/2.8”, 2 megapixel Sony Starvis™ image sensor. Sony WDR prevents image blow-outs from heavy backlighting and ensures a highly detailed picture optimized for mobile devices via WiFi as well as cellular connections over 3G, 4G & 5G.
Installs via PoE network cable or 2-wire doorbell wire (with DoorBird 2-wire transmitter) and connects via QR-code for hassle-free install. Simplified WiFi connection available with additional hardware (sold separately). Compatible with a wide variety of Smart Home and NVR-based systems; including KNX, Loxone, Synology, KIWI, AVM FRITZ!Fon, URC, Bang & Olufsen, Control4, QNAP, RTI, Nice, Fibaro and many more.
A1131 Specs and Features
- Designed for DoorBird access control systems, provides a secondary video feed for enhanced security
- Robust metal housing for permanent indoor or outdoor installation via ceiling or wall mounting
- PoE and WiFi-capable (separate WiFi Kit A8010 required for wireless connectivity, sold separately)
- Open API, for third-party applications such as automatic license plate recognition (ANPR) for gate opening
- Additional motion sensing features (VMD) available via free update in late-2025
- Material: Metal (housing) and polycarbonate (dome)
- Power supply: 48 -57 V DC; Power over Ethernet (PoE)
- Weight: 355 g
- Connectors:
- RJ-45 10 Base-T/100 Base (PoE)
- Reset button
- External input for external motion sensor or alarm contact
- 5V 100 mA output, e.g. for external sensors
- SMA (Male)
- Camera: 1/2.8”, 2 megapixel Sony Starvis™ image sensor
- Video Resolution: Up to 1920 x 1080 px
- Min. illumination/photosensitivity: (color) 0.001 Lux
- Video compression: H.264 and MJPG
- Frame rate: Up to 25 / 30 fps
- Lens: Fixed lens, lens optics: 2.8 mm / 0.11 in
- 136.4° (D), 115.1 (H), 61.1 (V)
- Angle adjustment:
- Lens mount: Pan -120°~165°
- Tilt 30°~90° (manual)
- Night vision: Yes, light sensor, automatic IR cut filter, infrared LEDs (850 nm)
- Power consumption: 5 W
- Ethernet: PoE 802.3af Mode-A, 10/100 Base-T
- WiFi: 802.11 b/g/n 2.4 GHz (57 VDC power supply required, sold separately)
- Supported protocols: HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, (RTP [RFC2833], STM, 802.11n
- Protection class: IP65, IK08
- Approvals: CE, FCC, IC, REACH, ROHS 2.0, California 65, WEEE, EN IEC 62368
- Dimensions:
- Height: 63.5 mm / 2.5 in
- Diameter: 99 mm / 3.89 in
- Operating conditions: -30°C to 70°C / -22 to 158°F
- Relative humidity: 20% to 80% (noncondensing)
- What's Included: 1x A1131 IP Video Mini Dome Camera, 2x 800 mm / 31.49 in connection cable, 1x Installation manual, 1x Quick start guide with Digital Passport, 1x Small parts
- Warranty: See www.doorbird.com/warranty
