About the product
The A224-01K-BK RG6/U Quad-Shield CMR-Rated Coaxial Cable is premium cabling designed for high-frequency indoor/outdoor applications, such as television antennas, digital cable and satellite transmissions, and video surveillance systems. RG6/U coaxial cable has lower attenuation than RG59 cable, making it superior over long distances.Manufactured with an 18 AWG copper-clad steel center conductor, the 75-ohm A224-01K-BK is tested to 3 GHz and features quad shielding, which means aluminum foil and braid shielding over another layer of aluminum foil and braid for error-free transmission. Protected by a flame-retardant CMR-rated PVC jacket, this black cable meets UL1655, UL13, UL444 and RoHS standards.
- Lower attenuation than RG59 cable for longer distances
- 18 AWG copper-clad steel center conductor

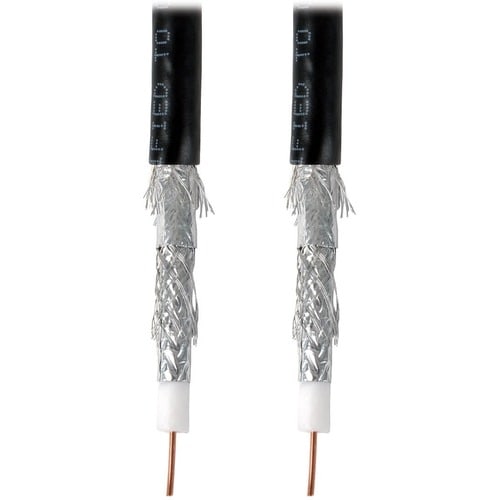

- Quad foil and braid shielding for error-free transmission
- Flame-retardant CMR-rated PVC jacket
- Meets UL1655, UL13, UL444 and RoHS standards
Technical Specifications
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 35 lb (15875.73 g) |
| Shipping Height | 9.45" (240.03 mm) |
| Shipping Width | 20.87" (530.10 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | A224-01K-BK |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Manufacturer | Eaton Corporation |
| Product Model | A224-01K-BK |
| Product Name | RG6/U Quad-Shield CMR-Rated Coaxial Cable, Black, 1000 ft |
| Brand Name | Tripp Lite series |
| Technical Information | |
| Cable Length | 1000 ft (304.80 m) |
| Device Supported | Video Surveillance System |
| Antenna | |
| Shielding | Yes |
| Features | Flame Retardant |
| Cable Type | Coaxial |
| Connector Type on First End | Bare Wire |
| Connector Type on Second End | Bare Wire |
| American Wire Gauge | 18 AWG |
| Connector on First End Details | 1 x Bare Wire |
| Connector on Second End Details | 1 x Bare Wire |
