About the product

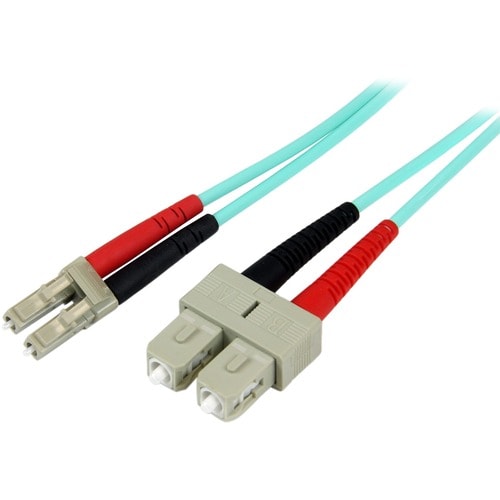

Perfect for fiber cable runs between multiple backbone switches, hubs and routers as well as higher end networking equipment, this high speed 10 Gigabit Multimode Duplex Fiber Cable is terminated with LC and SC connectors, and is composed of 50/125 micron OM3 aqua fiber to deliver reliable data transfers at blinding speeds.
Suited for a broad range of environments, A50FBLCSC10 is housed in a flame retardant, LSZH (Low-Smoke, Zero-Halogen) cable jacket, taking safety to a new level by ensuring minimal smoke, toxicity and corrosion in the event of a fire - making it the best choice for a wide range of environments, including industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
- OM3 FIBER CABLE: OM3 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
- QUALITY CONSTRUCTION: 50/125µm fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/SC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
- RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes in case of fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards
- COMPATIBILITY: OM3 LC/SC multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10; Backward compatible with OM2
- SPECS: 10m (33ft); Color: Aqua (OM3); LC/SC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ?2000MHz·km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life
Technical Specifications
| Miscellaneous | |
| Country of Origin | China |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 3.20 oz (90.72 g) |
| Shipping Height | 8.66" (219.96 mm) |
| Shipping Width | 0.98" (24.89 mm) |
| Product Color | Aqua |
| Color Family | Green |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | A50FBLCSC10 |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 10Gb Fiber Optic Duplex Cable |
| Brand Name | StarTech.com |
| Technical Information | |
| Cable Length | 32.8 ft (10 m) |
| Data Transfer Rate | 10 Gbit/s |
| Device Supported | Switch |
| Hub | |
| Network Device | |
| Router | |
| Jacket Type | LSZH |
| Features | Halogen Free |
| Flame Retardant | |
| Cable Characteristic | Patch Cable |
| Cable Type | Fiber Optic |
| Connector Type on First End | LC Network - Male |
| Connector Type on Second End | SC Network - Male |
| Fiber Optic Mode | Multi-mode |
| Connector on First End Details | 2 x LC Network - Male |
| Connector on Second End Details | 2 x SC Network - Male |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
