About the product

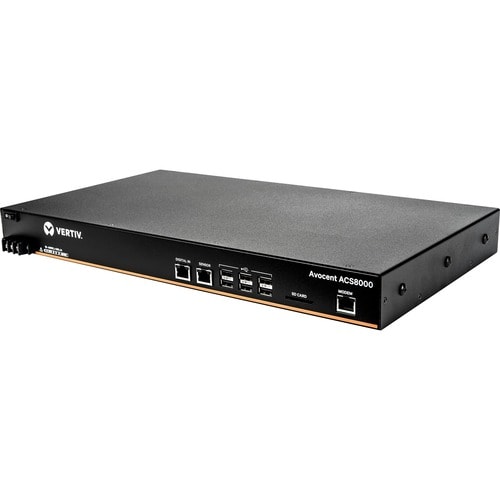

The Vertiv™ Avocent® ACS 8000 Advanced Console Server system integrates connectivity features for secure in-band and out-of-band network remote management of IT assets from anywhere in the world. Includes dual AC power supply and analog modem. The system offers scalability and reduces operational costs for a range of applications from insurance and financial institutions, to education, government, healthcare, oil and gas, the military, retail/wholesale and more.
- REMOTE MANAGEMENT: Avocent ACS 8000 32-Port Advanced Terminal Management Serial Console Server with Analog Modem and Dual DC Power Supply allows users to access and troubleshoot remote locations using automatic network failover to cellular (and failback)
- AUTOMATED PROVISIONING: Offers fast, automated configuration with zero touch provisioning; compliant with data center access and security policies; powerful Dual-core ARM processor and 16GB of flash memory to support automation scripting
- 8 USB 2.0 PORTS: Support external devices, IoT products and IT equipment; Features digital input / output & sensor ports
- POWER DEVICE MANAGEMENT: Dual 1 gigabit Ethernet port for network connectivity and failover and secure in band management for daily networking management; Expanded support for Rack PDUs from Vertiv, ServerTech, APC, Raritan and Eaton along with Vertiv GXT4 UPS systems
- ENVIRONMENTAL SENSOR PORT: To connect temperature, humidity, differential pressure, leak, door pin sensors
Technical Specifications
| Miscellaneous | |
| Country of Origin | Mexico |
| Processor & Chipset | |
| Processor Speed | 667 MHz |
| Technical Information | |
| Device Type | Console Server |
| Wireless Specifications | |
| Wireless LAN | No |
| Environmental Conditions | |
| Minimum Operating Temperature | 50°F (10°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Memory | |
| Maximum Memory Supported | 1 GB |
| Standard Memory | 1 GB |
| Memory Technology | DDR3 SDRAM |
| Network & Communication | |
| Network Standard | 10/100/1000Base-T |
| 1000Base-X | |
| Ethernet Technology | Gigabit Ethernet |
| Power Description | |
| Input Voltage | 100 V AC |
| 240 V AC | |
| Frequency | 50 Hz |
| 60 Hz | |
| Input Current | 670 mA |
| Power Consumption | 33 W |
| Input Voltage Range | 100â€"240 VAC |
| Physical Characteristics | |
| Weight (Approximate) | 7.50 lb (3400 g) |
| Form Factor | Rack-mountable |
| Height | 1.75" (44.45 mm) |
| Width | 17.25" (438.15 mm) |
| Depth | 9.50" (241.30 mm) |
| Product Color | Black |
| Color Family | Black |
| Product Material | Steel |
| Interfaces/Ports | |
| USB | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of USB Ports | 8 |
| Serial Port | Yes |
| Parallel Port | No |
| Number of Serial Ports | 32 |
| PoE (RJ-45) Port | No |
| Centronics Port | No |
| General Information | |
| Product Type | Device Server |
| Manufacturer Part Number | ACS8032MDDC-400 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Packaged Quantity | 1 |
| Manufacturer | Vertiv |
| Product Model | ACS8032MDDC-400 |
| Product Name | ACS 8000 Console 32-Port, Dual DC Power Supply and Analog Modem |
| Product Line | ACS |
| Product Series | 8000 |
| Brand Name | Vertiv AVOCENT |
