About the product

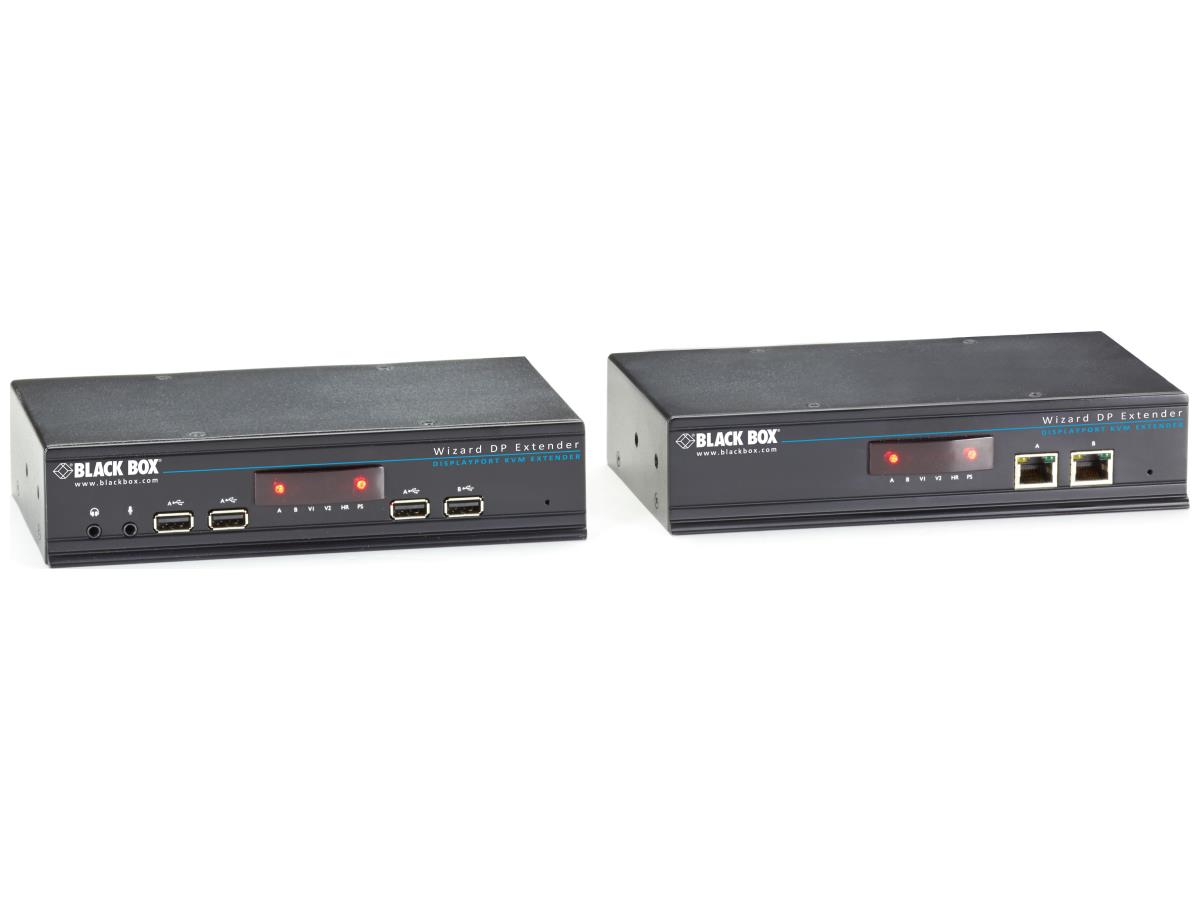

The Black Box DisplayPort Extender is a high-performance KVM extender that enables you to locate your critical computing hardware in a secure and temperature-controlled environment away from the user workstation while maintaining the same user desktop experience.
It can transmit either two 1920 x 1200 video streams or one higher resolution video stream (2560x1600 WQXGA), digital audio (S/PDIF), analog audio, Hi-Speed USB 2.0, and USB 2.0 (full and low speed) over CATx cables.
Perfect digital video, real-time control
The system is uncompressed, sending every pixel of every frame without loss. The receiver supports DisplayPort Dual Mode (DP++), meaning monitors that only support HDMI or DVI can be used (with the correct adapter cable).
Single CATx cable
Video, USB, and audio all pass along a single cable. A second CATx cable is required for the Hi-Speed USB 2.0 extension and increased video bandwidth.
Up to 492 feet (150 m) extension distances
Distance is dependent on the monitor resolution, the number of monitors, cable type, and the number of patch panels and couplers.
USB 2.0
Enables connection of any USB human interface device from mice and keyboards through to graphics tablets, jog wheels, joysticks, and 3D explorers. Mass storage devices and isochronous devices such as webcams and headsets can be used through the transparent USB 2.0 Hi-Speed port.
EDID management
The system has intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.
Plug and play
This extender solution is plug-and-play. There is no need for drivers or software to be installed.
Digital audio
Supports the S/PDIF interface via an optical 3.5mm jack socket (dual use with analog audio via mini Toslink).
HD-quality analog audio
HD-audio quality (stereo channel 24 bit sampled at 96kHz) is available to transfer audio from local to remote for Line In / Line. Headsets with integrated microphones are also supported.
Technical Specifications
| Primary Information | |
| Device Type: | KVM Extender |

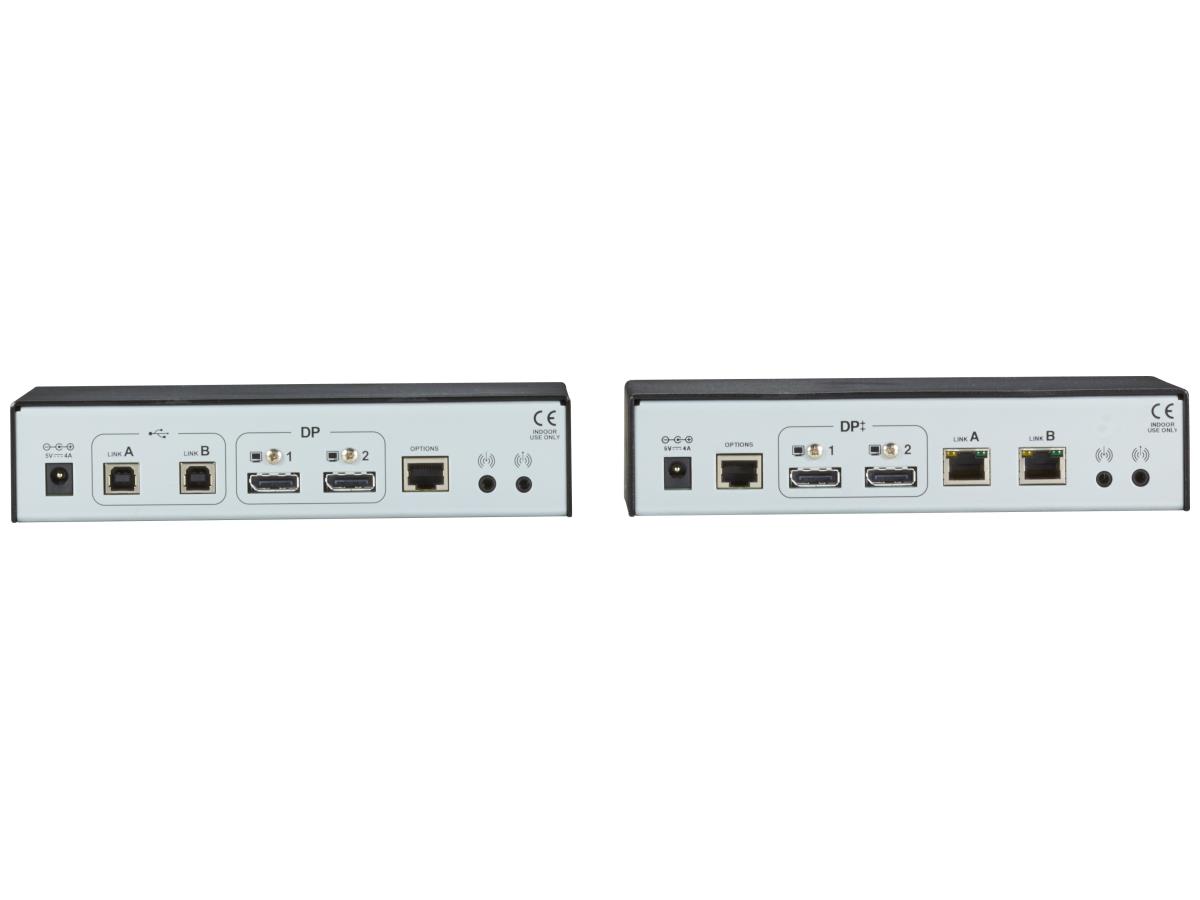

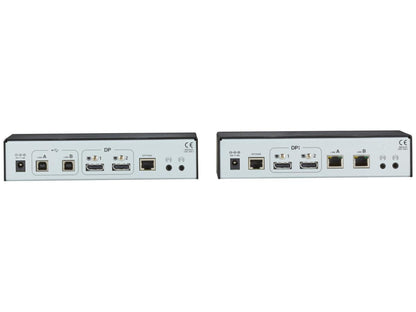

| Interfaces: | Transmitter: (2) DisplayPort (Female) (Link A/B); (2) USB Type-B (Female) (Link A/B); (2) 3.5mm Audio Connectors (MIC/Audio); (2) RJ45 Interconnects; (1) 2.5-mm Barrel for Power; Receiver: (2) DisplayPort (Female) (Link A/B); (4) USB |
| Max Resolution (external): | 3840x2160 4K at 30Hz |
| Width: | 7.92 Inch |
| Depth: | 4.62 Inch |
| Height: | 1.76 Inch |
| Service & Support Type: | Double Diamond Warranty (Standard) |
| Model: | ACU5800A |
| Features: | Extends DisplayPort, USB 2.0, USB HID, and digital/analog audio over CATx cables;Extend 3840x2160 4K at 30Hz or 2560x1600 dual-link video up to 330 ft. (100 m);Extend 1920x1080 dual-head video up to 492 ft. (150 m);Support for USB keyboards, mice, tablets, and touchscreens. |
| Special Feature | |
| RoHS: | Y |
| COO: | Inquire |
| TAA compliance: | Inquire |
| UNSPSC Code | |
| UNSPSC Code: | 43211604 |
