ACX5448 DC FRONT TO BACK HW AND OS

The ACX5000 line of Universal Metro Routers adds operational intelligence to metro environments, giving you the option to deploy packet optical, Metro Ethernet, and IP/MPLS infrastructure. The ACX5000 platforms address multiple service provider use cases, including cable distributed access architectures, residential fiber, and mobile backhaul, as well as enterprise applications for utilities, oil and gas, mining, transportation, defense, and public safety industries.

ACX5000 Line Product Family

Juniper Networks ACX Series Universal Metro Routers offer a wide range of metro solutions, including the ACX500, ACX1000, ACX2000, ACX4000, ACX5000, and ACX6000 lines. The ACX5000 line includes five models.

ACX5048: The ACX5048 provides full duplex throughput of 1.44 Tbps in a 1 U platform. Built to handle 1GbE/10GbE capacity and density, it supports 48 1GbE/10GbE and six 40GbE interfaces, making it ideal for Metro Ethernet access and aggregation deployments with full support of E-Line, E-LAN, E-Tree, and E-Access, as well as IP/IP VPN services.

ACX5096: The ACX5096 provides full duplex throughput of 2.56 Tbps in a 2 U platform. It supports 48 x 1GbE, 96 x 10GbE, and 8 x 40GbE interfaces, making it ideal for metro aggregation deployments with full support of E-Line, E-LAN, E-Tree, and E-Access, as well as IP/IP VPN services.

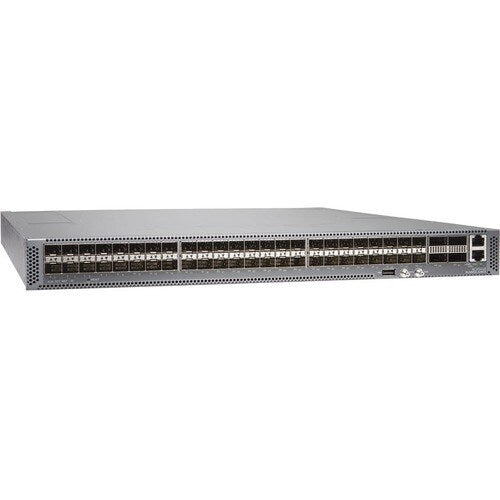

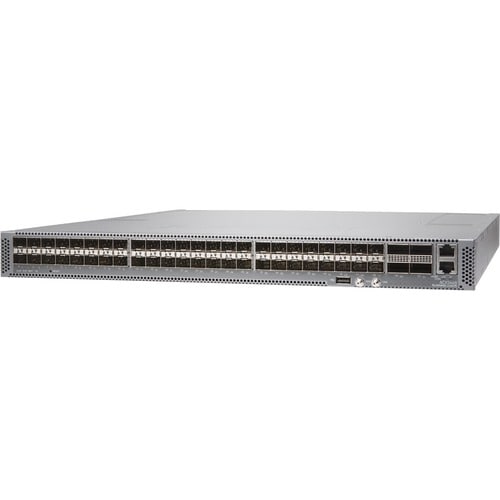

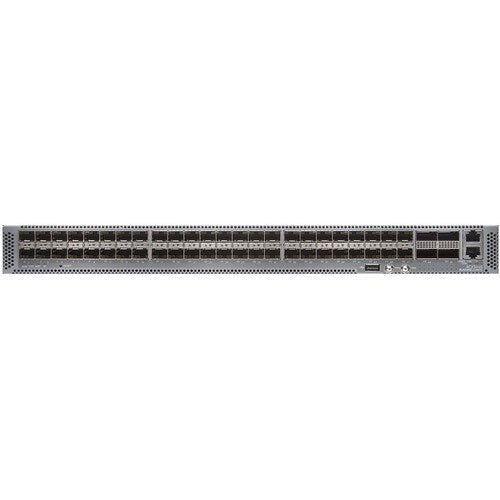

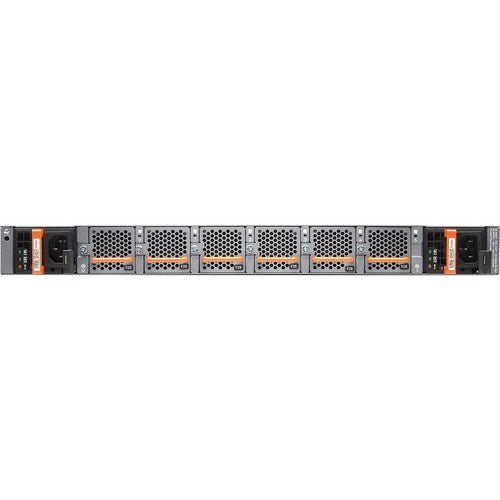

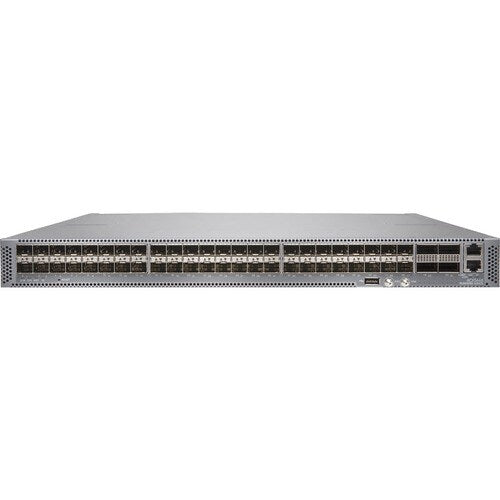

ACX5448: The ACX5448 offers 48 1GbE/10GbE aggregation ports, four high-capacity 40GbE/100GbE uplink ports, and full Metro Ethernet and IP/ MPLS VPN services in a space- and cost-optimized platform, smoothing the transition from 10GbE to 100GbE for service providers preparing for the emerging 5G rollout.

ACX5448-D: The ACX5448-D supports 36 1GbE/10GbE, two 100GbE, and two 100G/200G dense wavelength-division multiplexing (DWDM) ports using CFP2-DCO. It is designed for packet-optical convergence to reduce TCO and to help service providers prepare for the emerging 5G rollout.

ACX5448-M: The ACX5448-M supports 44 1GbE/10GbE and six 100GbE ports, as well as advanced security capabilities such as Media Access Control Security (MACsec) on all 1GbE/10GbE ports.

• Offers high performance and reliable connectivity to the Internet and other offices
• 100 Gigabit Ethernet provides high bandwidth performance, ease of use and reliability for your network connectivity
• With 10GBase-X technology, get up to 10 gbps data transfer rate over supported network cable
