About the product
The Alarm.com Two Reader Expansion Module is a powerful asset to the Alarm.com Smarter Access Control solution.
With four programmable inputs and four relay outputs, the reader adds the support needed for two additional readers for the X1100 Door controller. In large installations, up to 31 X100s can be connected together to help manage up to 64 doors.
THE BENEFITS OF SMARTER ACCESS CONTROL
the Smarter Access Control solution from Alarm.com offers user-friendly and flexible day-to-day usability. It uses a scan-to-add card format and serial detection and offers remote control and management through the Alarm.com app. With plug-and-play installation, it's easy to set up, and hardware can be configured online or through the app.

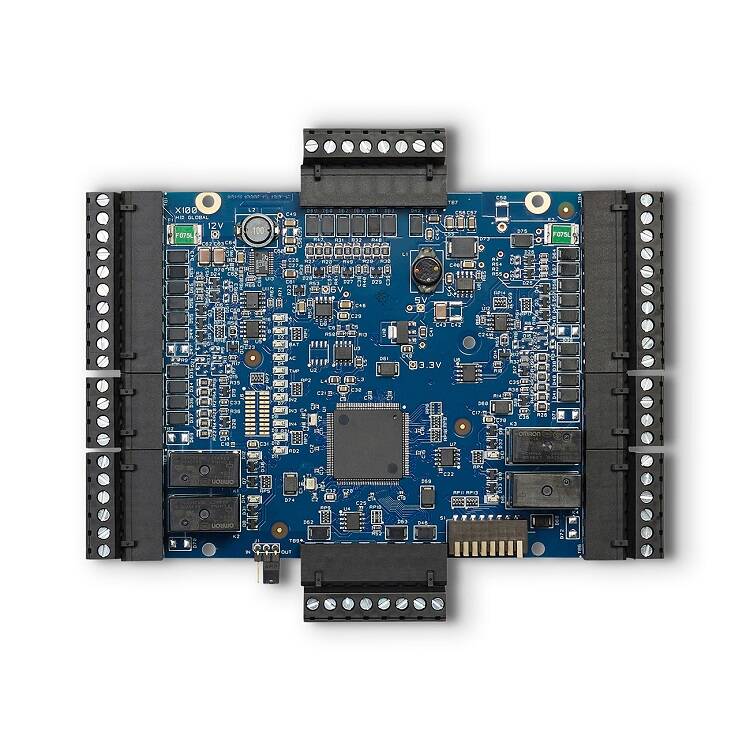

Alarm.com ADC-AC-X100 Two Reader Expansion Module Features:
- Provides all I/O needed for two additional doors
- Two dedicated reader inputs
- Four relay outputs, four programmable inputs
- For use with X1100 Door Controller only
- Connect up to 16 expansion modules per expansion port, up to 31 expansion modules in total
- Dedicated inputs for Tamper, AC Fail, Battery Fail
- Two-wire LED control
- Single-wire buzzer output
- Operational temperature range of 0°C to 70°C
- UL 294 recognized,CE compliant, FCC Class A, ICES-003
- Output power: 12 VDC, ±10%, 500 mA max each reader
- Input power: 12 to 24 VDC ±10%, 1.5 A max input current
- Interface is for use in low-voltage, Class 2 circuits only
Technical Specifications
The Alarm.com Two Reader Expansion Module is a powerful asset to the Alarm.com Smarter Access Control solution.
With four programmable inputs and four relay outputs, the reader adds the support needed for two additional readers for the X1100 Door controller. In large installations, up to 31 X100s can be connected together to help manage up to 64 doors.
THE BENEFITS OF SMARTER ACCESS CONTROL
the Smarter Access Control solution from Alarm.com offers user-friendly and flexible day-to-day usability. It uses a scan-to-add card format and serial detection and offers remote control and management through the Alarm.com app. With plug-and-play installation, it's easy to set up, and hardware can be configured online or through the app.
Alarm.com ADC-AC-X100 Two Reader Expansion Module Features:
- Provides all I/O needed for two additional doors
- Two dedicated reader inputs
- Four relay outputs, four programmable inputs
- For use with X1100 Door Controller only
- Connect up to 16 expansion modules per expansion port, up to 31 expansion modules in total
- Dedicated inputs for Tamper, AC Fail, Battery Fail
- Two-wire LED control
- Single-wire buzzer output
- Operational temperature range of 0°C to 70°C
- UL 294 recognized,CE compliant, FCC Class A, ICES-003
- Output power: 12 VDC, ±10%, 500 mA max each reader
- Input power: 12 to 24 VDC ±10%, 1.5 A max input current
- Interface is for use in low-voltage, Class 2 circuits only
