About the product

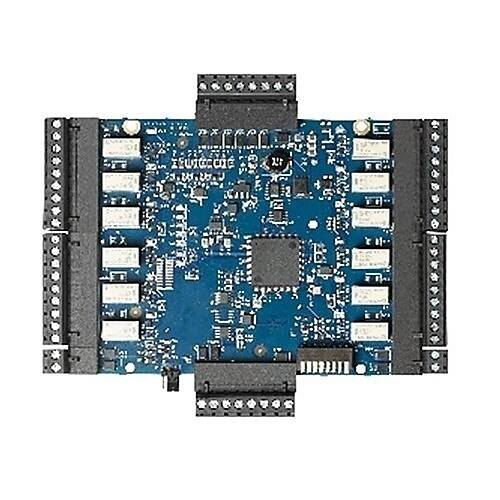

The Alarm.com HID Aero Output Monitor Module provides 12 relay outputs and 2 programmable inputs for an Alarm.com X1100 door controller. Connect up to 16 expansion modules per expansion port, up to 31 expansion modules total.
Scan-to-add card format and serial detection simplifies management of users and access credentials, and integration with the Alarm.com app allows administrators to control doors and manage users from anywhere on earth. Integrated Alarm.com intrusion detection and additional video monitoring options (sold separately) creates a total security package for any size or scale of access control project.
Plug-and-play installation simplifies installation for any level of end-user, no networking or electrical certifications required. User-friendly, flexible scheduling allows for simplified administration and quick routine deployment on connected doors.
For use with the Alarm.com X1100 Door Controller only. Interface is for low-voltage, Class 2 circuits only. Do NOT connect to line voltage.
ADC-AC-X300 Specs and Features
- Input Power: 12 to 24 VDC ±10%, 300 mA max
- Communication: Shielded 2-wire RS-485
- Inputs: 2 unsupervised/supervised programmable inputs, standard EOL: 1k/1k?, 1%, ¼ watt, one dedicated input for each of the following: Tamper, AC Fail, Battery Fail
- Outputs: Twelve Form-C relay outputs: 2 A @ 30 VDC resistive
- Certifications: UL 294 and UL1076 recognized, CE compliant, FCC Class A, ICES-003
- Dimensions (W x L x H): 6.46 × 5.51 × 1.02"" / (16.4 × 14.0 × 2.6 cm)
- Operational Temperature: 32°F — 158°F (0°C — 70°C)
- Operating Humidity: 5 – 85% (non-condensing) RH
Technical Specifications
The Alarm.com HID Aero Output Monitor Module provides 12 relay outputs and 2 programmable inputs for an Alarm.com X1100 door controller. Connect up to 16 expansion modules per expansion port, up to 31 expansion modules total.
Scan-to-add card format and serial detection simplifies management of users and access credentials, and integration with the Alarm.com app allows administrators to control doors and manage users from anywhere on earth. Integrated Alarm.com intrusion detection and additional video monitoring options (sold separately) creates a total security package for any size or scale of access control project.
Plug-and-play installation simplifies installation for any level of end-user, no networking or electrical certifications required. User-friendly, flexible scheduling allows for simplified administration and quick routine deployment on connected doors.
For use with the Alarm.com X1100 Door Controller only. Interface is for low-voltage, Class 2 circuits only. Do NOT connect to line voltage.
ADC-AC-X300 Specs and Features
- Input Power: 12 to 24 VDC ±10%, 300 mA max
- Communication: Shielded 2-wire RS-485
- Inputs: 2 unsupervised/supervised programmable inputs, standard EOL: 1k/1k?, 1%, ¼ watt, one dedicated input for each of the following: Tamper, AC Fail, Battery Fail
- Outputs: Twelve Form-C relay outputs: 2 A @ 30 VDC resistive
- Certifications: UL 294 and UL1076 recognized, CE compliant, FCC Class A, ICES-003
- Dimensions (W x L x H): 6.46 × 5.51 × 1.02"" / (16.4 × 14.0 × 2.6 cm)
- Operational Temperature: 32°F — 158°F (0°C — 70°C)
- Operating Humidity: 5 – 85% (non-condensing) RH
