About the product

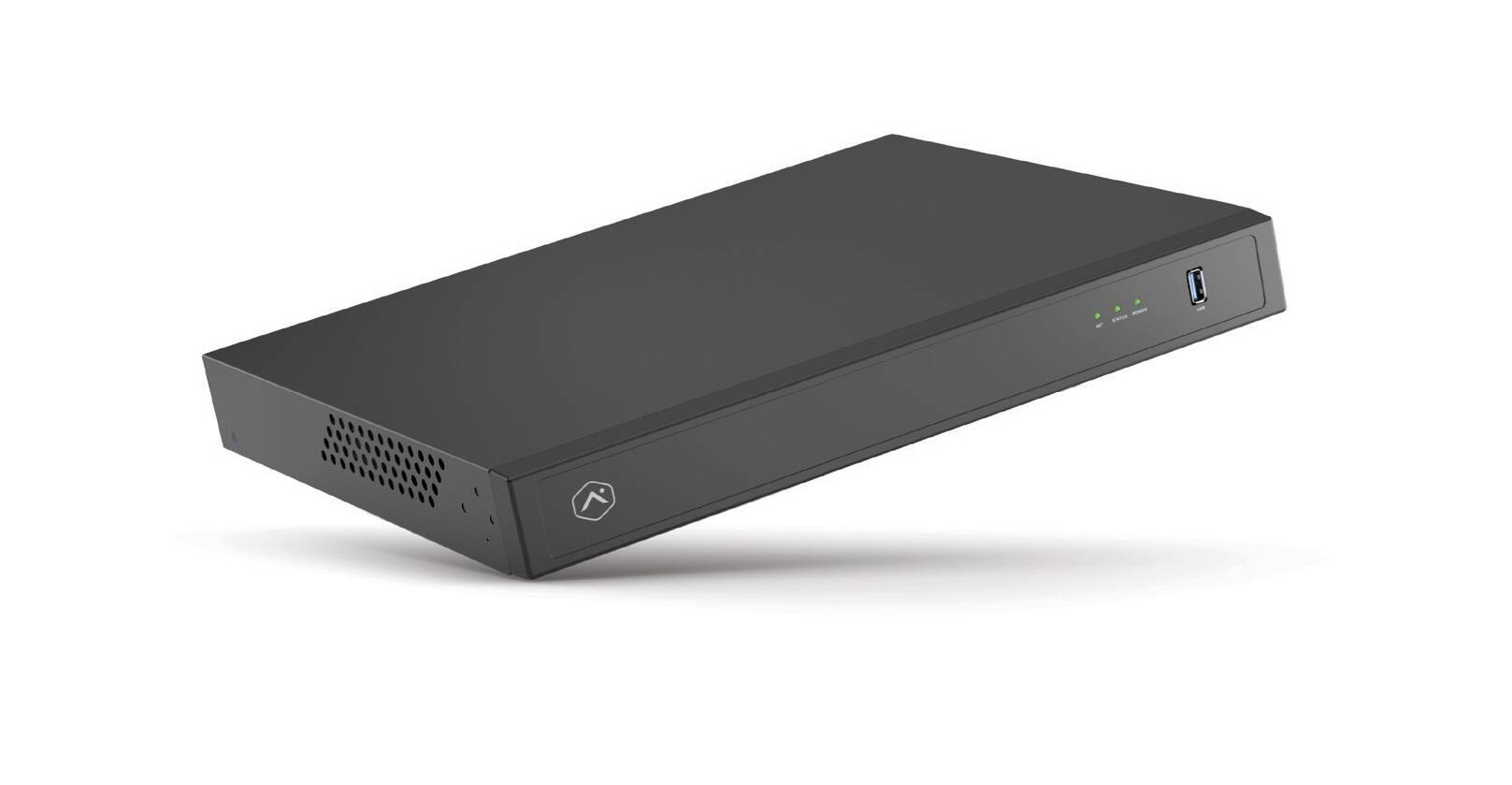

The Alarm.com Pro Series CSVR with 16 PoE ports is a commercial stream video recorder deigned to be integrated into the Alarm.com for Business platform.
Supports 24/7 recording and automatically tags, organizes and integrates analytics onto video footage for events like door openings, zone intrusion, alarm triggers and more-- ensuring smooth, efficient footage review and management directly on the CSVR, or from the Alarm.com app or website; any time, from anywhere on earth!
Supports up to 16 camera streams up to 4MP (Alarm.com Pro Series cameras required). Built-in PoE Switch supports direct camera connection for no-hassle installation and camera management. Supports video output up to 2x 4K monitors, and USB 3.0 output ensures rapid video clip exports for external storage solutions.
Kit includes AC power cord, ethernet cable for router connection and optional rack mounting ears. 2x SATA bays allows users to install security-rated HDDs up to 16TB (sold separately).
ADC-CSVR2016P-0X0TB Specs and Features
- Recording channels: Up to 16 cameras
- Video input: 16 channels @ up to 4MP (2688 x 1520)
- Local display capabilities: Live View, Playback, Clip Export, Archive Export
- Local display output: 2x HD Out, up to 3840 x 2160

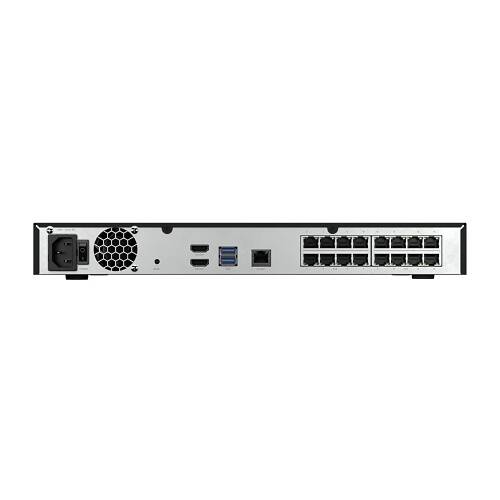

- Local clip export: 1x USB 3.0 (front), 2x USB 3.0 (rear)
- Recommended Alarm.com cameras: VC827P, VC847PF, VC728PF, VC838PF, VC726, VC736, VC826, VC836, V523 (via ethernet)
- Ethernet connectivity: 1x Client RJ45 10/100/1000 Mbps, 8x Camera PoE 802.3af RJ45 10/100 Mbps
- Internal storage: Up to 2x 3.5” HDD, SATA 6 Gb/s, 16TB each
- Dimensions (WxDxH): 14.4 x 12.5 x 1.9” (36.6 x 31.6 x 4.8 cm)
- Operating temperature: 32°F - 104°F (0°C - 40°C)
- PoE Power Budget: 120 W
- Max power consumption: 200 W
- Max weight: 8.7 lbs (3.9 kg)
- Compliance: FCC Class A, IC, CE, UL Listed
- Requirements:
- Power: Standard electrical outlet
- Network: Ethernet connection to broadband Internet
Technical Specifications
The Alarm.com Pro Series CSVR with 16 PoE ports is a commercial stream video recorder deigned to be integrated into the Alarm.com for Business platform.
Supports 24/7 recording and automatically tags, organizes and integrates analytics onto video footage for events like door openings, zone intrusion, alarm triggers and more-- ensuring smooth, efficient footage review and management directly on the CSVR, or from the Alarm.com app or website; any time, from anywhere on earth!
Supports up to 16 camera streams up to 4MP (Alarm.com Pro Series cameras required). Built-in PoE Switch supports direct camera connection for no-hassle installation and camera management. Supports video output up to 2x 4K monitors, and USB 3.0 output ensures rapid video clip exports for external storage solutions.
Kit includes AC power cord, ethernet cable for router connection and optional rack mounting ears. 2x SATA bays allows users to install security-rated HDDs up to 16TB (sold separately).
ADC-CSVR2016P-0X0TB Specs and Features
- Recording channels: Up to 16 cameras
- Video input: 16 channels @ up to 4MP (2688 x 1520)
- Local display capabilities: Live View, Playback, Clip Export, Archive Export
- Local display output: 2x HD Out, up to 3840 x 2160
- Local clip export: 1x USB 3.0 (front), 2x USB 3.0 (rear)
- Recommended Alarm.com cameras: VC827P, VC847PF, VC728PF, VC838PF, VC726, VC736, VC826, VC836, V523 (via ethernet)
- Ethernet connectivity: 1x Client RJ45 10/100/1000 Mbps, 8x Camera PoE 802.3af RJ45 10/100 Mbps
- Internal storage: Up to 2x 3.5” HDD, SATA 6 Gb/s, 16TB each
- Dimensions (WxDxH): 14.4 x 12.5 x 1.9” (36.6 x 31.6 x 4.8 cm)
- Operating temperature: 32°F - 104°F (0°C - 40°C)
- PoE Power Budget: 120 W
- Max power consumption: 200 W
- Max weight: 8.7 lbs (3.9 kg)
- Compliance: FCC Class A, IC, CE, UL Listed
- Requirements:
- Power: Standard electrical outlet
- Network: Ethernet connection to broadband Internet
