About the product

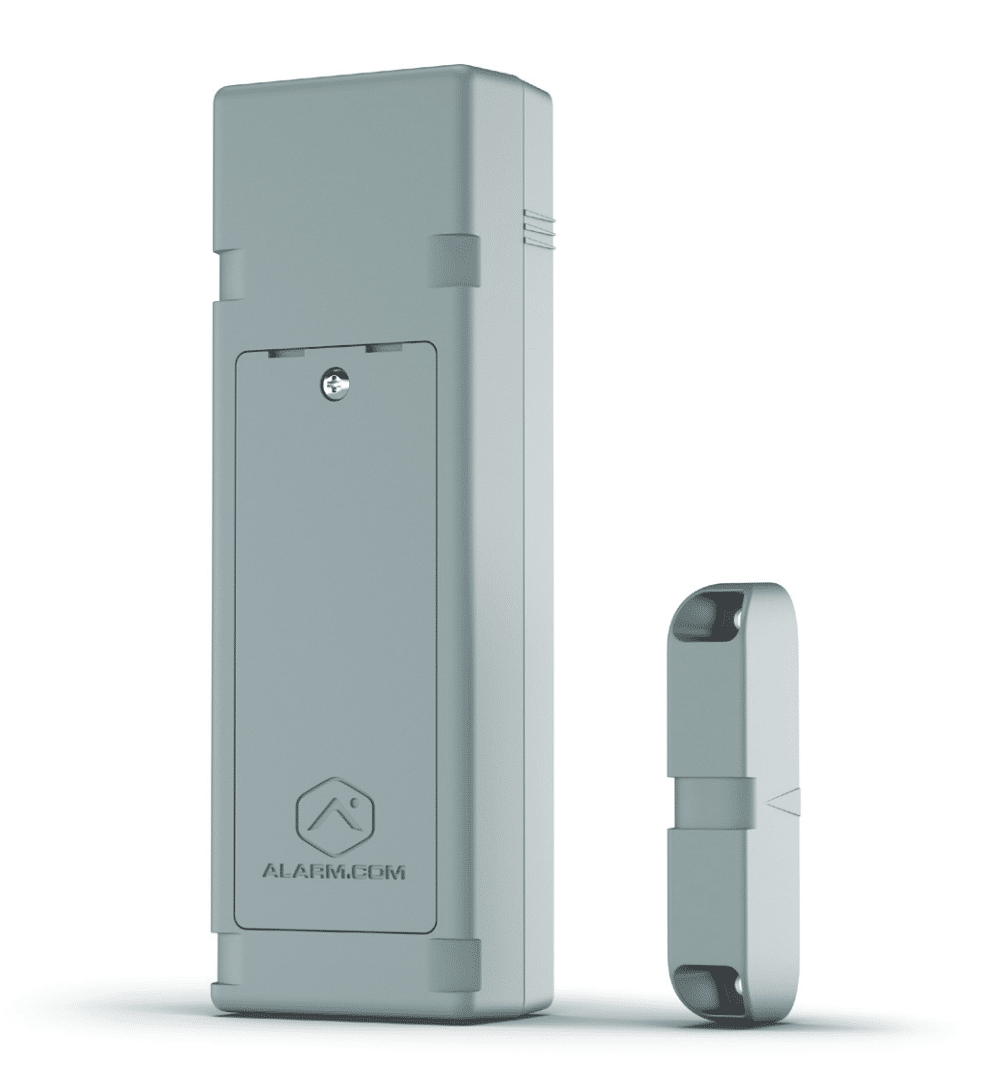

Alarm.com ADC-FLEX-100-AT Flex IO™ sensor (ADC-FLEX-100) Overview
The Alarm.com Flex IO™ sensor enables new levels of flexibility for monitoring valuable property and assets anywhere that LTE connectivity is available. Whether used with a backyard gate or a remote storage unit, the Alarm.com Flex IO™ sensor empowers users to keep an eye on what matters most. It can be used with the included magnet to monitor doors, gates, and other entryways. It also comes equipped with input and output options for integrating compatible devices that lack long-range connectivity.
Alarm.com ADC-FLEX-100-AT Flex IO™ sensor Features
- Detect open/close using a magnetic reed switch
- Detect state change for third-party devices using Loop Input
- Change state of third-party and device using Relay Output (requires DC power to support always-on cellular connection)
Alarm.com ADC-FLEX-100-AT Flex IO™ sensor Includes
- Optional EOL (end of the line) resistor to detect cut wires. EOL resistor can be 300 k? or higher. Normally Open configuration is preferred for low-power usage.
- Optional mount tamper and battery door tamper alerts
- Multiple mounting options, including screws or zip ties.
- Multiple carrier options:
- Verizon (US only)
- AT&T (US and Canada)
Alarm.com ADC-FLEX-100-AT Flex IO™ sensor Specifications
- Ingress Protection: IP56
- Temperature: Battery life will be optimal between temperatures of 32°F to 140°F (0°C to 60°C), though the device can operate from -40°F to 140°F (-40°C to 60°C)
- Reed Switches: 3 unique reed switch locations to choose from that can be activated with the included magnet.
- Loop Input:
- The Alarm.com Flex IO™ sensor can be powered by battery or external power.
- Dry Contact, Normally Open (NO), or Normally Closed (NC).
- The optional EOL resistor can be 300 k? or higher.
- Relay Output
- If used, the Alarm.com Flex IO™ sensor must be externally powered (not compatible with battery power).
- Up to 24 V (AC or DC), 40 mA max current.
- Can be used only for control lines/dry contact.
- *Caution: Can never be connected directly to control electrical loads. This will damage the device.
- Dimensions
- Main unit: 6.8 x 2.2 x 1.3"" (17.3 x 5.6 x 3.3 cm).
- Magnet: 3.1 x 0.68 x 0.87"" (7.9 x 1.7 x 2.2 cm).
- Power:
- Works with DC-wired power or battery power (battery backup recommended for wired installations).
- 6 to 15 VDC supply. Minimum 1 A.
- Battery Power
- Four 1.5 V AA lithium batteries (iron disulfide).
- 2+ years of battery life, depending on battery chemistry and operating temperature.
Technical Specifications
Alarm.com ADC-FLEX-100-AT Flex IO™ sensor (ADC-FLEX-100) Overview
The Alarm.com Flex IO™ sensor enables new levels of flexibility for monitoring valuable property and assets anywhere that LTE connectivity is available. Whether used with a backyard gate or a remote storage unit, the Alarm.com Flex IO™ sensor empowers users to keep an eye on what matters most. It can be used with the included magnet to monitor doors, gates, and other entryways. It also comes equipped with input and output options for integrating compatible devices that lack long-range connectivity.
Alarm.com ADC-FLEX-100-AT Flex IO™ sensor Features
- Detect open/close using a magnetic reed switch
- Detect state change for third-party devices using Loop Input
- Change state of third-party and device using Relay Output (requires DC power to support always-on cellular connection)
Alarm.com ADC-FLEX-100-AT Flex IO™ sensor Includes
- Optional EOL (end of the line) resistor to detect cut wires. EOL resistor can be 300 k? or higher. Normally Open configuration is preferred for low-power usage.
- Optional mount tamper and battery door tamper alerts
- Multiple mounting options, including screws or zip ties.
- Multiple carrier options:
- Verizon (US only)
- AT&T (US and Canada)
Alarm.com ADC-FLEX-100-AT Flex IO™ sensor Specifications
- Ingress Protection: IP56
- Temperature: Battery life will be optimal between temperatures of 32°F to 140°F (0°C to 60°C), though the device can operate from -40°F to 140°F (-40°C to 60°C)
- Reed Switches: 3 unique reed switch locations to choose from that can be activated with the included magnet.
- Loop Input:
- The Alarm.com Flex IO™ sensor can be powered by battery or external power.
- Dry Contact, Normally Open (NO), or Normally Closed (NC).
- The optional EOL resistor can be 300 k? or higher.
- Relay Output
- If used, the Alarm.com Flex IO™ sensor must be externally powered (not compatible with battery power).
- Up to 24 V (AC or DC), 40 mA max current.
- Can be used only for control lines/dry contact.
- *Caution: Can never be connected directly to control electrical loads. This will damage the device.
- Dimensions
- Main unit: 6.8 x 2.2 x 1.3"" (17.3 x 5.6 x 3.3 cm).
- Magnet: 3.1 x 0.68 x 0.87"" (7.9 x 1.7 x 2.2 cm).
- Power:
- Works with DC-wired power or battery power (battery backup recommended for wired installations).
- 6 to 15 VDC supply. Minimum 1 A.
- Battery Power
- Four 1.5 V AA lithium batteries (iron disulfide).
- 2+ years of battery life, depending on battery chemistry and operating temperature.
