About the product

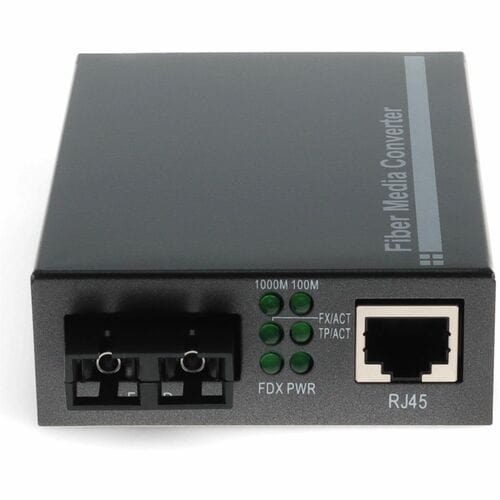

This is a media converter that converts a 10/100/1000Base-TX(RJ-45) to 1000Base-LX(SC) via a 1310nm single-mode fiber (SMF) SC connector, which allows distance reach up to 20km. This provides a cost effective conversion from 10/100/1000Base-TX(RJ-45) to 1000Base-LX fiber, while extending the network reach beyond the 100m reach limitation of copper. Our media converters are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.
- Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over optical fiber cable
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
Technical Specifications
| Power Description | |
| Input Voltage | 5 V DC |
| Power Source | Power Adapter |
| Network & Communication | |
| Network Technology | 1000Base-LX |
| 10/100/1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SC Ports | 1 |
| Total Number of Ports | 2 |
| Miscellaneous | |
| Application/Usage | Network |
| Environmentally Friendly | Yes |
| TAA Compliant | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 3.20 oz (90.72 g) |
| Height | 1" (25.40 mm) |
| Width | 3" (76.20 mm) |
| Depth | 4" (101.60 mm) |
| Media & Performance | |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 0.05 mil (0 mm) |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | ADD-GMC-LX-2SC |
| Manufacturer Website Address | http://www.addoncomputer.com |
| Packaged Quantity | 1 |
| Manufacturer | AddOn |
| Product Model | ADD-GMC-LX-2SC |
| Product Name | 10/100/1000Base-TX(RJ-45) to 1000Base-LX(SC) SMF 1310nm 20km Media Converter |
| Brand Name | AddOn |
