About the product

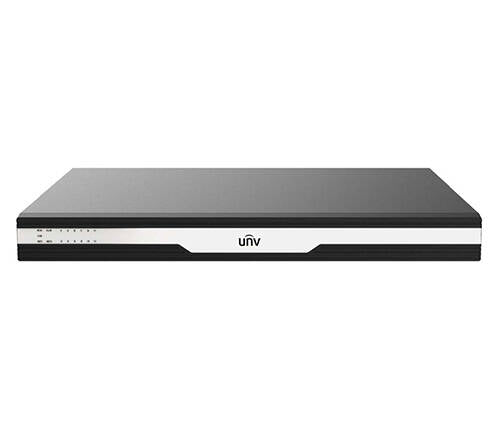

The Uniview ADU Series, 6-channel high-definition video decoder with 2 DVI-D and 2 HDMI outputs allows for 6 additional encoded high-definition video inputs of up to 12MP. Supports 4K output at 30 FPS and provides an extensive range of video-out options, including 2x HDMI, 2x DVI-D and multicast support. Can be integrated into video walls/screens for live surveillance or security offices.
Supports decoding both SD and HD video, including other camera brands that support ONVIF.
ADU8706-E-V3 Specs and Features
- Input: 4-ch HDMI (video only) HDMI input resolution
- 4K interface:
- 3840*2160(4K)@30Hz
- 1920*1080(1080P)@60Hz
- 1920*1080(1080P)@50Hz
- 1920*1080(1080P)@30Hz, 1600*1200(UXGA)@60Hz
- 1440*900(WXGA)@60Hz
- 1280*1024(SXGA)@60Hz
- 1280*720(720P)@60Hz
- 1280*720(720P)@50Hz
- 1024*768(XGA)@60Hz
- (4K interface: 1, 2)
- 1080P interface:
- 1920*1080(1080P)@60Hz
- 1920*1080(1080P)@50Hz
- 1920*1080(1080P)@30Hz
- 1600*1200(UXGA)@60Hz
- 1440*900(WXGA)@60Hz
- 1280*1024(SXGA)@60Hz
- 1280*720(720P)@60Hz
- 1280*720(720P)@50Hz
- 1024*768(XGA)@60Hz
- (1080P interface: 3, 4)
- 4K interface:
- HDMI input resolution
- 4K interface:
- 3840*2160(4K)@30Hz
- 1920*1080(1080P)@60Hz
- 1920*1080(1080P)@50Hz
- 1920*1080(1080P)@30Hz
- 1600*1200(UXGA)@60Hz, 1440*900(WXGA)@60Hz
- 1280*1024(SXGA)@60Hz
- 1280*720(720P)@60Hz
- 1280*720(720P)@50Hz
- 1024*768(XGA)@60Hz
- (4K interface: 1, 2)
- 1080P interface:
- 1920*1080(1080P)@60Hz
- 1920*1080(1080P)@50Hz
- 1920*1080(1080P)@30Hz
- 1600*1200(UXGA)@60Hz
- 1440*900(WXGA)@60Hz
- 1280*1024(SXGA)@60Hz
- 1280*720(720P)@60Hz
- 1280*720(720P)@50Hz
- 1024*768(XGA)@60Hz (1080P interface: 3, 4)
- 4K interface:
- Decoding Format: H.265, H.264, MPEG4
- Decoding Capability:
- 8*12MP@20Hz
- 8*4K@30Hz
- 32*1080P@30Hz
- 72*720P@30Hz
- Audio input: 1x terminal audio input (reserved), 1x 3.5mm audio input (reserved)
- Audio Output: 1x terminal audio output (reserved), 3.5mm audio output (dual channel)
- Alarm input: 4 x terminal alarm input (reserved)
- Alarm output: 4 x terminal alarm output (reserved)
- Serial port: 1 x RS232, 1 x RS485
- Ethernet: 2 x GE port, RJ45 interface, half-duplex/full-duplex Ethernet, 10M/100M/1000M Base-T adaptive
- USB: 2 x USB3.0
- Dimensions (WxHxD): 440mm x 44mm x 339 mm
- Weight (kg): 3.83
- Max. power consumption (W): 32
- Power supply: 100V to 240V AC; 50Hz/60Hz
- Operating temperature: -10°C to 55°C
- Operating humidity: 10% to 90% RH, non-condensing
Technical Specifications
The Uniview ADU Series, 6-channel high-definition video decoder with 2 DVI-D and 2 HDMI outputs allows for 6 additional encoded high-definition video inputs of up to 12MP. Supports 4K output at 30 FPS and provides an extensive range of video-out options, including 2x HDMI, 2x DVI-D and multicast support. Can be integrated into video walls/screens for live surveillance or security offices.
Supports decoding both SD and HD video, including other camera brands that support ONVIF.
ADU8706-E-V3 Specs and Features
- Input: 4-ch HDMI (video only) HDMI input resolution
- 4K interface:
- 3840*2160(4K)@30Hz
- 1920*1080(1080P)@60Hz
- 1920*1080(1080P)@50Hz
- 1920*1080(1080P)@30Hz, 1600*1200(UXGA)@60Hz
- 1440*900(WXGA)@60Hz
- 1280*1024(SXGA)@60Hz
- 1280*720(720P)@60Hz
- 1280*720(720P)@50Hz
- 1024*768(XGA)@60Hz
- (4K interface: 1, 2)
- 1080P interface:
- 1920*1080(1080P)@60Hz
- 1920*1080(1080P)@50Hz
- 1920*1080(1080P)@30Hz
- 1600*1200(UXGA)@60Hz
- 1440*900(WXGA)@60Hz
- 1280*1024(SXGA)@60Hz
- 1280*720(720P)@60Hz
- 1280*720(720P)@50Hz
- 1024*768(XGA)@60Hz
- (1080P interface: 3, 4)
- 4K interface:
- HDMI input resolution
- 4K interface:
- 3840*2160(4K)@30Hz
- 1920*1080(1080P)@60Hz
- 1920*1080(1080P)@50Hz
- 1920*1080(1080P)@30Hz
- 1600*1200(UXGA)@60Hz, 1440*900(WXGA)@60Hz
- 1280*1024(SXGA)@60Hz
- 1280*720(720P)@60Hz
- 1280*720(720P)@50Hz
- 1024*768(XGA)@60Hz
- (4K interface: 1, 2)
- 1080P interface:
- 1920*1080(1080P)@60Hz
- 1920*1080(1080P)@50Hz
- 1920*1080(1080P)@30Hz
- 1600*1200(UXGA)@60Hz
- 1440*900(WXGA)@60Hz
- 1280*1024(SXGA)@60Hz
- 1280*720(720P)@60Hz
- 1280*720(720P)@50Hz
- 1024*768(XGA)@60Hz (1080P interface: 3, 4)
- 4K interface:
- Decoding Format: H.265, H.264, MPEG4
- Decoding Capability:
- 8*12MP@20Hz
- 8*4K@30Hz
- 32*1080P@30Hz
- 72*720P@30Hz
- Audio input: 1x terminal audio input (reserved), 1x 3.5mm audio input (reserved)
- Audio Output: 1x terminal audio output (reserved), 3.5mm audio output (dual channel)
- Alarm input: 4 x terminal alarm input (reserved)
- Alarm output: 4 x terminal alarm output (reserved)
- Serial port: 1 x RS232, 1 x RS485
- Ethernet: 2 x GE port, RJ45 interface, half-duplex/full-duplex Ethernet, 10M/100M/1000M Base-T adaptive
- USB: 2 x USB3.0
- Dimensions (WxHxD): 440mm x 44mm x 339 mm
- Weight (kg): 3.83
- Max. power consumption (W): 32
- Power supply: 100V to 240V AC; 50Hz/60Hz
- Operating temperature: -10°C to 55°C
- Operating humidity: 10% to 90% RH, non-condensing
