About the product

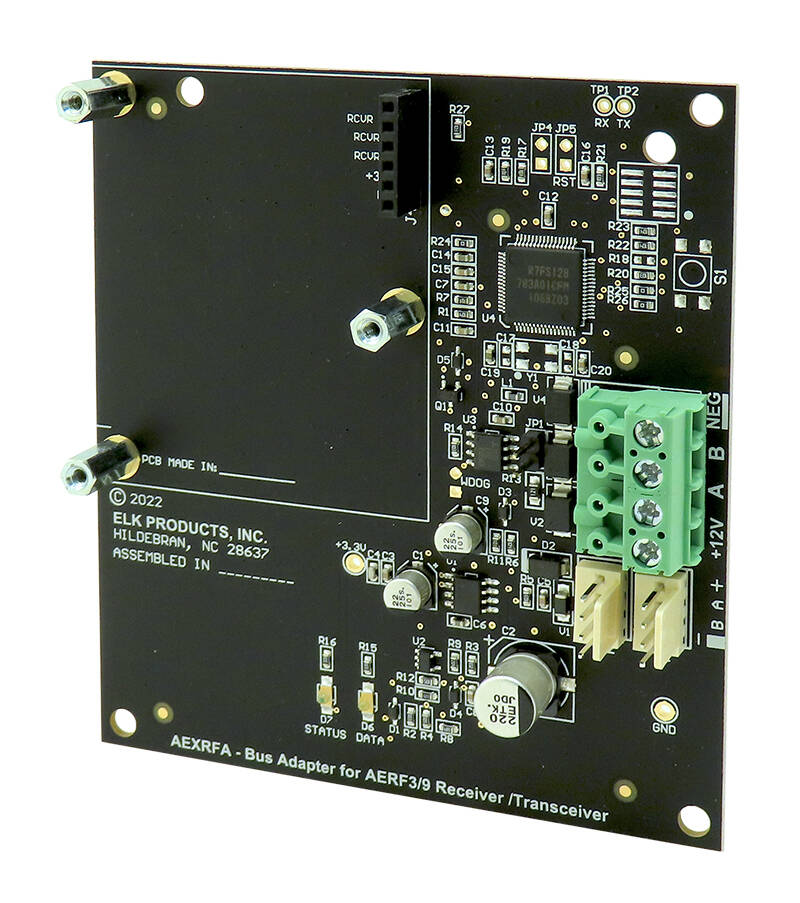

The ELK-AEXRFA is an adapter for connecting an Alarm Engine RF receiver/transceiver to the Alarm Engine RS-485 data bus. It accepts an ELK-AERF3 319.5MHz receiver or an ELK-AERF9 Two-Way transceiver. Up to 4 AERFA adapters may be connected to the data bus.
Elk Alarm Engine Bus Adapter for RF Receiver/Transceiver Features:
- Accepts one Alarm Engine wireless receiver/transceiver
- Compatible with ELK-AERF3 or ELK-AERF9
- Connects to the data bus of the E27 control board
Elk Alarm Engine Bus Adapter for RF Receiver/Transceiver Specifications:
- Operating Power: 12 VDC
- Current draw: 27mA (board only), 79mA (with
AERF3 installed), 112mA (with AERF9 installed) - Board Size: 3.5"" x 3.94"" x 0.56
- Housing Size: 4.25"" x 6.36"" x 2.13
Technical Specifications
The ELK-AEXRFA is an adapter for connecting an Alarm Engine RF receiver/transceiver to the Alarm Engine RS-485 data bus. It accepts an ELK-AERF3 319.5MHz receiver or an ELK-AERF9 Two-Way transceiver. Up to 4 AERFA adapters may be connected to the data bus.
Elk Alarm Engine Bus Adapter for RF Receiver/Transceiver Features:
- Accepts one Alarm Engine wireless receiver/transceiver
- Compatible with ELK-AERF3 or ELK-AERF9
- Connects to the data bus of the E27 control board
Elk Alarm Engine Bus Adapter for RF Receiver/Transceiver Specifications:
- Operating Power: 12 VDC
- Current draw: 27mA (board only), 79mA (with
AERF3 installed), 112mA (with AERF9 installed) - Board Size: 3.5"" x 3.94"" x 0.56
- Housing Size: 4.25"" x 6.36"" x 2.13
