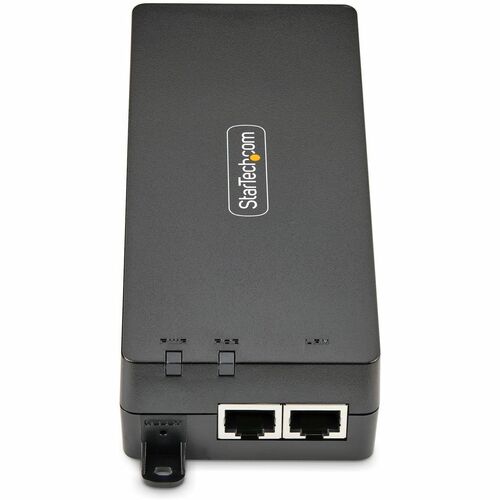

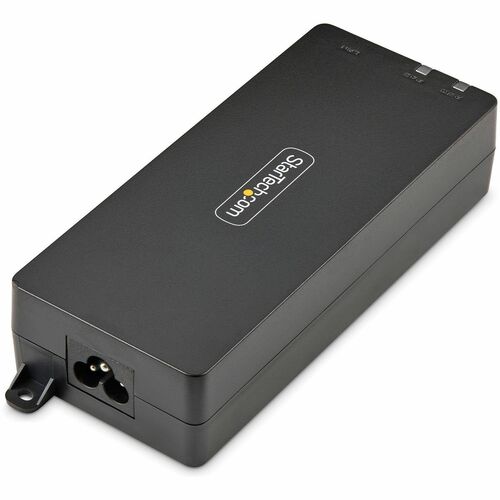

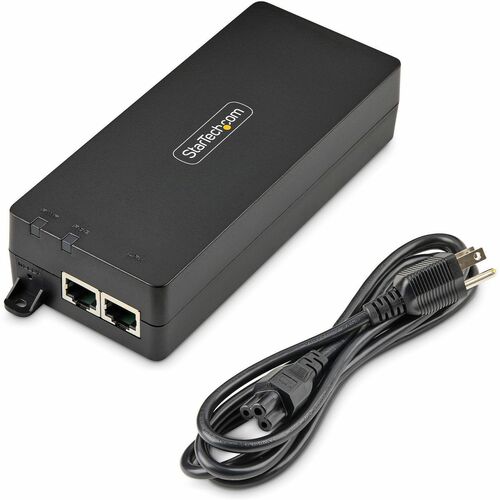

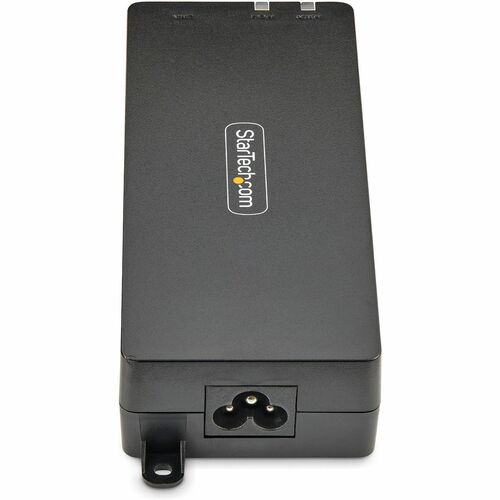

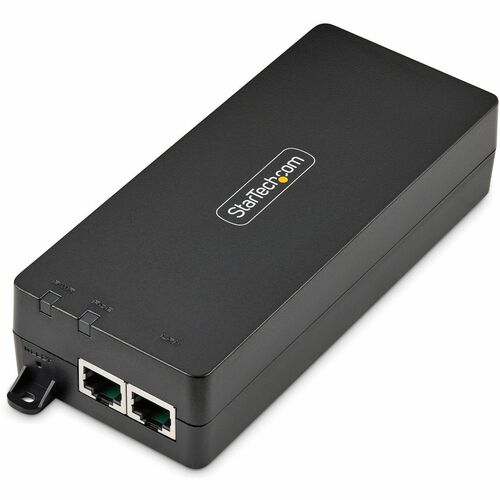

1-PORT POE++ INJECTOR 90W - 802.3AF/AT 10/100/1000M/10G

This 1-port multi-speed PoE++ Injector serves as a Power Sourcing Equipment (PSE) device and enables Ethernet speeds of 10/100 Mbps/1000Mbps and 1/2.5/5/10Gbps. This TAA-compliant mid-span inline injector can transmit network data and power up to 328ft (100m) for single Powered Devices (PD).

Versatile PoE Injector

Single port PoE+ injector supports the IEEE 802.3af/at & 802.3bt PSE standards, and delivers up to 90W output (56V, 1.7A). Connect a remote PoE device to a network at a location where there is no power source, but an Ethernet cable already exists. This includes access points, IP cameras, VoIP phone systems, IPTV and access controls. The flexible design of the PoE injector allows for either desktop or surface-mount use.

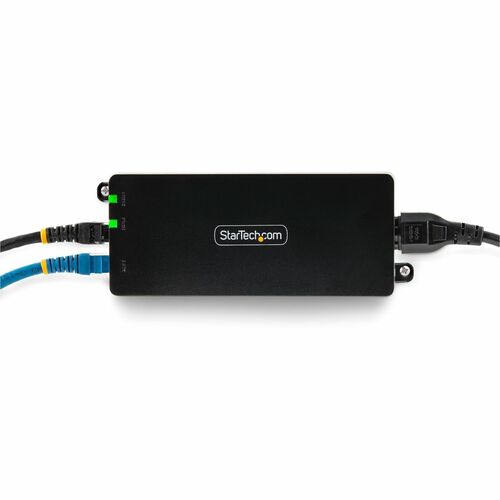

Streamlined Cable Management

With integrated wall-mounting ears, this Gigabit PoE++ injector offers convenient and versatile installation options. All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (4x2.3x1.3-inch / 100x58.4x33.4mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.

• 10G POE++ INJECTOR: Single-port TAA-compliant PoE midspan injector supports up to 10Gbps and 90W of power (PoE/PoE+/PoE++); Features OVP, OCP, and SCP protection for enhanced reliability and durability, and a fan-less design to ensure silent operation
• MULTIGIGABIT 90W DATA & POWER: Auto-negotiation between 10/100/1000Mbps/2.5G/5G/10G; Delivers 10Gbps data & up to 90W of power to a single powered device up to 262ft (80m) away, up to 5Gbps and 90W of power up to 328ft (100m)
• HASSLE-FREE INSTALLATION: Internal power supply and integrated wall-mounting ears with front-facing screw holes offer convenient, versatile installation, especially in hard-to-reach areas; Cables can be routed from one side for better cable management
• APPLICATIONS: Provides more power and bandwidth over a single RJ45 connection to demanding PoE devices such as high resolution IP cameras and enterprise grade Wi-Fi 6/6E or 7 access points (APs); Ideal for remote IP devices without available power outlets
• TECH SPECS: RJ45 Shielded Socket (data/data+power); 90W max output; 54V 1.7A output; Compliant with IEEE 802.3af/at & IEEE 802.3bt; 10/100/1000 Mbps & 1/2.5/5Gbps; Dimensions 4x2.3x1.3-inch (100x58.4x33.4mm)
