About the product
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX desktop motherboard
- HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- With 4 USB 2.0 ports, connect devices for a quick data movement
- Supported 0 RAID levels provide data reliability and fault tolerance
- Compatible Core i9 processor lets you perform all your computational tasks at a swift pace
Technical Specifications
| Network & Communication | |
| Gigabit Ethernet | Yes |
| Video | |
| Graphics Controller Model | UHD Graphics |
| Onboard Video | CPU Dependent Video |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| China Restriction of Hazardous Substances (China RoHS) | |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" (304.80 mm) |
| Depth | 9.61" (244 mm) |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 2.0 Ports | 2 |
| Number of M.2 Interfaces | 1 |
| I/O Controller | |
| RAID Levels | 0 |
| 10 | |
| 5 | |
| 1 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Memory | |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM |
| UDIMM | |
| Memory Speed Supported | 3200 MHz |
| General Information | |

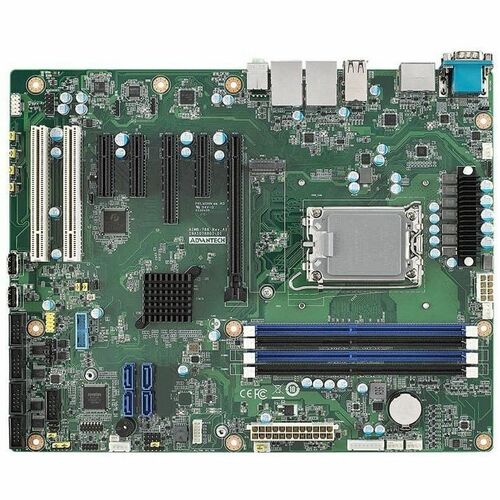

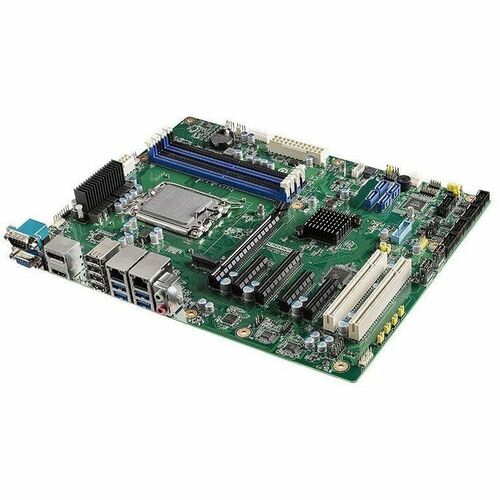

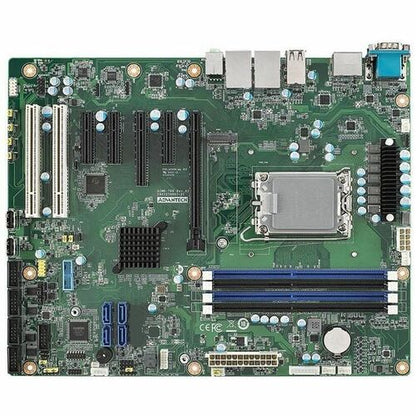

| Product Type | Desktop Motherboard |
| Manufacturer Part Number | AIMB-788G2-00A1U |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | AIMB-788 |
| Product Name | AIMB-788 Desktop Motherboard |
| Brand Name | Advantech |
| I/O Expansions | |
| Number of PCI Express x4 Slots | 3 |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| PCI Express Standard | PCI Express 4.0 |
| PCI Express 3.0 | |
| Total Number of PCI Express Slots | 7 |
| Total Number of Expansion Slots | 7 |
| Interfaces/Ports | |
| HDMI | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| DisplayPort | Yes |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Processor & Chipset | |
| Processor Supported | Core i3 |
| Core i9 | |
| Core i5 | |
| Core i7 | |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Chipset Manufacturer | Intel |
| Chipset Model | Q670E |
| Processor Generation Supported | 12th Gen |
| 13th Gen |
