Amer Mounts Long Articulating Monitor Arm (Clamp B

Name: Amer Mounts Long Articulating Monitor Arm (Clamp B
Brand: Amer Networks
SKU: AC797077
Price: 224.00 CAD
Availability: OutOfStock

$224.00 CAD

~~$250.88 CAD~~ $224.00 CAD

-10% OFF Ask for quote

Shipping calculated at checkout.

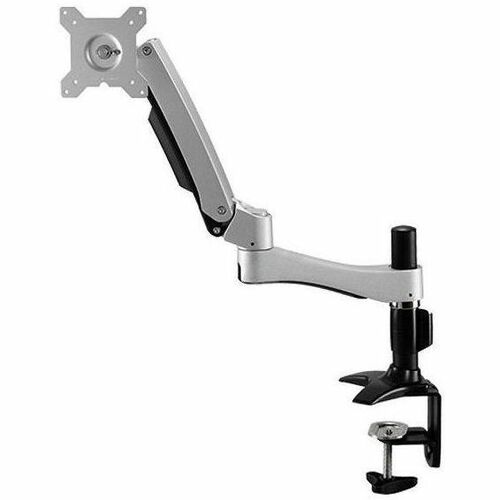

Amer Mounts Long Articulating Monitor Arm (Clamp Base) Supports Flat Panel Size up to 32" AMR1ACL - Single articulating LCD/LED monitor mount with extended arm allowing greater range of motion. Supports up to 32" monitors with VESA 75/100mm and 22 lbs. Utilizes Clamp Base system to secure the mount to a desk.

VPN:AMR1ACL SKU:AC797077 UPC: 140A7Y

Each monitor can be placed at a different height to accommodate different sized monitorsThe monitor has 360º rotation, meaning landscape, portrait, or anything in-between.Tilt and Swivel and Rotation is provided in 5 places ensuring maximum adjustability:

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

Amer Mounts Long Articulating Monitor Arm (Clamp B

About the product

This incredibly versatile product supports up to 32 monitors with a maximum individual weight of 22.1lbs. Not only will this strong and sturdy mount have no trouble holding a VESA certified 75×75 or 100×100 monitors, (fitting the above criteria), it is also extremely adjustable! Amer's articulating mounts support a wide variety of monitor sizes, including : Up to 32 wide screen (16:9) Up to 32 Ultra wide screen (21:9) Up to 32 Curved Monitor (1800R)Each monitor can be placed at a different height to accommodate different sized monitorsThe monitor has 360º rotation, meaning landscape, portrait, or anything in-between

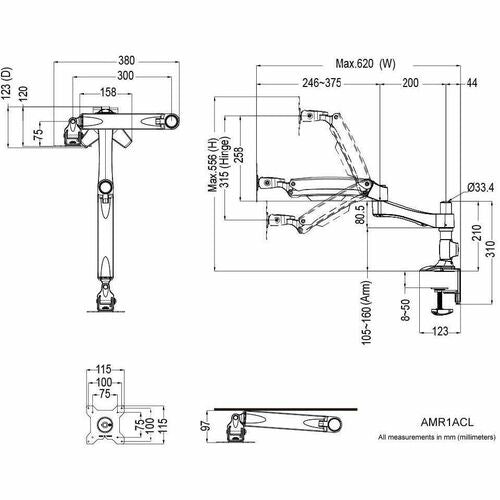

Tilt and Swivel and Rotation is provided in 5 places ensuring maximum adjustability:Swivel in the hinge: +/- 90ºTilt in the hinge: +90º/-20ºTilt in the arm: +65º/-30ºRotation about the pole and main arm: 360ºHeight adjustable, with a maximum height of 19.63 (from the desk to the centre of the mounting device)Extendable with a max horizontal extension of 24.4 from the rear edge

Technical Specifications

Miscellaneous
Additional Information	Easy Install +90/- 20 degree tilt Arms Rotate 360 Degrees About the Central Pole
Application/Usage	Desk
Country of Origin	Taiwan
TAA Compliant	Yes
General Information
Product Type	Mounting Arm
Manufacturer Part Number	AMR1ACL
Manufacturer Website Address	http://www.amermounts.com
Manufacturer	Amer Networks, Inc
Product Name	Long Articulating Monitor Arm (Clamp Base)
Brand Name	Amer Mounts
Physical Characteristics
Form Factor	Desk
Height	21.90" (556.26 mm)
VESA Mount Compatible	Yes
Mounting Pattern	75 x 75
	100 x 100
Product Color	White
Product Information
Device Supported	Monitor
	Curved Screen Display
	Flat Panel Display
	LCD Display
	LED Display
Features	Tilt
	Sturdy
	Smart Torque Adjustment
	Grommet
	Extendable
	Cable Management
	Articulating
	Adjustable
	360° Rotation
	+/- 90° Swivel
	-30° to 65° Vertical Tilt
	-20° to 90° Tilt
	Rotate
Maximum Load Capacity	22.10 lb (10024.39 g)
Orientation	Landscape/Portrait
Minimum Screen Size Supported	15" (381 mm)
Maximum Screen Size Supported	32" (812.80 mm)
Maximum Adjustable Height	19.63" (498.60 mm)
Height Adjustable	Yes
