About the product

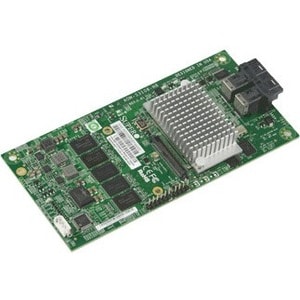

Supermicro Low Profile 12Gb/s Eight-Port SAS Internal RAID Adapter
The Supermicro MegaRAID Low Profile AOM-S3108-H8 features 8 internal SAS connectors for high-performance storage connectivity. This RAID card is built on the LSI Logic SAS IC technology and proven MegaRAID technology. It addresses the growing demand for increased data throughput and scalability requirement across the enterprise-class server platforms. With high performance RAID architecture, including hardware RAID 5 and 6, this new RAID controller card supports high capacity storage applications. It delivers cost effective storage solutions using SATA drives and maximum performance and reliability with SAS drives.
With the option of supercar/TFM unit, this provides cached data protection and allows system builders to protect cached data even during the most catastrophic system failures.
Use a LSI SAS 3108 I/O processor for optimum RAID performance and a PCI Express host interface for increased bandwidth. This RAID adapter delivers an intelligent and robust RAID solution.
The Supermicro MegaRAID Low Profile AOM-S3108-H8 features 8 internal SAS connectors for high-performance storage connectivity. This RAID card is built on the LSI Logic SAS IC technology and proven MegaRAID technology. It addresses the growing demand for increased data throughput and scalability requirement across the enterprise-class server platforms. With high performance RAID architecture, including hardware RAID 5 and 6, this new RAID controller card supports high capacity storage applications. It delivers cost effective storage solutions using SATA drives and maximum performance and reliability with SAS drives.
With the option of supercar/TFM unit, this provides cached data protection and allows system builders to protect cached data even during the most catastrophic system failures.
Use a LSI SAS 3108 I/O processor for optimum RAID performance and a PCI Express host interface for increased bandwidth. This RAID adapter delivers an intelligent and robust RAID solution.
Technical Specifications
| Memory | |
| Cache Memory | 2 GB |
| Interfaces/Ports | |
| Total Number of SAS Ports | 8 |
| Number of SAS Ports (Internal) | 8 |
| Miscellaneous | |
| Platform Supported | PC |
| Linux | |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Height | 3" (76.20 mm) |
| Depth | 6" (152.40 mm) |
| General Information | |
| Product Type | SAS Controller |
| Manufacturer Part Number | AOM-S3108-H8 |
| Manufacturer Website Address | http://www.supermicro.com |
| Packaged Quantity | 1 |
| Manufacturer | Supermicro Computer, Inc |
| Product Name | Low Profile 12Gb/s Eight-Port SAS Internal RAID Adapter |
| Brand Name | Supermicro |
| Technical Information | |
| Host Interface | PCI Express |
| RAID Levels | 0 |
| 1 | |
| 10 | |
| 5 | |
| 6 | |
| 60 | |
| 50 | |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
