About the product
Priced for the mass-market, this enterprise-grade access point is ideal for budget-conscious enterprises who do not want to sacrifice performance.
Despite the exponential growth of users, BYOD devices, IoT, high-bandwidth applications and security threats straining the infrastructure, the AP305CX combines performance, security services and insightful ML/AI management capabilities to deliver an enterprise class solution at a value price.
Technical Specifications
| Primary Information | |

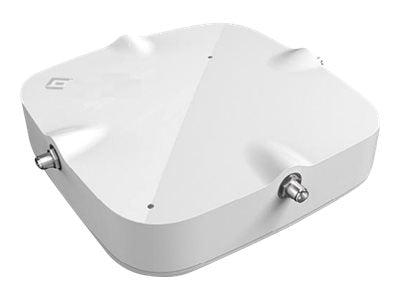

| Product Description: | Extreme Networks ExtremeWireless AP305CX - wireless access point - Bluetooth, Wi-Fi 6 |
| Device Type: | Wireless access point |
| Form Factor: | External - indoor |
| Localization: | Canada |
| Data Link Protocol: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band: | 2.4 GHz, 5 GHz |
| Power Over Ethernet (PoE) Supported: | PoE |
| Dimensions (WxDxH): | 5.8 in x 5.8 in x 1.5 in |
| Weight: | 13.4 oz |
| Manufacturer Warranty: | Limited lifetime warranty |
| General | |
| Device Type: | Wireless access point |
| Ruggedized Design: | Indoor |
| Width: | 5.8 in |
| Depth: | 5.8 in |
| Height: | 1.5 in |
| Weight: | 13.4 oz |
| Localization: | Canada |
| Networking | |
| Form Factor: | External |
| Connectivity Technology: | Wireless |
| Line Coding Format: | 256 QAM, 1024 QAM |
| Data Link Protocol: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6) |
| Spread Spectrum Method: | OFDM, DSSS |
| Frequency Band: | 2.4 GHz, 5 GHz |
| Features: | Direct Sequence Spread Spectrum (DSSS), WPA encryption, packet aggregation A-MPDU, packet aggregation A-MSDU, dual band, Orthogonal Frequency Division Multiplexing (OFDM), 2x2:2 MU-MIMO technology, security slot (Kensington security lock compatible) |
| Encryption Algorithm: | WPA3 |
| Compliant Standards: | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.15.4, IEEE 802.11ac Wave 2, IEEE 802.11ax |
| Antenna | |
| Antenna: | External detachable |
| Internet of Things (IoT) | |
| Communications Technology: | Bluetooth Low Energy (LE), Zigbee |
| Expansion / Connectivity | |
| Interfaces: | 1 x 1000Base-T (PoE) - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 4 x antenna - RP-SMA |
| Miscellaneous | |
| Compliant Standards: | IEC 60601-1-2, ICES-003 Class B, IEC 60950-1, EN 60950-1, AS/NZS 4268, EN 60601-1-2, EN 50581:2012, EN 62479:2010, RoHS 2011/65/EU, EN 50385, EN 61000-3-3:2013, EN 62311:2008, EN 61000-3-2:2014, FCC CFR47 Part 15 B Class B, RSS-247, EN 55024:2010+A1:2015, EN 55011:2009+A1:2010, CISPR 32, FCC Subpart C 15.247, FCC Subpart E 15.407, EN 60601-1-2:2015, EN 300 328 V2.1.1, EN 55032:2015 Class B, EN 301 489-1 V2.1.1, EN 301 489-17 V3.1.1, EN 301 489-3 V2.1.1, EN 300 440 V2.1.1, IEC 62368, EN 62368, AN/NZS 60950.1, EN 301 893 V2.1.1, Intertek |
