About the product

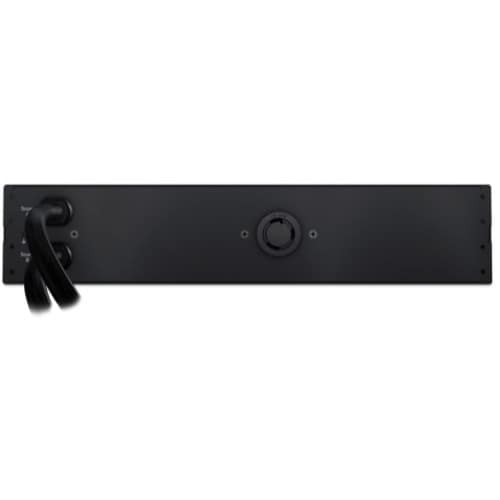

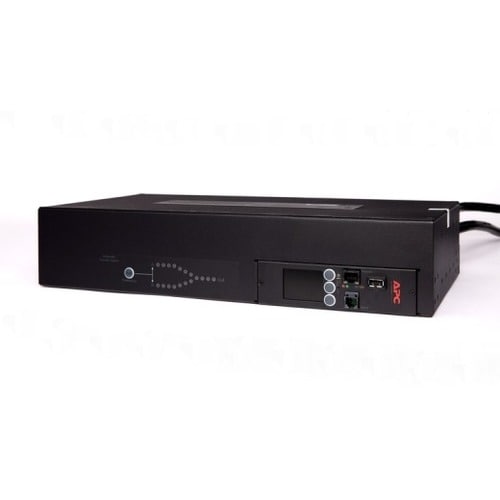

APC Rack Automatic Transfer Switches (rack ATS) provide reliable, redundant rack mount power to single-corded equipment. The rack ATS has dual input power cords supplying power to the connected load. If the primary power source becomes unavailable, the rack ATS will seamlessly source power from the secondary source without interrupting critical loads. The Rack ATS has built-in network connectivity, which allows for remote management via Web, SNMP, or Telnet interfaces.
Technical Specifications
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Current | 30 A |
| Technical Information | |
| Protection Type | Over Current |
| Receptacles | 1 x NEMA L6-30R |
| Plug/Connector Type | NEMA L6-30P |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | Automatic Transfer Switch |
| Manufacturer Part Number | AP4431 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Rack ATS, 208V, 30A, (2) L6-30P in, (1) L6-30R Out |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 14.30 lb (6486.37 g) |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.47" (88.14 mm) |
| Width | 17" (431.80 mm) |
| Depth | 9.30" (236.22 mm) |
| Product Color | Black |
| Color Family | Black |
