About the product

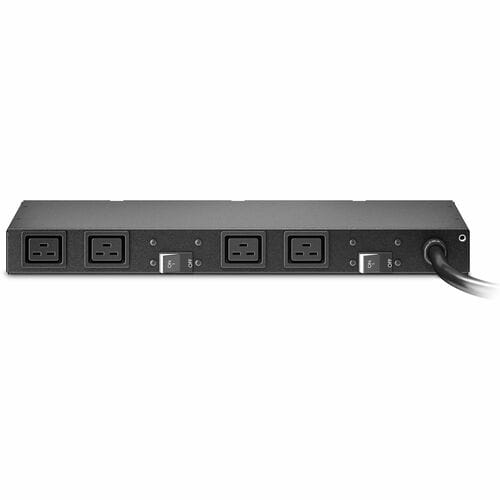

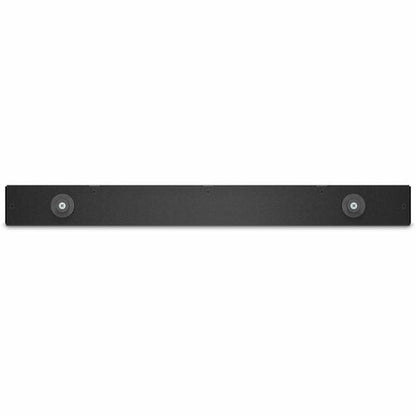

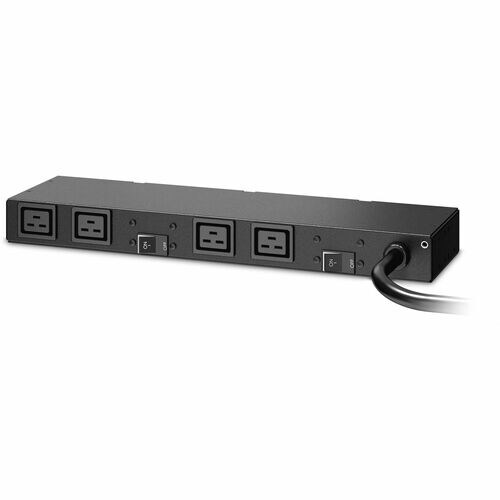

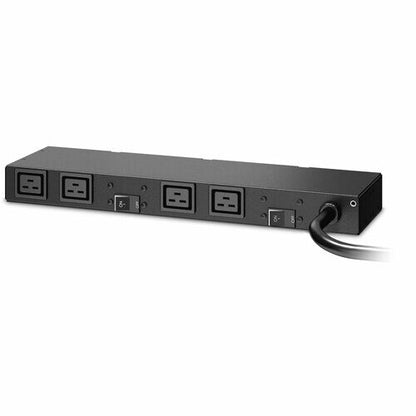

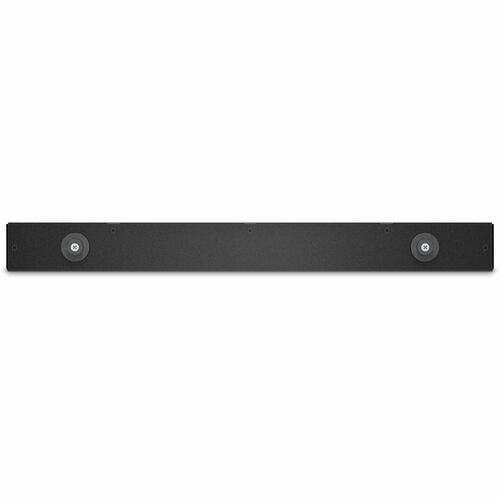

It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 30A and operates at 208V. The PDU features 4 IEC 60320 C19 outlets, providing connections for high-power IT equipment. It includes a 12-foot power cord with a NEMA L6-30P plug. The unit is designed for reliable power distribution and includes an installation guide and safety guide.
Technical Specifications
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Power Description | |
| Input Voltage | 208 V |
| 200 V | |
| Output Voltage | 200 V AC |
| 208 V AC | |
| Input Current | 30 A |
| Technical Information | |
| Protection Type | Overcurrent Protection |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | IEC 60320 C19 |
| PDU Type | Basic |
| Receptacle Detail | 4 x IEC 60320 C19 |
| Plug/Connector Detail | 1 x NEMA L6-30P |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | AP6031A |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 |
| Manufacturer | Schneider Electric SA |
| Product Name | Basic 4-Outlet PDU |
| Product Line | Basic |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 8.38 lb (3801.10 g) |
| Form Factor | Tower |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Placement | Front |
| Rear | |
| Cord Length | 12 ft (3.66 m) |
| Height | 1.73" (44 mm) |
| Width | 17.24" (438 mm) |
| Depth | 4.96" (126 mm) |
| Mounting Orientation | Horizontal |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | cUL Listed|UL Listed |
| Country of Origin | India |
| Environmentally Friendly | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=458562836&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458562836&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN |
| REACH free of SVHC | Yes |
| Lead Free | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
