Power equipment UPS

Expected delivery 3 to 7 business days (exceptions applied)

Tripp Lite

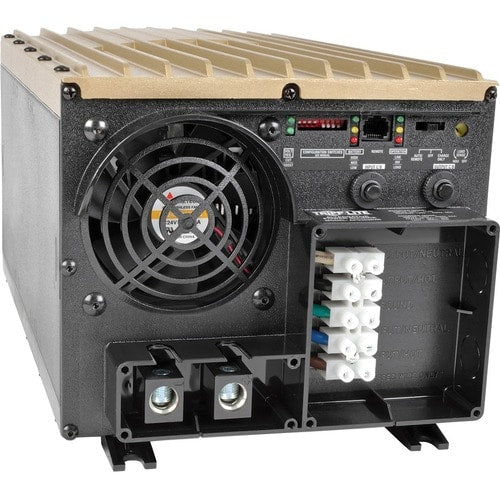

Tripp Lite APS PowerVerter INT APSINT3636VR Power Inverter With Charge

Tripp Lite APS PowerVerter INT APSINT3636VR Power Inverter With Charge

Regular price $2,212.38 CAD
Regular price $2,477.87 CAD Sale price $2,212.38 CAD
-10% OFF Ask for quote
Shipping calculated at checkout.
Tripp Lite APS PowerVerter INT APSINT3636VR Power Inverter With Charger - 36V DC - 230V AC - Continuous Power:3600W

VPN:APSINT3636VR SKU:RSC539514 UPC:37332095985

  • Delivers clean 230V AC power from AC or DC power source
  • 3600W continuous output power; 7200W peak power
  • Auto-transfer switching option for UPS operation

Volume discount available - Ask for quote..

View full details

Recently Viewed

Tripp Lite APS PowerVerter INT APSINT3636VR Power Inverter With Charge

Product information summary

Tripp Lite APS PowerVerter INT APSINT3636VR Power Inverter With Charge

About the product

The APSINT3636VR 3600W APS INT Series 36V DC 230V AC Inverter/Charger is a reliable power source for a wide variety of equipment ranging from power tools, pumps and portable lighting to laptop computers and sensitive monitoring equipment. With no fumes, fuel or excess noise, it's an excellent alternative to generator power.The DC-to-AC inverter features an automatic line-to-battery transfer switch and integrated charging system that allow it to work as a vehicle inverter, standalone AC power source or extended-run UPS. It delivers 3600W of continuous power, 5400W up to one hour or 7200W of peak power up to 10 seconds during equipment startup or cycling. An automatic overload detector, cooling fan and resettable AC circuit breakers protect the unit from damage.Designed for easy installation in RVs, commercial and fleet vehicles, emergency vehicles and construction equipment, the APSINT3636VR converts stored power from any 36V battery or automotive DC source to safe, stable, computer-grade AC power for unlimited runtime. When hardwired to an external 230V AC source, the unit keeps the user-supplied battery charged via a three-stage 7.5/30A selectable charging system while simultaneously delivering AC power to connected equipment.When used as a UPS, the APSINT3636VR's automatic voltage regulation feature protects your equipment against blackouts, brownouts, surges and line noise. Tripp Lite's APSRM4 module with "traffic light" LEDs is included to provide complete remote monitoring and control of the unit.
  • Delivers clean 230V AC power from AC or DC power source
  • 3600W continuous output power; 7200W peak power
  • Auto-transfer switching option for UPS operation
  • Corrects brownouts and overvoltages without using battery power
  • Includes Tripp Lite APSRM4 remote control module

Technical Specifications

Technical Information
ReceptaclesHardwired
Plug/Connector TypeHardwired
Miscellaneous
Additional Information
  • DC Input: Requires 36 VDC input source capable of delivering 114 A
  • AC Input: 230 VAC
  • AC Output: 230 VAC nominal
  • DC Charger Output: 36 VDC nominal
  • DC Input connection type: Set of DC bolt-down terminals
  • AC Input connection type: Hardwire via built in junction box with cover plate
  • Cooling method: Fan
  • Transfer time from line power to battery mode: 4 to 6 milliseconds
  • Low voltage transfer to battery power: User configurable to 144V, 163V, 182V & 201V
  • High voltage transfer to battery power: User configurable to 259 to 278V
  • Frequency control for operating stability
  • Resettable circuit breaker protects APS against system overload
  • RJ45 port allows connection of APS remote switch (part# APSRM)
  • Switch allows user to select between off, auto-invert and charge-only settings
  • Advanced 30 amp, 3-stage battery charger and selector switch for gel or wet cell batteries
  • Allows unlimited runtime capability by allowing the use any number of user-supplied batteries
  • Battery runtime is dependent upon the size and number of user-supplied batteries in 36-volt configuration
  • Overload protection: Includes 12 A input breaker dedicated to the charging system and 20 A output breaker for AC output loads
Package Contents
  • APS PowerVerter INT APSINT3636VR Power Inverter With Charger
  • Instruction manual with Warranty Information
  • Wired Remote Switch with full LED status indicators (model APSRM4)
Compatibility

Compatible with marine, automotive, telecom, computer, emergency and a variety of other applications.

Country of OriginChina
Physical Characteristics
Weight (Approximate)61 lb (27669.13 g)
Height7.25" (184.15 mm)
Width8.50" (215.90 mm)
Depth16.25" (412.75 mm)
Product ColorBlack
Color FamilyBlack
General Information
Product TypePower Inverter
Manufacturer Part NumberAPSINT3636VR
Manufacturer Website Addresshttp://www.eaton.com/EatonCom/Markets/NorthAmerica
ManufacturerEaton Corporation
Product ModelAPSINT3636VR
Product NameAPS PowerVerter INT APSINT3636VR Power Inverter With Charger
Product LinePowerVerter
Product SeriesAPS
Brand NameTripp Lite by Eaton
Power Description
Input Voltage36 V DC
230 V AC
Output Voltage36 V DC
230 V AC
Waveform TypePulse-width Modulated Sine Wave
Input Voltage Range30 V DC - 45 V DC
Maximum Frequency50 Hz
Peak Power Load7.20 kW
Continuous Power Load3.60 kW
