About the product

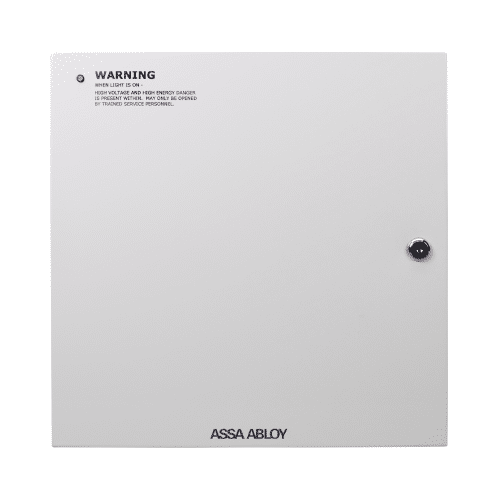

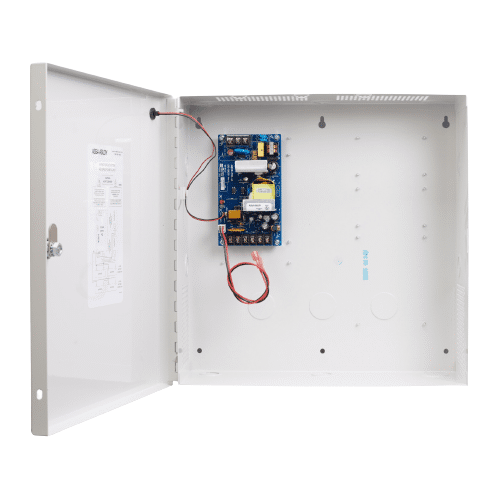

The Securitron AQD1 Series of switching power supplies are dual voltage, UL-listed, supervised units. These units are field selectable with an integrated battery charger. They provide 1 Amp at 12VDC or 24VDC continuous, with up to 16 independently controlled power-limited outputs.
AQD1 Series Switching Power Supply Features:
- All combinations of AQ power supplies and distribution boards are UL listed
- Dual voltage 12 or 24 VDC field selectable continuous output
- Up to 82% efficiency which results in decreased operating costs and lengthens the lifespan of electronics
- Tolerates brownout or overvoltage input ± 15% of nominal voltage
- Thermal shutdown protection with auto restart
- Circuit breaker protects against overcurrent and reverses battery faults
- Integrated battery charging circuit prevents overvoltage on locking devices
- Available with a single relay fire trigger or individually triggered relayed outputs
AQD1 Series Switching Power Supply Specifications:
Environmental
- Maximum Operating Temperature (° F) : 122
- Minimum Operating Temperature (° F) : -4
Electrical
- Power Supply Type : Switching
- Voltage : 12/24
- Output Amps : 1
- Output Voltage : 13.7/27.4
- Monitoring Options : Yes
Weights & Dimensions
- Shipping Weight (lbs) : 12.7
- Height : 14
- Width : 14
- Depth : 4.75
Technical Specifications
The Securitron AQD1 Series of switching power supplies are dual voltage, UL-listed, supervised units. These units are field selectable with an integrated battery charger. They provide 1 Amp at 12VDC or 24VDC continuous, with up to 16 independently controlled power-limited outputs.
AQD1 Series Switching Power Supply Features:
- All combinations of AQ power supplies and distribution boards are UL listed
- Dual voltage 12 or 24 VDC field selectable continuous output
- Up to 82% efficiency which results in decreased operating costs and lengthens the lifespan of electronics
- Tolerates brownout or overvoltage input ± 15% of nominal voltage
- Thermal shutdown protection with auto restart
- Circuit breaker protects against overcurrent and reverses battery faults
- Integrated battery charging circuit prevents overvoltage on locking devices
- Available with a single relay fire trigger or individually triggered relayed outputs
AQD1 Series Switching Power Supply Specifications:
Environmental
- Maximum Operating Temperature (° F) : 122
- Minimum Operating Temperature (° F) : -4
Electrical
- Power Supply Type : Switching
- Voltage : 12/24
- Output Amps : 1
- Output Voltage : 13.7/27.4
- Monitoring Options : Yes
Weights & Dimensions
- Shipping Weight (lbs) : 12.7
- Height : 14
- Width : 14
- Depth : 4.75
