About the product

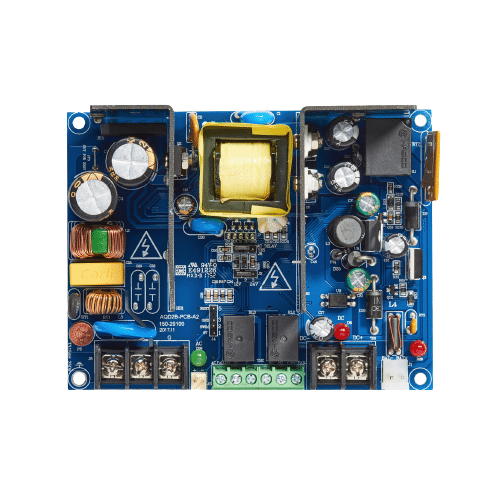

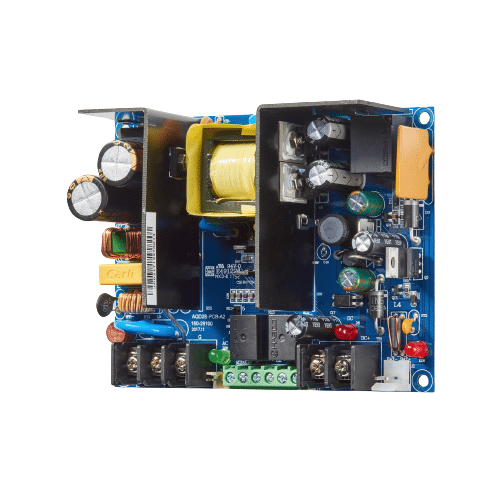

The Securitron AQD2 Series of switching power supplies are dual voltage, UL-listed, supervised units. These units are field selectable with a dedicated battery charging circuit. They provide 2 Amp at 12VDC or 24VDC continuous, with up to 16 independently controlled power-limited outputs.
AQD2 Series Switching Power Supply Features:
- All combinations of AQ power supplies and distribution boards are UL listed
- Dual voltage 12 or 24 VDC field selectable continuous output
- Up to 85% efficiency which results in decreased operating costs and lengthens the lifespan of electronics
- Tolerates brownout or overvoltage input ± 15% of nominal voltage
- Thermal shutdown protection with auto restart
- Circuit breaker protects against overcurrent and reverses battery faults
- A dedicated battery charging circuit prevents overvoltage on locking devices
- Low battery cutoff at 9V at 12V and 18V at 24V
- Available with a single relay fire trigger or individually triggered relayed outputs
AQD2 Series Switching Power Supply Specifications:
Environmental
Maximum Operating Temperature (° F): 122
- Minimum Operating Temperature (° F): -4
Electrical
- Power Supply Type: Switching
- Voltage: 12/24
- Output Amps: 2
- Output Voltage: 12.5/25
- Monitoring Options: Yes
Weights & Dimensions
- Shipping Weight (lbs): 12.7
- Height: 14
- Width: 14
- Depth : 4.75
Technical Specifications
The Securitron AQD2 Series of switching power supplies are dual voltage, UL-listed, supervised units. These units are field selectable with a dedicated battery charging circuit. They provide 2 Amp at 12VDC or 24VDC continuous, with up to 16 independently controlled power-limited outputs.
AQD2 Series Switching Power Supply Features:
- All combinations of AQ power supplies and distribution boards are UL listed
- Dual voltage 12 or 24 VDC field selectable continuous output
- Up to 85% efficiency which results in decreased operating costs and lengthens the lifespan of electronics
- Tolerates brownout or overvoltage input ± 15% of nominal voltage
- Thermal shutdown protection with auto restart
- Circuit breaker protects against overcurrent and reverses battery faults
- A dedicated battery charging circuit prevents overvoltage on locking devices
- Low battery cutoff at 9V at 12V and 18V at 24V
- Available with a single relay fire trigger or individually triggered relayed outputs
AQD2 Series Switching Power Supply Specifications:
Environmental
Maximum Operating Temperature (° F): 122
- Minimum Operating Temperature (° F): -4
Electrical
- Power Supply Type: Switching
- Voltage: 12/24
- Output Amps: 2
- Output Voltage: 12.5/25
- Monitoring Options: Yes
Weights & Dimensions
- Shipping Weight (lbs): 12.7
- Height: 14
- Width: 14
- Depth : 4.75
