About the product
Rack system components that can be added to existing racks if requirements change.
- Door ventilation exceeds 830 in2 (5355 cm2) - Adequate ventilation is required for proper operation of today's servers.
- NetShelter Enclosures include fully perforated front and rear doors to provide ample ventilation for servers and networking equipment.
- The perforation pattern provides 844 square inches of open area on the front door, exceeding requirements set forth by major server manufacturers.
- Although this ventilation pattern provides adequate cooling for most configurations, air-moving accessories such as the Schneider Electric Air Distribution Unit and Air Removal Unit are also available to support higher heat density applications.
- Lockable Doors - All NetShelter Enclosures include key lockable front doors to prevent unwanted access.
- Promotes Proper Airflow - Helps to maintain proper rack temperatures within the enclosure by promoting top to bottom airflow movement.
- Protective grounding provisions - NetShelter VS Enclosures incorporate a series of ground studs within each enclosure, providing adequate means for grounding all loose sheet metal panels and/or internally rack-mounted equipment.
Technical Specifications
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| General Information | |
| Product Type | Door Panel |
| Manufacturer Part Number | AR7107 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |

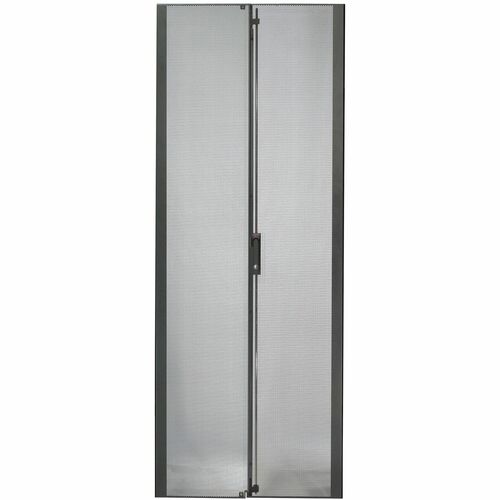

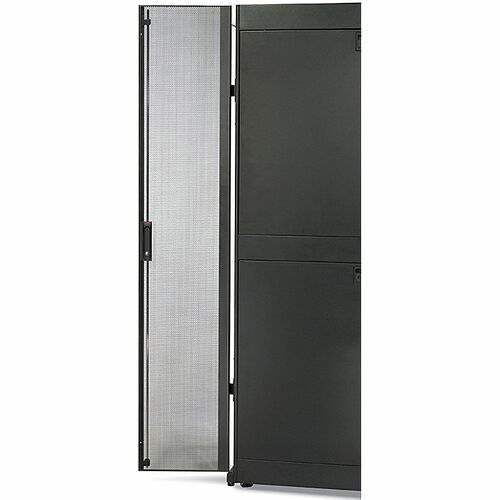

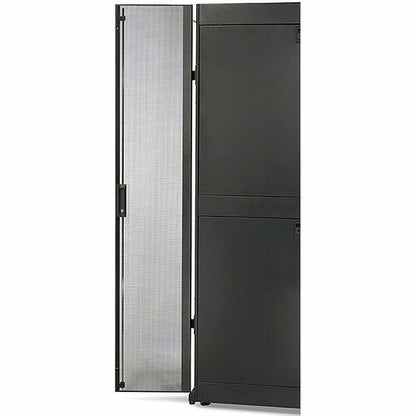

| Product Name | NetShelter SX Wide Perforated Split Doors |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 23.55 lb (10682.10 g) |
| Height | 85.91" (2182 mm) |
| Width | 23.62" (600 mm) |
| Depth | 0.98" (25 mm) |
| Product Color | Black |
| Color Family | Black |
| Miscellaneous | |
| Additional Information | Rear Door: 16 gauge |
| Package Contents |
|
| Compatibility | NetShelter SX |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AR7107_ROHS_DECLARATION&p_FileName=AR7107KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=760114&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=760114&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512008 |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512008_EN |
| REACH free of SVHC | Yes |
| Toxic Heavy Metal Free | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
