About the product

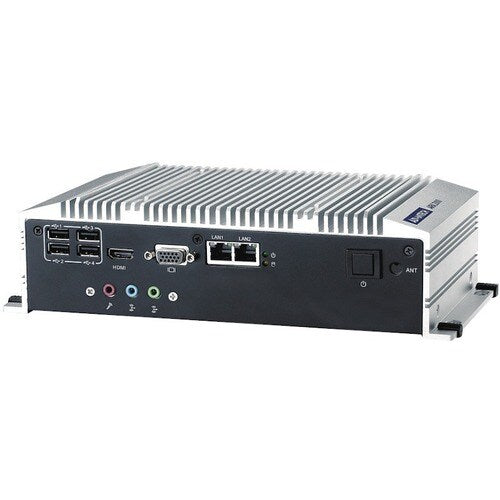

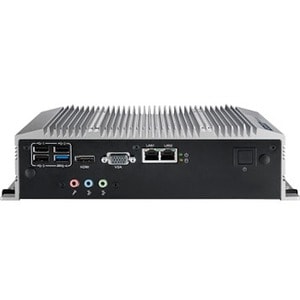

ARK-2000 series : Easy I/O Flexibility Fanless Embedded Computers
ARK-2000 series is an industrial modular embedded computer with rich I/O, intelligent edge computing, high flexibility and easy PCIe expansion capabilities, featuring wide-input power ranges, wide temperature ranges and structural strengthening, which is a perfect match with IoT platforms and scalable gateways.
- Intel® Celeron® J1900 Quad Core 2.0 GHz SoC with Turbo boost support
- VGA and HDMI dual independent display
- 9 ~ 36 VDC wide range power input
- -20 ~ 70° C extend temperature operating
- Mini PCIe expansion with SIM holder for communication module
- mSATA and 1 x 2.5" SATA storage device
- Advantech iDoor module compatible
- Advantech EMIO miniPCIe module compatible with all-in-one ordering
Technical Specifications
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| LAN Model | i210 |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Memory Technology | DDR3L SDRAM |
| Graphics Memory Accessibility | Shared |
| Memory | |
| Maximum Memory Supported | 8 GB |
| Memory Technology | DDR3L SDRAM |
| Total Number of Memory Slots | 1 |
| Interfaces/Ports | |
| HDMI | Yes |
| VGA | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 3 |
| Number of USB 3.0 Ports | 1 |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| China Restriction of Hazardous Substances (China RoHS) | |
| Physical Characteristics | |
| Weight (Approximate) | 5.07 lb (2300 g) |
| Form Factor | Box PC |
| Height | 2.69" (68.40 mm) |
| Width | 10.41" (264.50 mm) |
| Depth | 5.24" (133 mm) |
| Processor | |
| Processor Speed | 2 GHz |
| Processor Type | Celeron |
| Processor Model | J1900 |
| Processor Core | Quad-core (4 Core) |
| Processor Manufacturer | Intel |
| Maximum Turbo Speed | 2.42 GHz |
| General Information | |
| Product Type | Desktop Computer |
| Manufacturer Part Number | ARK-2121L-U0A2E |
| Manufacturer Website Address | http://www.advantech.com |
| Packaged Quantity | 1 |
| Manufacturer | Advantech Co., Ltd |
| Product Model | ARK-2121L |
| Product Name | ARK-2121L Desktop Computer |
| Product Series | ARK-2000 |
| Brand Name | Advantech |
