About the product

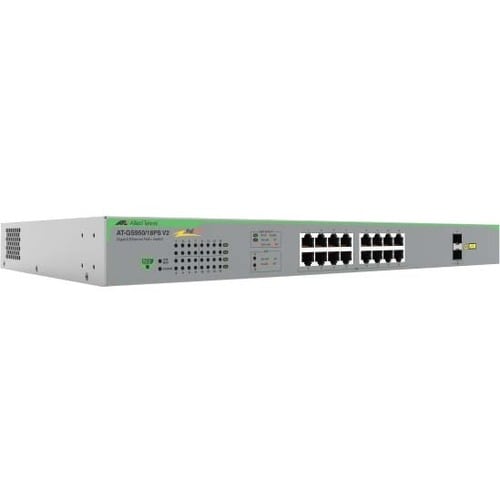

The Allied Telesis GS950/18PS V2 Gigabit PoE+ WebSmart switch features 16 x 10/100/1000T ports and two SFP ports, delivering up to 30 Watts per port (PoE+) to support video surveillance cameras, wireless access points, IP phones and other PoE powered devices. PoE+ eliminates the need for separate power cabling and minimizes the clutter of power supplies and adapters for simplified deployment. Thanks to its compact size, the AT-GS950/18PS V2 is ideal for the edge of SMB businesses, classrooms, cafes and Point of Sale (POS) applications.
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Quickly and easily set up a wired network with 16 networking ports
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 16 ports
Technical Specifications
| Management & Protocols | |
| Manageable | Yes |
| I/O Expansions | |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Total Number of Expansion Slots | 2.0 |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| China Restriction of Hazardous Substances (China RoHS) | |
| Power Description | |
| Power Source | Power Supply |
| Power Consumption | 75 W |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 185 W |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Total Number of Network Ports | 16 |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet PoE+ |
| 2 x Gigabit Ethernet Expansion Slot | |
| Media & Performance | |
| Network Technology | 10/100/1000Base-T |
| 100/1000Base-X | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Physical Characteristics | |
| Weight (Approximate) | 8.16 lb (3700 g) |
| Form Factor | Desktop |
| Wall Mountable | |
| Rack-mountable | |
| Height | 1.73" (44 mm) |
| Width | 17.32" (440 mm) |
| Depth | 9.84" (250 mm) |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | AT-GS950/18PS V2-10 |
| Manufacturer Website Address | http://www.alliedtelesis.com |
| Manufacturer | Allied Telesis, Inc |
| Product Model | GS950/18PS V2 |
| Product Name | GS950/18PS V2 Ethernet Switch |
| Product Series | GS950 V2 |
| Brand Name | Allied Telesis |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3ab |
| IEEE 802.3ad | |
| IEEE 802.3af | |
| IEEE 802.3at | |
| IEEE 802.1p | |
| IEEE 802.1D | |
| IEEE 802.3i | |
| IEEE 802.3u | |
| IEEE 802.3x | |
| IEEE 802.3z | |
| IEEE 802.3 | |
| IEEE 802.3az | |
| IEEE 802.1x | |
| IEEE 802.1w | |
| IEEE 802.1s | |
| IEEE 802.1Q |
