About the product

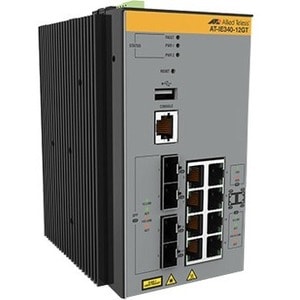

The Allied Telesis IE340-12GP managed switch features 8 x 10/100/1000T PoE+ copper ports and 4 x 100/1000X SFP uplinks. A comprehensive feature-set, and built in security, make it ideal for high-density Industrial Environments.
- 24Gbps switch fabric and 17.8Mpps forwarding packet rate
- 16K MAC addresses
- 4K VLANs
- 9KB jumbo frame size
- 8 QoS priority queues
- 511 (Layer 2), 256 (Layer 3) Multicast groups
- IEEE 802.3at PoE+ sourcing (30W)
- 240W PoE power budget
- Alarm input and output ports
- -40°C to 75°C
- Gigabit Ethernet port for ultra-fast network speeds
- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
- Can work as layer 3 routing for scalable network design
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- PoE+ port to receive data and up to 25.5 W of power on a single cable in places where a power outlet is not available
- Quickly and easily set up a wired network with 8 networking ports
Technical Specifications
| Management & Protocols | |
| Manageable | Yes |
| Network & Communication | |
| Layer Supported | 3 |
| I/O Expansions | |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 4 |
| Total Number of Expansion Slots | 4.0 |
| Interfaces/Ports | |
| Modular | Yes |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Expansion Slot |
| 8 x Gigabit Ethernet PoE+ | |
| Media & Performance | |
| Network Technology | 1000Base-X |
| 10/100/1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Wall Mountable | |
| Height | 6.02" (153 mm) |
| Width | 3.58" (91 mm) |
| Depth | 5.47" (139 mm) |
| Power Description | |
| Power Source | Power Supply |
| PoE+ | |
| Power Consumption | 271 W |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 240 W |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| China Restriction of Hazardous Substances (China RoHS) | |
| General Information | |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | AT-IE340-12GP-80 |
| Manufacturer Website Address | http://www.alliedtelesis.com |
| Manufacturer | Allied Telesis, Inc |
| Product Model | IE340-12GP |
| Product Name | Industrial PoE+ Ethernet Layer 3 Switch |
| Product Series | IE340 |
| Brand Name | Allied Telesis |
