About the product

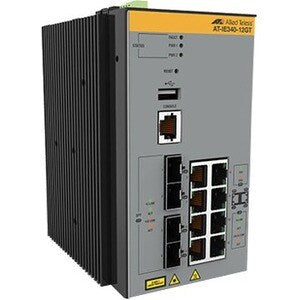

The Allied Telesis IE340-12GT managed switch features 8 x 10/100/1000T copper ports and 4 x 100/1000X SFP uplinks. A comprehensive feature-set, and built in security, make it ideal for high-density Industrial Environments.
- 24Gbps switch fabric and 17.8Mpps forwarding packet rate
- 16K MAC addresses
- 4K VLANs
- 9KB jumbo frame size
- 8 QoS priority queues
- 511 (Layer 2), 256 (Layer 3) Multicast groups
- Alarm input and output ports
- -40°C to 75°C
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Can work as layer 3 routing for scalable network design
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Quickly and easily set up a wired network with 8 networking ports
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 8 ports
Technical Specifications
| Management & Protocols | |
| Manageable | Yes |
| Network & Communication | |
| Layer Supported | 3 |
| Power Description | |
| Power Source | Power Supply |
| I/O Expansions | |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 4 |
| Total Number of Expansion Slots | 4.0 |
| Interfaces/Ports | |
| Modular | Yes |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Expansion Slot |
| 8 x Gigabit Ethernet Network | |
| Media & Performance | |
| Network Technology | 1000Base-X |
| 10/100/1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Wall Mountable | |
| Height | 6.02" (153 mm) |
| Width | 3.58" (91 mm) |
| Depth | 5.47" (139 mm) |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Restriction of Hazardous Substances (RoHS) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| General Information | |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | AT-IE340-12GT-80 |
| Manufacturer Website Address | http://www.alliedtelesis.com |
| Manufacturer | Allied Telesis, Inc |
| Product Model | IE340-12GT |
| Product Name | Industrial Ethernet Layer 3 Switch |
| Product Series | IE340 |
| Brand Name | Allied Telesis |
