About the product

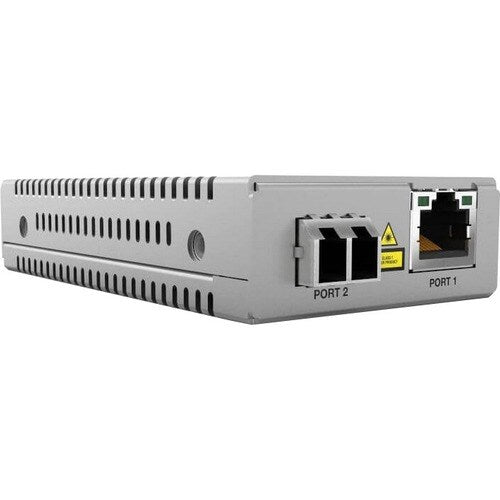

The Allied Telesis MMC Series of mini media converters leverages its smaller size to not only help the environment with a small carbon footprint, but also to save space in its working environment. Despite its compact size, the MMC Series delivers all the power and functionality of standard size media converters.
Extend Networks
The MMC Series are available in 100Mbps or 1000Mbps models. Depending on the model chosen, the fiber-optic port has options for fixed SC, ST, LC or SFP connectors capable of multi-mode or single-mode fiber connectivity. The twisted-pair copper port has an RJ-45 connector supporting either 100Mbps or 1000Mbps, with a maximum operating distance of 100 meters (328 feet).
VLAN Support
Many new backbone switch products now support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) that send extra-long data packets on the network. The MMC Series are fully compatible with these long packets, enabling them to be used in modern networks. Media converters not supporting this feature discard these extra long packets, making them unsuitable for modern networks.
Small and Flexible
The smaller size and external power supply of the MMC Series allows them to be used almost anywhere.
Smart MissingLink (SML)
The Smart MissingLink™ (SML) feature monitors network connections and provides notification when network segments fail, allowing network managers to quickly identify the source and location of failed segments and minimize downtime.
Smart Link Restoration
Smart Link restoration allows the devices, in cases of power failure, link loss or other interrupted service, to automatically restore the link without the need to restart/reset them.
Power Saving
The MMC Series continues the Allied Telesis commitment to the environment with over 50% power savings. With just 1.7W of power usage, the MMC Series media converters are some of the most efficient in the market today.
Link Test
The link test is a fast and easy way for you to test the connections between the media converter ports and the connected end nodes. If a network problem occurs, you can perform a link test to determine which port is experiencing a problem, and focus your troubleshooting efforts on the right cable or end node.
- Extended Temperature rating of -40°C to 70°C (-40°F to 158°F)
- Convert speed as well as media type
- 2K MAC address tables
- Store-and-forward switching mode
- Transparent to IEEE 802.1Q packets
- Auto Negotiation and Auto MDI/MDIX on copper port
- EEE support on copper port
- Far End Fault on Fiber
- 10K byte Jumbo packets
- Link/Activity LED per port
Technical Specifications
| Power Description | |
| Power Source | Power Supply |
| Network & Communication | |
| Network Technology | 1000Base-LX |
| 10/100/1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of LC Ports | 1 |
| Total Number of Ports | 2 |
| Media & Performance | |
| Maximum Distance Supported | 20 km |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Fiber Optic Cable Wavelength | 0.05 mil (0 mm) |
| Physical Characteristics | |
| Weight (Approximate) | 6 oz (170.10 g) |
| Form Factor | Wall Mountable |
| Rack-mountable | |
| Height | 0.86" (21.84 mm) |
| Width | 2.16" (54.86 mm) |
| Depth | 4" (101.60 mm) |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Singapore |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | AT-MMC2000LX/LC-960 |
| Manufacturer Website Address | http://www.alliedtelesis.com |
| Manufacturer | Allied Telesis, Inc |
| Product Model | MMC2000LX/LC |
| Product Name | MMC2000LX/LC Transceiver/Media Converter |
| Product Series | MMC2000 |
| Brand Name | Allied Telesis |
