About the product

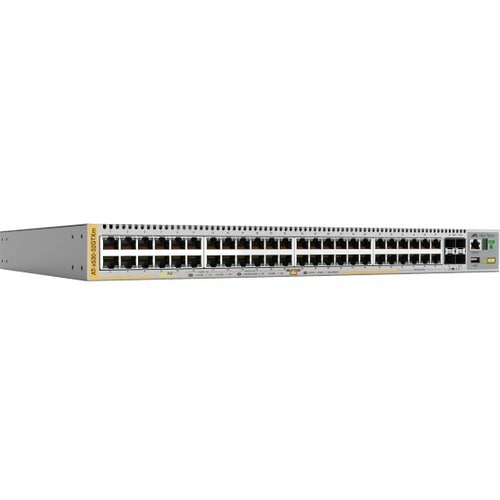

The x530-52GTXm stackable Gigabit layer 3 switch is high-performing and feature-rich, with 40 x 100M/1G ports, 8 x 100M/1G/2.5G/5G ports, and 4 x 10G uplinks.
- AlliedWare Plus™ Enterprise-class operating system
- Support high-speed wireless access points and network upgrades over legacy cabling, with 2.5G and 5G multi-gigabit Ethernet connectivity
- VCStack™ up to 8 units locally or over distance to support resilient networking
- Ethernet Protection Switched Ring (EPSRing™) and G.8032 ERPS supports high-speed resilient ring-based networks
- Active Fiber Monitoring™ (AFM) secures fiber backbone and stacking links
- TAA Compliant
Technical Specifications
| Management & Protocols | |
| Manageable | Yes |
| I/O Expansions | |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Total Number of Expansion Slots | 4.0 |
| Power Description | |
| Power Source | Power Supply |
| Power Consumption | 85 W |
| Number of Power Supplies Installed | 2 |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Restriction of Hazardous Substances (RoHS) | |
| Physical Characteristics | |
| Weight (Approximate) | 11.68 lb (5300 g) |
| Form Factor | Rack-mountable |
| Wall Mountable | |
| Height | 1.73" (44 mm) |
| Width | 17.36" (441 mm) |
| Depth | 12.72" (323 mm) |
| General Information | |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | AT-X530-52GTXM-B91 |
| Manufacturer Website Address | http://www.alliedtelesis.com |
| Manufacturer | Allied Telesis, Inc |
| Product Model | x530-52GTXm |
| Product Name | x530-52GTXm Layer 3 Switch |
| Product Series | x530 |
| Brand Name | Allied Telesis |
| Media & Performance | |
| Network Technology | 5GBase-T |
| 10GBase-X | |
| 10/100/1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| 5 Gigabit Ethernet | |
| 10 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Stack Port | Yes |
| Total Number of Network Ports | 48 |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
| 2 x Stack | |
| 8 x 5 Gigabit Ethernet Network | |
| 40 x Gigabit Ethernet Network | |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.2 |
| IEEE 802.1D | |
| IEEE 802.1AX | |
| IEEE 802.1ag | |
| IEEE 802.1ab | |
| IEEE 802.1p | |
| IEEE 802.1Q | |
| IEEE 802.1w | |
| IEEE 802.1x | |
| IEEE 802.1s | |
| IEEE 802.1v | |
| IEEE 802.3z | |
| IEEE 802.3x | |
| IEEE 802.3u | |
| IEEE 802.3bz | |
| IEEE 802.3az | |
| IEEE 802.3ad | |
| IEEE 802.3ab | |
| IEEE 802.3 |
