About the product

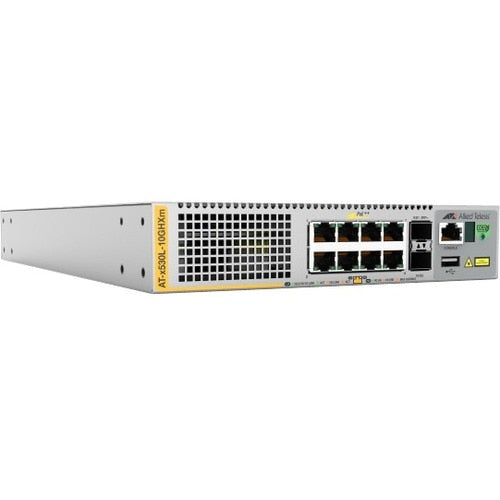

The TAA Compliant x530L-10GHXm stackable Multi-Gigabit switch is high-performing and feature-rich, with 8 x 100M/1/2.5/5G PoE++ ports, and 2 x 10G uplinks
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Managed switch provides a reliable foundation for your network
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Stack port provides an easy and hassle-free way to extend your office network
- Quickly and easily set up a wired network with 8 networking ports
- Cascade to other network devices through the uplink port to expand your local area network
Technical Specifications
| Management & Protocols | |
| Manageable | Yes |
| I/O Expansions | |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Total Number of Expansion Slots | 2.0 |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| China Restriction of Hazardous Substances (China RoHS) | |
| Physical Characteristics | |
| Weight (Approximate) | 7.72 lb (3500 g) |
| Form Factor | Rack-mountable |
| Wall Mountable | |
| Height | 1.67" (42.50 mm) |
| Width | 8.27" (210 mm) |
| Depth | 14.25" (362 mm) |
| Power Description | |
| Power Source | Power Supply |
| Frequency | 50 Hz |
| 60 Hz | |
| Power Consumption | 60 W |
| Number of Power Supplies Installed | 1 |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 500 W |
| General Information | |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | AT-X530L-10GHXM-90 |
| Manufacturer Website Address | http://www.alliedtelesis.com |
| Manufacturer | Allied Telesis, Inc |
| Product Model | x530L-10GHXm |
| Product Name | x530L-10GHXm Layer 3 Switch |
| Product Series | x530L |
| Brand Name | Allied Telesis |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Stack Port | Yes |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 8 x 5G Gigabit Ethernet PoE++ |
| 2 x Gigabit Ethernet Expansion Slot | |
| 2 x Stack | |
| Media & Performance | |
| Network Technology | 10GBase-X |
| 2.5GBase-T | |
| 10GBase-T | |
| 1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| 5 Gigabit Ethernet | |
| 10 Gigabit Ethernet | |
| 2.5 Gigabit Ethernet | |
| Media Type Supported | Twisted Pair |
| Optical Fiber | |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1ab |
| IEEE 802.1ad | |
| IEEE 802.1ag | |
| IEEE 802.1D | |
| IEEE 802.1p | |
| IEEE 802.1Q | |
| IEEE 802.1s | |
| IEEE 802.1v | |
| IEEE 802.1w | |
| IEEE 802.1x | |
| IEEE 802.2 | |
| IEEE 802.3 | |
| IEEE 802.3ab | |
| IEEE 802.3ac | |
| IEEE 802.3ad | |
| IEEE 802.3ae | |
| IEEE 802.3af | |
| IEEE 802.3at | |
| IEEE 802.3az | |
| IEEE 802.3bt | |
| IEEE 802.3bz | |
| IEEE 802.3u | |
| IEEE 802.3x | |
| IEEE 802.3z |
