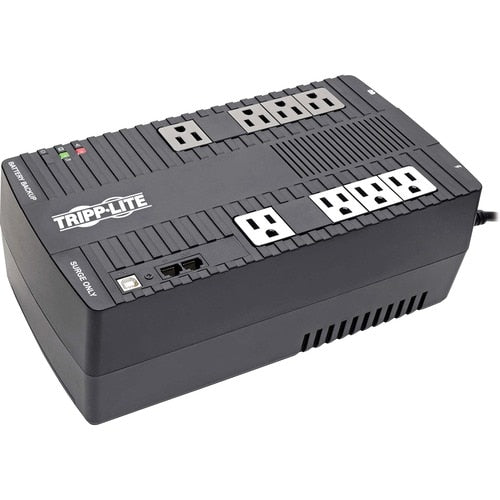

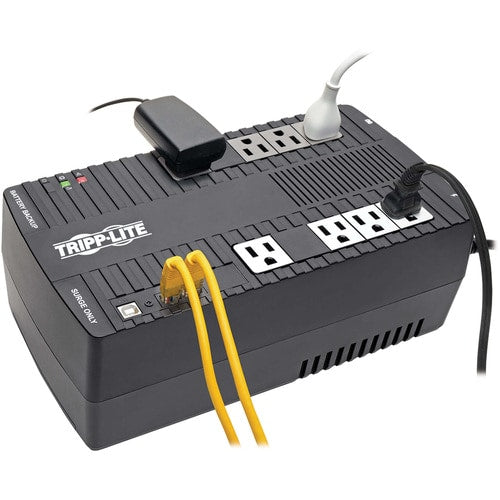

Tripp Lite by Eaton Desktop/Wall Mount Battery Backup Outlets - Ultra-compact Desktop/Tower/Wall Mount - AVR - 8 Hour Recharge - 2 Minute Stand-by - 120 V AC Input - 110 V AC, 115 V AC, 120 V AC Output - Single Phase - Pulse-width Modulated Sine Wave - USB - 8 x NEMA 5-15R Receptacle(s) - 4 x Battery/Surge Outlet

VPN:AVR550U SKU:RSC518928 UPC:37332211453

Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
Keeps AC power running during blackouts to allow time for file saves and safe shutdown
8 NEMA 5-15R outlets power and protect PC, home theater or digital signage equipment

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

Tripp Lite by Eaton Desktop/Wall Mount Battery Backup Outlets - Ultra-

About the product

AVR Series Line-Interactive UPS System offers 550VA ultra-compact line-interactive protection for PCs and workstations. System maintains 120 volt nominal output over an input range of 83 to 147 volts. Workstation-optimized features include USB port (HID-PDC compliant), single-line telephone/DSL surge suppression, space-saving right-angle input plug, four battery/surge-protected outlets and four additional surge-only outlets (8 total). USB port (included cable) works with free unattended shutdown software. Housing is mountable.

Technical Specifications

Controls/Indicators
Status Indicators	2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions
Warranty
Additional Warranty Information	2-year warranty. $100,000 Ultimate Lifetime Insurance (USA, Puerto Rico and Canada only).
Environmental Conditions
Maximum Operating Temperature	104°F (40°C)
Maximum Operating Elevation	10000 ft (3048000 mm)
Interfaces/Ports
USB	Yes

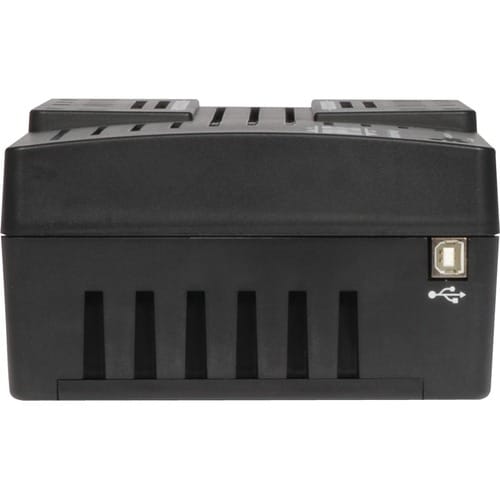

USB (HID Compliant) Port	Yes
Management
Alarm	Replace Battery
	Battery Backup
	Overload
	Low Battery
	Fault
Battery Information
Battery Life	6 Year
Backup/Run Time (Half Load)	9 Minute
Backup/Run Time (Full Load)	2 Minute
Replaceable Battery	Yes
DC System Voltage	12 V DC
Typical Battery Recharge Time	8 Hour
Physical Characteristics
Weight (Approximate)	13.69 lb (6210 g)
Form Factor	Ultra-compact Desktop/Tower/Wall Mount
Height	4.33" (109.98 mm)
Width	6.40" (162.56 mm)
Depth	12" (304.80 mm)
Product Color	Black
Color Family	Black
Miscellaneous

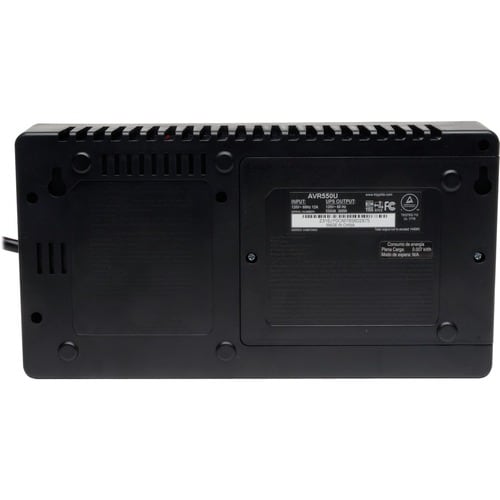

Additional Information	Low voltage transfer to battery power: Switches to battery power as line voltage drops to 83V or lower / Resets to AC mode as line voltage increases to 87V or higher High voltage transfer to battery power: Switches to battery power as line voltage increases to 147V or higher / Resets to line power as line voltage drops to 143V or less Cold Start: Yes, inverter can be "cold started" to enable temporary AC output during a power failure Switches: Combination power off / on / self-test push button switch Typical Application: Basic PCs for home / home-office use, network workstations, audio/video equipment, home entertainment systems and other sensitive electronic devices. WatchDog compatibility: Yes, compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications Supports entry-level PC systems up to 17 minutes during blackout conditions Form factors supported: Ultra-compact desk/floor mount , mounting flanges enable wall-mount installation 8 output receptacles, 2 of which are widely spaced to accommodate large transformer plugs without blocking outlets 4 outlets feature full battery support and surge suppression, protecting computers, monitors and other vital system components from loss of power 4 additional outlets with surge suppression only are ideal for printers and other peripherals not requiring battery support HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows, Mac OS X and Linux
Package Contents	Desktop/Wall Mount Battery Backup Outlets USB cable Owner's manual
Software Included	PowerAlert UPS monitoring software
Certifications & Standards	Tested to UL1778 (USA) cUL1778 (Canada) NOM (Mexico) FCC Class B (Emissions) FCC Part 68 Industry Canada (Telecommunications)
Country of Origin	Vietnam
Recycled	No
Assembly Required	No
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
General Information
Product Type	Line-interactive UPS
Manufacturer Part Number	AVR550U
Manufacturer Website Address	http://www.eaton.com/EatonCom/Markets/NorthAmerica
Packaged Quantity	1 Each
Manufacturer	Eaton Corporation
Product Model	AVR550U
Product Name	Desktop/Wall Mount Battery Backup Outlets
Product Series	AVR
Brand Name	Tripp Lite by Eaton
Power Description
Input Voltage	120 V AC
Output Voltage	120 V AC
	110 V AC
	115 V AC
Input Current	12 A
Surge Energy Rating	316 J
Waveform Type	Pulse-width Modulated Sine Wave
Output Frequency	60 Hz
Input Frequency	60 Hz
Load Capacity (VA)	550 VA
Load Capacity (Watt)	300 W
Technical Information
Application/Usage	Computer
	Blu-ray Player
	ATM
	Speaker
	Printer
	Router
	Home/Office
	Digital Signage
	TV
	Media Center
	Security System
	Gaming Console
	Home Theater
Dataline Protection	RJ-11
Plug/Connector Type	NEMA 5-15P
Cord Length	6 ft (1.83 m)
Phase	Single Phase
Receptacle Type	NEMA 5-15R
EMI/RFI Noise Filter	Yes
AVR	Yes
Energy Saving	Greater than 95% efficiency - GREEN UPS
Number of Battery & Surge Outlets	4
Number of Surge-only Outlets	4
Transfer Time	6 ms
Receptacle Detail	8 x NEMA 5-15R
