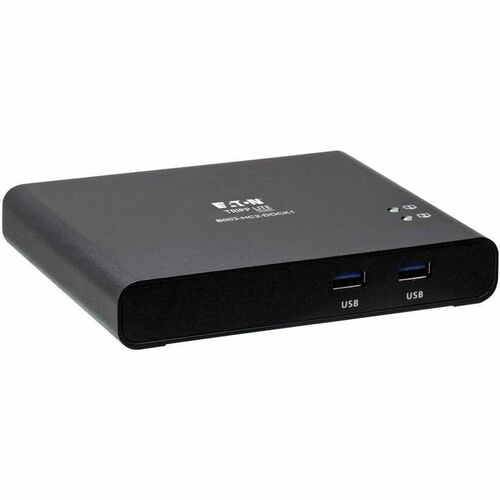

Tripp Lite by Eaton B003-HC2-DOCK1 2-Port USB-C KVM Dock, Black - 2 Computer(s) - 1 Local

Connects 2 USB-C Sources to a Single HDMI Monitor, Keyboard and Mouse

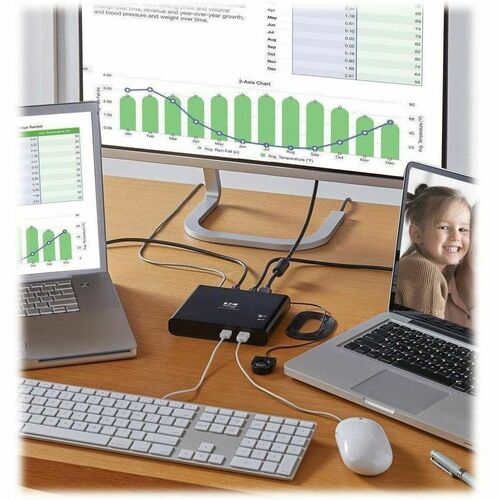

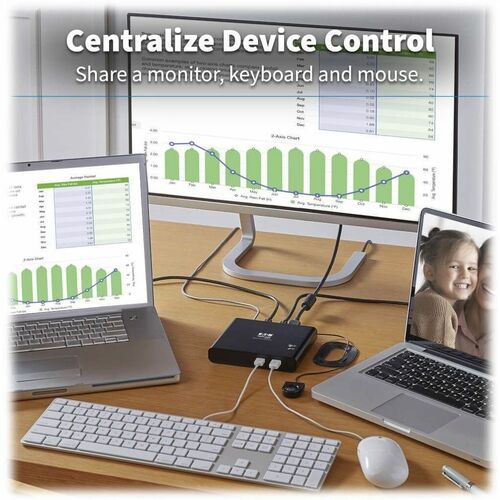

This Desktop KVM/Docking Station lets you access, control, boot and reboot 2 USB-C sources at the same time. Both USB-C sources share one HDMI monitor, USB keyboard and USB mouse, which saves space on your desk or workspace.

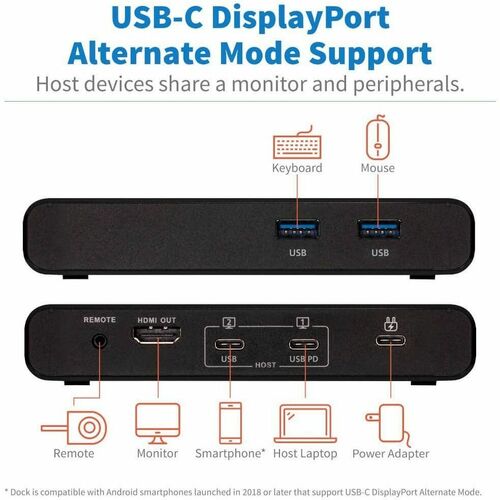

Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals

By connecting the included USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 4K video and digital audio to a compatible monitor, television or projector without installing special software drivers. The B003-HC2-DOCK1 lets you build a workstation for multitasking by giving you the ability to extend screens, connect USB peripherals and switch between sources with ease.

Transmits Crystal-Clear 4K Video

The HDMI port support true 4K resolutions up to 3840 x 2160 at 30 Hz.

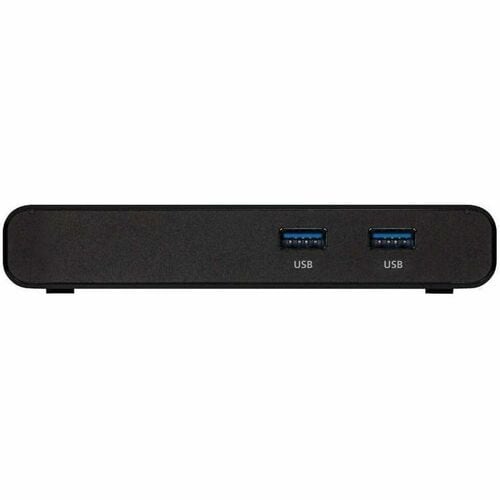

USB Hub Lets You Share Peripherals between Computers

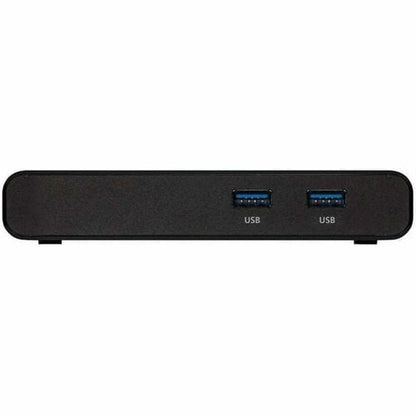

The built-in two-port USB 3.1 Gen1 hub allows you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between both connected computers/sources. The hub is backward compatible with USB 2.0 and 1.1 devices.

USB-C PD 3.0 Charging Port Charges the Connected Notebook, Tablet or Other Device

The USB-C Power Delivery 3.0 port supports power output up to 85W, which is sufficient for charging and powering the connected source device, such as an Android smartphone or Chromebook. Just connect the device's AC wall charger to the USB-C PD port.

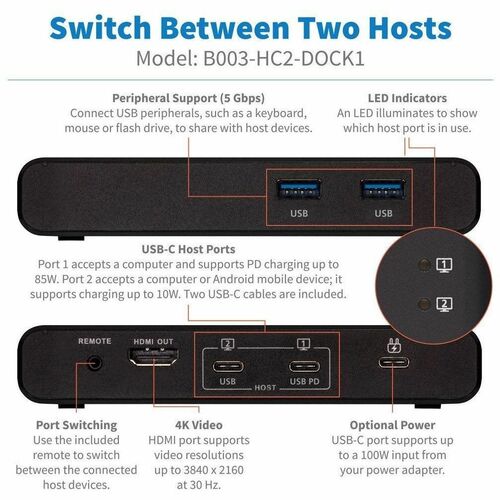

Switching Between Computers Is Fast and Easy

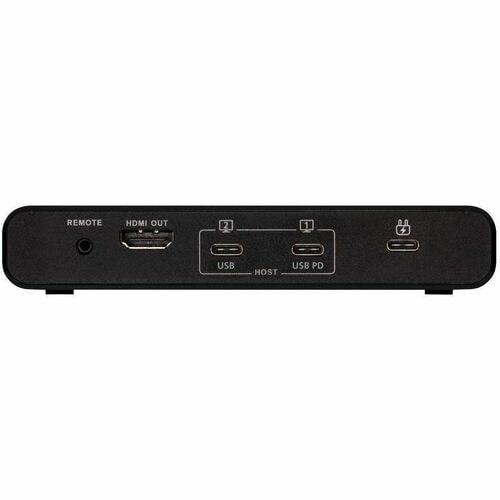

Connect the included remote port selector to the specified port on the B003-HC2-DOCK1 and simply press the button anytime you want to switch between your USB-C sources. White LEDs indicate which computer is currently selected.

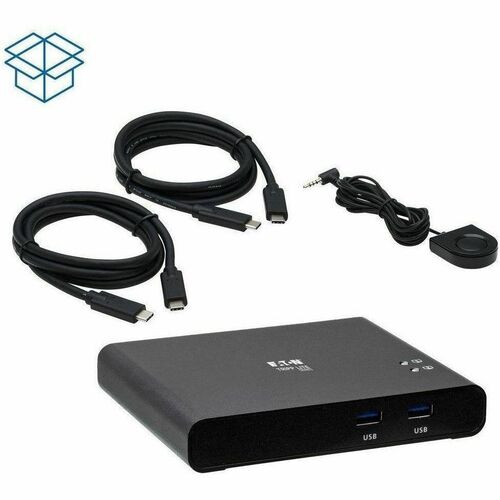

Cables Are Included for Fast and Simple Setup

Connect your two USB-C sources using the included USB-C (M/M) cables. The plug-and-play B003-HC2-DOCK1 requires no drivers, so you can connect and use it immediately. It works with all major operating systems, including Windows and Mac.

Typical Applications

• Control 2 USB-C devices using one keyboard, mouse and HDMI display
• Extend or mirror your laptop or PC monitor on multiple displays to aid in multitasking and increase productivity
• Save money and space by sharing USB peripherals, such as a printer and external hard drive, between 2 connected computers

System Requirements

• Source device(s) with USB-C output
• Display device with HDMI input
• Computer with Windows 10 and above, USB-C port and USB-C DisplayPort Alt Mode compliance
• Computer with Mac OS X 10.12 and above and USB-C port
• Smartphone with Android 8.0 and above, USB-C port and USB-C DisplayPort Alt Mode compliance
• iPad Pro 3rd gen (2018) with iOS 12.1 and above
• This USB-C KVM dock does not support Apple iPhone

More from the Manufacturer

• Converts audio/video signals from sources supporting USB-C DisplayPort Alt Mode
• HDMI port supports UHD resolutions up to 4K @ 30 Hz for crystal-clear video
• USB-C PD 3.0 port supports 85W power output for charging host computer
• USB 3.2 Gen 1 data ports allow connection of flash drives and other peripherals
• Remote port selector allows fast one-touch switching between connected devices
• 3-year limited warranty
