Tripp Lite

KVM EXTENDER WITH VGA AND USB CONNECTIONS UP TO 330 FT

KVM EXTENDER WITH VGA AND USB CONNECTIONS UP TO 330 FT

Regular price $539.47 CAD
Regular price $604.21 CAD Sale price $539.47 CAD
-10% OFF Ask for quote
Shipping calculated at checkout.
Tripp Lite series KVM Extender with VGA and USB Connections, Up to 330 ft. - 330 ft (100584 mm) Range - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 6 x USB - 4 x VGA - 240 V AC Input Voltage - For Windows, Mac

VPNB013-330-USB SKU:388589DIS UPC:37332288875

Please see below

Volume discount available - Ask for quote..

View full details

Recently Viewed

KVM EXTENDER WITH VGA AND USB CONNECTIONS UP TO 330 FT

Product information summary

KVM EXTENDER WITH VGA AND USB CONNECTIONS UP TO 330 FT

About the product

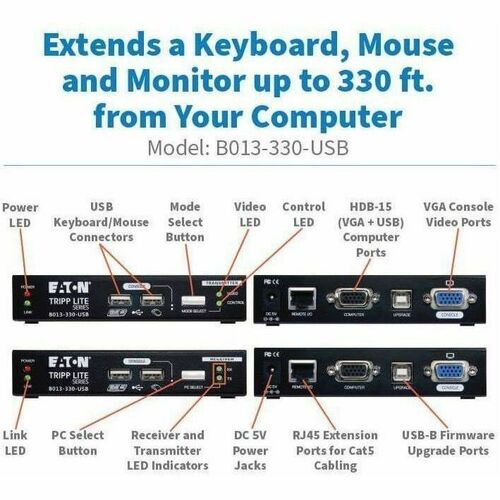

Extends Console up to 330 ft. from Computer, KVM or Server

This KVM extender lets you control a computer, server or KVM switch from up to 330 feet (100 meters) away. Just connect the included transmitter and receiver with a Cat5 UTP cable (sold separately). Console ports on both the transmitter and receiver allow local or remote control of the connected device. Plus, the receiver doubles as a two-port KVM, allowing the connection of a local computer.

Recommended for Small to Medium-Sized Businesses (SMBs)

Being able to extend VGA video and USB signals up to 330 feet is ideal in commercial office spaces where the computers are not close to your workstation, as well as SMB applications needed KVM switches without requiring an IP network for long-distance control. The B013-330-USB supports VGA video resolutions up to 1920 x 1200.

Pure Hardware Solution Is Easy to Install and Operate

The B013-330-USB supports all major operating systems, including Windows and macOS. All necessary cables are included as a convenient off-the-shelf package, making the KVM Extender simple to maintain. As a pure hardware solution, you don't have to worry about software/network conflicts. This KVM Extender is compatible with any computers using VGA and USB connections.


Technical Specifications

Video
Maximum Video Resolution1920 x 1200
Technical Information
Connectivity TechnologyWired
Maximum Operating Distance330 ft (100584 mm)
Device TypeKVM Extender
Power Description
Input Voltage240 V AC
Frequency50 Hz
60 Hz
Input Voltage Range100-240V
Interfaces/Ports
USBYes
VGAYes
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Number of USB Ports6
Number of VGA Ports4
Miscellaneous
Package Contents
  • KVM Extender with VGA and USB Connections, Up to 330 ft.
  • (2) USB KVM combo cables
  • USB-A to USB-B upgrade cable (M/M)
  • (2) External power supplies (Input: 100-240V, 50/60 Hz, 0.6A; Output: 5V 2A) with 6 ft. (1.8 m) cord
  • (8) International plug adapters
  • Quick Start Guide


Platform SupportedMac
Windows
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
Restriction of Hazardous Substances (RoHS)
General Information
Product TypeKVM Extender
Manufacturer Part NumberB013-330-USB
Manufacturer Website Addresshttp://www.eaton.com/EatonCom/Markets/NorthAmerica
Packaged QuantityBox
ManufacturerEaton Corporation
Product ModelB013-330-USB
Product NameKVM Extender with VGA and USB Connections, Up to 330 ft.
Brand NameTripp Lite series
Physical Characteristics
Transmitter Height1.02" (25.91 mm)
Transmitter Width5.15" (130.81 mm)
Transmitter Depth2.55" (64.77 mm)
Receiver Height1.02" (25.91 mm)
Receiver Width5.15" (130.81 mm)
Receiver Depth2.55" (64.77 mm)
Transmitter Weight (Approximate)10.22 oz (289.85 g)
Receiver Weight (Approximate)10.22 oz (289.85 g)
Product ColorBlack
Color FamilyBlack

Product compare

Product warranty

Standard manufacturer warranty as applicable

Return policy

15 days return in original condition.

Price guarantee

!00% we are always lower than market price.
