About the product

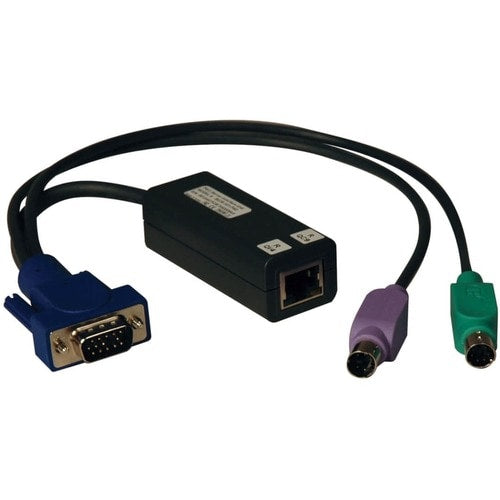

Tripp Lite's NetCommander PS/2 Server Interface Unit (SIU) connects to the HD15 port and PS/2 ports on a computer/server, and converts them to a single RJ45 connector. Ordinary Cat5e patch cables can then be used to connect the computer/server to the switch ports on a Tripp Lite B070 / B072-Series NetCommander Cat5 KVM switch. Use of Cat5e cables frees up space in the installation that would be filled by traditional, thicker KVM cables.
- Needed to connect a PS/2 Server to a B070 / B072-Series NetCommander KVM switch via Cat5e cable
- Easy to install; no software needed
- No power supply needed
- Allows a recommended maximum distance of 100ft from KVM to Server via Cat5e cable
- Compact and lightweight design
Technical Specifications
| Miscellaneous | |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 3.84 oz (108.86 g) |
| Shipping Height | 1.10" (27.94 mm) |
| Shipping Width | 5.12" (130.05 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | KVM Cable |
| Manufacturer Part Number | B078101PS2 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Packaged Quantity | 1 |
| Manufacturer | Eaton Corporation |
| Product Model | B078-101-PS2 |
| Product Name | NetCommander PS2 Server Interface Unit (SIU) |
| Product Line | NetCommander |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Device Supported | Network Device |
| KVM Switch | |
| Keyboard/Mouse | |
| Server | |
| Switch | |
| Cable Characteristic | Patch Cable |
| Cable Type | Category 5e |
| Connector Type on First End | RJ-45 Network - Female |
| Connector Type on Second End | Mini-DIN (PS/2) - Male |
| HD-15 - Male | |
| Connector on First End Details | 1 x RJ-45 Network - Female |
| Connector on Second End Details | 2 x 6-pin Mini-DIN (PS/2) - Male |
| 1 x 15-pin HD-15 - Male |
