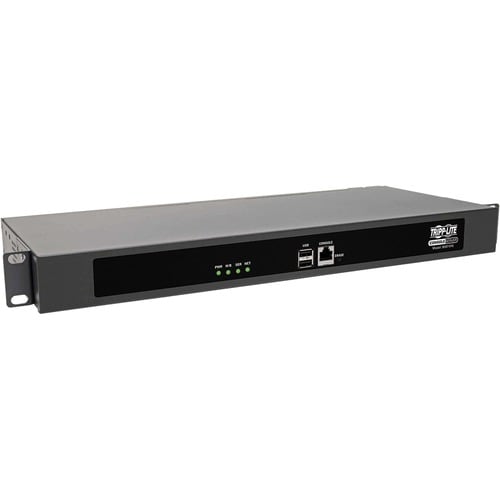

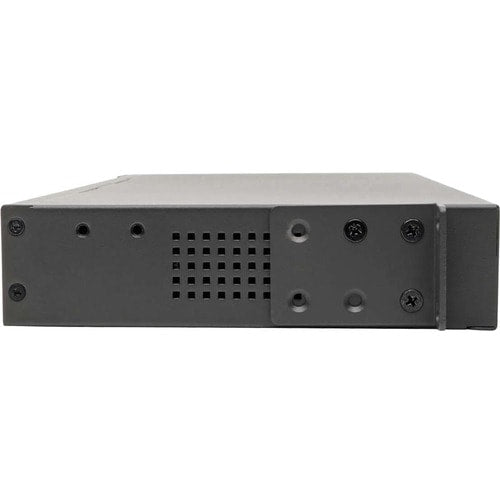

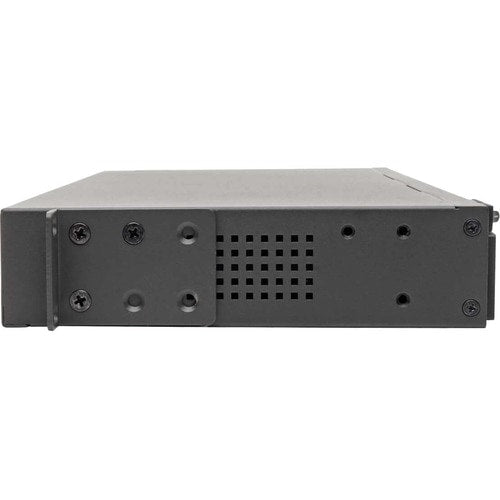

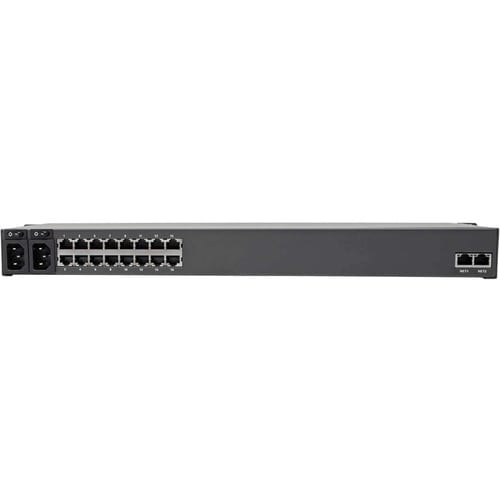

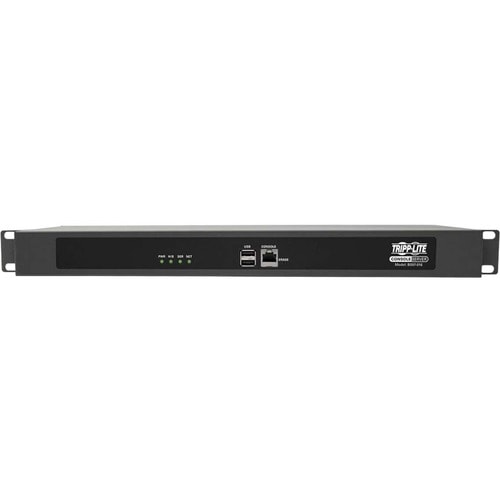

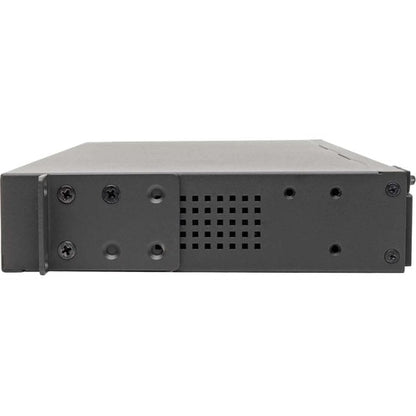

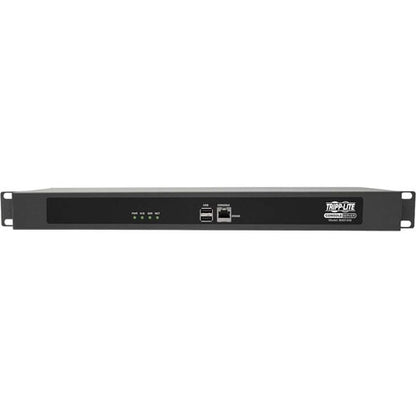

Tripp Lite by Eaton B097-016-INT Device Server - 3.91 GB

Name: Tripp Lite by Eaton B097-016-INT Device Server - 3.91 GB
Brand: Tripp Lite
SKU: 756A6BCM
Price: 3967.52 CAD
Availability: InStock

$3,967.52 CAD

~~$4,443.63 CAD~~ $3,967.52 CAD

-10% OFF Ask for quote

Shipping calculated at checkout.

Tripp Lite by Eaton B097-016-INT Device Server - 3.91 GB - Twisted Pair - 2 x Network (RJ-45) - 2 x USB - 16 x Serial Port - 10/100/1000Base-T - Gigabit Ethernet - Desktop, Rack-mountable

VPN:B097-016-INTSKU:756A6BCM UPC:37332241436

16-port serial console server lets you remotely access and control serial-based networking equipment through one highly secure gateway
Manage routers, UPS systems and other serial-based equipment from anywhere 24/7
Validated to meet FIPS 140-2 standards to ensure utmost protection of private data

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

Tripp Lite by Eaton B097-016-INT Device Server - 3.91 GB

About the product

16-port serial console server lets you remotely access and control serial-based networking equipment through one highly secure gateway

Manage routers, UPS systems and other serial-based equipment from anywhere 24/7

Validated to meet FIPS 140-2 standards to ensure utmost protection of private data

Dual Gigabit Ethernet ports for primary network connection and automatic failover

Designed for standard Cat5e/6 patch cable when connecting to Cisco devices

CE-marked to ensure compliance with EEA (European Economic Area) standards

4-year limited warranty

Technical Specifications

Media & Performance
Media Type Supported	Twisted Pair
Memory
Standard Memory	3.91 GB
Technical Information
Device Type	Console Server
Network & Communication
Network Standard	10/100/1000Base-T
Ethernet Technology	Gigabit Ethernet
Power Description
Input Voltage	230 V AC
	120 V AC
Power Consumption	25 W
Plug/Connector Type	IEC 320-C14
Input Voltage Range	100V AC to 240V AC
Interfaces/Ports
USB	Yes
Number of Network (RJ-45) Ports	2
Network (RJ-45)	Yes
Number of USB Ports	2
Serial Port	Yes
Number of Serial Ports	16
Miscellaneous

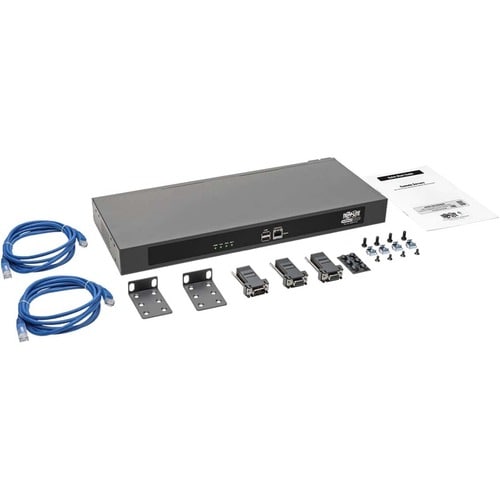

Package Contents	B097-016-INT Device Server 2 x Cat5e Patch Cables, 6 ft. Straight-through Serial Adapter, DB9 to RJ45 (F/F) Crossover Serial Adapter, DB9 to RJ45 (F/F Modular Serial Adapter, DB9 to RJ45 (M/F) Rack-mounting Hardware 6 x Rubber Feets Quick Start Guide
Country of Origin	United States
Environmentally Friendly	Yes
TAA Compliant	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
General Information
Product Type	Device Server
Manufacturer Part Number	B097-016-INT
Manufacturer Website Address	http://www.eaton.com/EatonCom/Markets/NorthAmerica
Manufacturer	Eaton Corporation
Product Model	B097-016-INT
Product Name	B097-016-INT Device Server
Brand Name	Tripp Lite by Eaton
Physical Characteristics
Weight (Approximate)	7 lb (3175.15 g)
Form Factor	Desktop
	Rack-mountable
Height	17.32" (439.93 mm)
Width	6.90" (175.26 mm)
Depth	1.75" (44.45 mm)
Product Color	Black
Color Family	Black
