Audi Video Cables
Expected delivery 3 to 7 business days (exceptions applied)
Tripp Lite

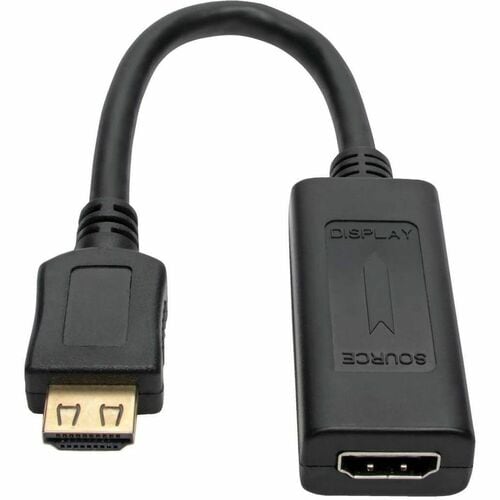

Tripp Lite HDMI Active Extender Cable
Tripp Lite HDMI Active Extender Cable
VPN:B123-001 SKU:CBAV6008F CPU:37332141057
Extend a 1080p @ 24Hz (or 1920 x 1200) HDMI signal up to 150 ft. from the sourceWhen extending a 1080p @ 24Hz (or 1920 x 1200) signal more than 75 ft., use cable made with 24Awg wiring, such as the P568-100-HD24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cable
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details






Recently Viewed
Tripp Lite HDMI Active Extender Cable
Product information summary

About the product
Tripp Lite's B123-001 HDMI Signal Extender increases the distance a 1080p @ 24Hz (or 1920 x 1200) signal can be transmitted beyond the recommended 16 ft. (5 m.). It supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p @ 24Hz, at a maximum distance of 150 ft. from the source. Use P568-Series HDMI cables in most applications. When extending a 1080p @ 24Hz (or 1920 x 1200) signal more than 75 ft.
use cable made with 24Awg wiring, such as the P568-100-HD. (Lengths over 100 ft. are available from Tripp Lite as a custom order) 24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cable. Simply connect the longer cable between the source and the B123-001, and then connect the built-in cable to the monitor. The built-in HDMI cable features a latching connector for a more secure connectionSoftware or drivers are not required. HDCP compliant. Compatible with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.Extend a 1080p @ 24Hz (or 1920 x 1200) HDMI signal up to 150 ft. from the sourceWhen extending a 1080p @ 24Hz (or 1920 x 1200) signal more than 75 ft., use cable made with 24Awg wiring, such as the P568-100-HD24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cableSupports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound AudioCompliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Technical Specifications
Physical Characteristics | |
Product Color | Black |
Color Family | Black |
Miscellaneous | |
Certifications & Standards | TAA |
Country of Origin | Taiwan |
TAA Compliant | Yes |
General Information | |
Product Type | A/V Cable |
Manufacturer Part Number | B123-001 |
Manufacturer Website Address | https://tripplite.eaton.com/ |
Manufacturer | Eaton Corporation |
Product Model | B123-001 |
Product Name | B123-001 HDMI Active Extender Cable |
Brand Name | Tripp Lite by Eaton |
Technical Information | |
Cable Length | 1 ft (0.30 m) |
Conductor | Copper |
Device Supported | Optical Drive |
Monitor | |
Audio/Video Device | |
TV | |
Cable Type | HDMI |
Connector Type on First End | HDMI 1.3 Digital Audio/Video - Female |
Connector Type on Second End | HDMI 1.3 Digital Audio/Video - Male |
Connector on First End Details | 1 x 19-pin HDMI 1.3 Digital Audio/Video - Female |
Connector on Second End Details | 1 x 19-pin HDMI 1.3 Digital Audio/Video - Male |
