About the product
All-in-One Wireless Extender Kit Ideal for Transmitting 4K Video in Home Theaters and Offices
This complete wireless HDMI transmitter and receiver system is recommended for video presentations, high-level gaming and live television events in your home, office, restaurant, bar, trade show and other applications in which connecting long video cables could be a burden. This kit extends 4K video and audio from an HDMI source device to an HDMI display up to 164 feet (50 meters) away. No bulky or costly cabling infrastructure is needed.
Wireless Transmission Saves You Money on Cable and Installation Costs
The B127-1A1-WHD3 eliminates more than just hassles. You'll save on the costs of cabling infrastructure and the labor to install it. Cable clutter is reduced, and you will enjoy more flexibility in placement of the source and display with no cables to relocate when you want to reconfigure the room. The transmitter and receiver units communicate over a 5.18-5.24 GHz wireless frequency that allows fast data transmission and reduced interference from other wireless sources. Be sure the transmitter and receiver share a direct line of sight for best results.
Enjoy Live Video with No Lag or Delay in Transmission
Because this kit features the latest wireless technology with 18 Gbps of bandwidth, it transmits live audio and video with virtually no latency. It is recommended for high-end video gaming, video conferencing, digital signage or watching live television events.
Transmits Crystal-Clear 4K Video for Ultra High-Definition Presentations
The B127-1A1-WHD3 ensures Ultra HD performance in a one-to-one application, where there is less obstruction to occur. It supports 4K video resolutions (3840 x 2160) at 60 Hz. LEDs indicate when the transmitter and receiver units are receiving power, building a wireless connection between the units and transmitting data.
Plug-and-Play Operation for Quick Setup and Immediate Use

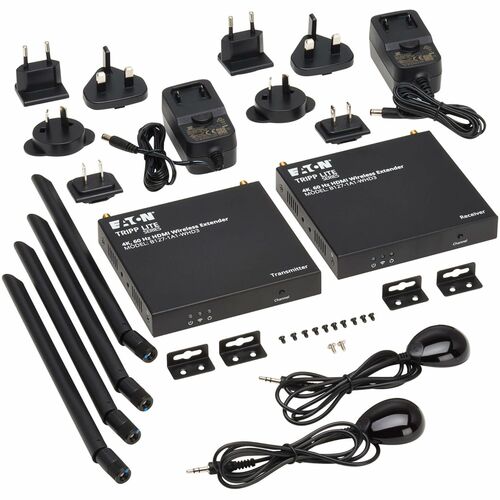

The durable transmitter and receiver set works right out of the box with no software or drivers required. Connect the receiver to the display and the transmitter to the source with user-supplied HDMI cables (such as P568-Series). Then, plug the dual power supplies into an AC outlet.
Technical Specifications
| Power Description | |
| Frequency | 60 Hz |
| Technical Information | |
| Connectivity Technology | Wireless |
| Maximum Operating Distance | 164.04 ft (50000 mm) |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 3840 x 2160 |
| Supported Video Modes | 1080p |
| 720p | |
| Interfaces/Ports | |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 2 |
| HDMI In | Yes |
| HDMI Out | Yes |
| Remote (IR) Output | 1 |
| Remote (IR) Input | 1 |
| General Information | |
| Product Type | Video Extender Transmitter/Receiver |
| Manufacturer Part Number | B127-1A1-WHD3 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | B127-1A1-WHD3 |
| Product Name | HDMI over Wireless Extender Kit w IR, 4K 60hz, 164ft (50M), Wireless HDMI, switchable channel |
| Brand Name | Tripp Lite series |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Transmitter Height | 4.90" (124.46 mm) |
| Transmitter Width | 4.50" (114.30 mm) |
| Transmitter Depth | 0.70" (17.78 mm) |
| Receiver Height | 4.90" (124.46 mm) |
| Receiver Width | 4.50" (114.30 mm) |
| Receiver Depth | 0.70" (17.78 mm) |
| Transmitter Weight (Approximate) | 12.32 oz (349.27 g) |
| Receiver Weight (Approximate) | 12.32 oz (349.27 g) |
| Product Color | Black |
| Color Family | Black |
| Miscellaneous | |
| Application/Usage | Notebook |
| HDTV | |
| Conference Room | |
| Blu-ray Player | |
| Office | |
| Projector | |
| Restaurant | |
| Digital Signage System | |
| Monitor | |
| Package Contents |
|
| Country of Origin | China |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) |
