About the product

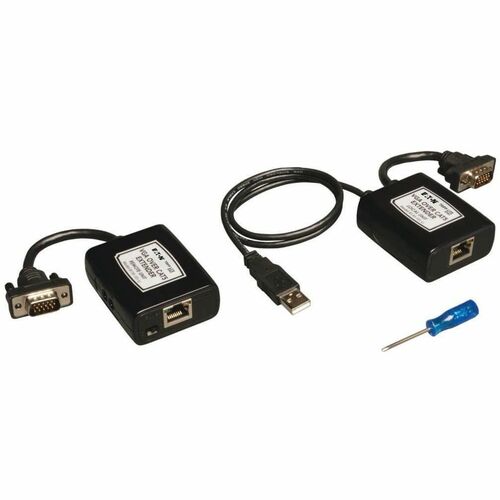

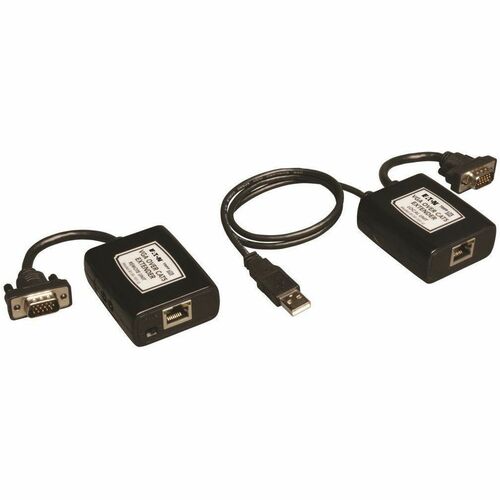

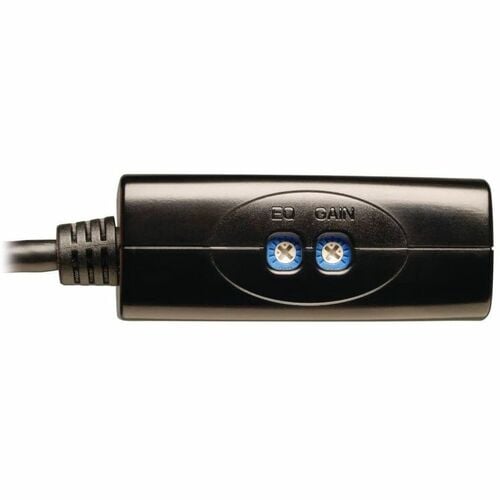

This VGA over Cat5 extender kit allows you to extend a 1920 x 1440 (60Hz) signal up to 350', or a 1024 x 768 (60Hz) signal up to 500', when using 24Awg, Solid Wire Cat5e/6 cable (sold separately). Extender draws power directly from a USB connection at the computer to eliminate the need for an external AC adapter. Receiver unit includes Gain adjustment for brightness and darkness control, and Equalization adjustment for sharp, clear images. VGA dongles allow for direct attachment to video equipment without requiring a VGA cable. Extender kit is perfect for digital signage applications, classroom or auditorium projectors, and more.
- Extends a 1920 x 1440 (60Hz) signal up to 350 ft., or a 1024 x 768 (60Hz) signal up to 500 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
- USB-powered...no external AC power needed
- Built-in VGA dongles...no need for additional VGA cables
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Technical Specifications
| Video | |
| Maximum Video Resolution | 1920 x 1440 |
| Warranty | |
| Additional Warranty Information | 1 year limited warranty |
| Media & Performance | |
| Twisted Pair Cable Standard | Category 6 |
| Media Type Supported | Twisted Pair |
| Physical Characteristics | |
| Product Color | Black |
| Color Family | Black |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 500 ft (152400 mm) |
| Number of Output Devices Supported | 1 |
| Number of Input Devices Supported | 1 |
| General Information | |
| Product Type | Video Extender Transmitter/Receiver |
| Manufacturer Part Number | B130-101-U |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Packaged Quantity | 1 Each |
| Manufacturer | Eaton Corporation |
| Product Model | B130-101-U |
| Product Name | B130-101-U TAA / GSA Video Extender/Console |
| Brand Name | Tripp Lite series |
| Interfaces/Ports | |
| USB | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of USB Ports | 1 |
| Number of VGA Outputs | 1 |
| VGA In | Yes |
| VGA Out | Yes |
| Number of VGA Inputs | 1 |
