About the product

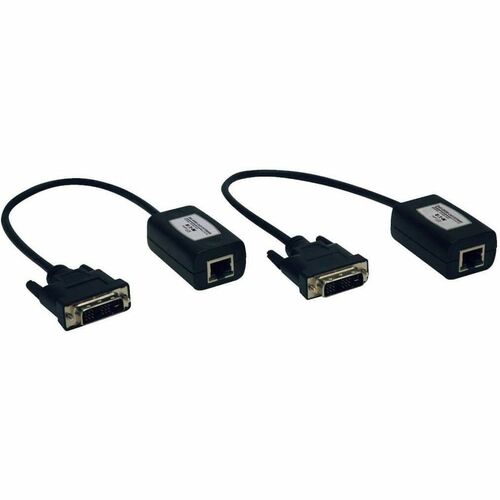

Passive extender kit lets you extend a 1920 x 1080 signal up to 50', or a 1024 x 768 signal up to 100'. Universal design is compatible with all operating systems. Plug-and-play technology makes installation quick and simple - with no software or drivers to install. Hassle-free functionality does not require an external power supply for immediate use.Extender kit comes with transmitter and receiver unitsSupports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60HzExtends a 1920 x 1080 @ 60Hz signal up to 50 ft., or a 1024 x 768 @ 60Hz signal up to 100 ft.Use 24AWG
Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolutionCompatible with all operating systemsPlug and play, no external power, software or drivers requiredCompliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Technical Specifications
| Warranty | |
| Additional Warranty Information | 1-year limited warranty |
| Media & Performance | |
| Twisted Pair Cable Standard | Category 6 |
| Media Type Supported | Twisted Pair |
| Physical Characteristics | |
| Product Color | Black |
| Color Family | Black |
| Video | |
| Graphics Modes | Full HD |
| Maximum Video Resolution | 1920 x 1080 |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 100 ft (30480 mm) |
| Number of Output Devices Supported | 1 |
| Number of Input Devices Supported | 1 |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | TAA |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of DVI Outputs | 1 |
| DVI In | Yes |
| DVI Out | Yes |
| Number of DVI Inputs | 1 |
| General Information | |
| Product Type | Video Extender Transmitter/Receiver |
| Manufacturer Part Number | B140-101 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | B140-101 |
| Product Name | DVI Over Cat5 Passive Extender Kit |
| Brand Name | Tripp Lite by Eaton |
