HP Inc.

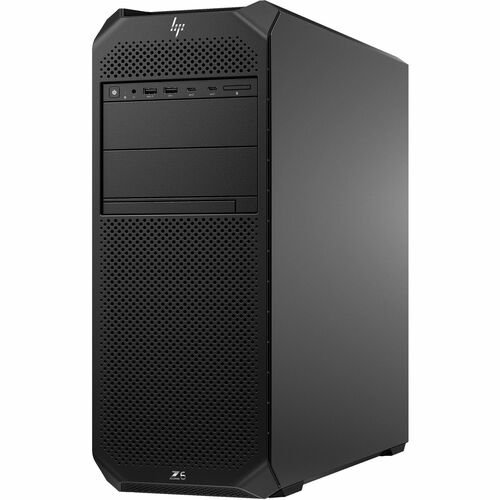

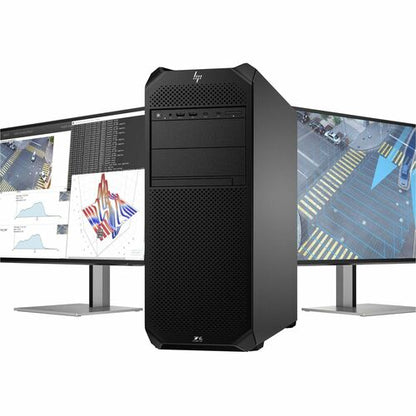

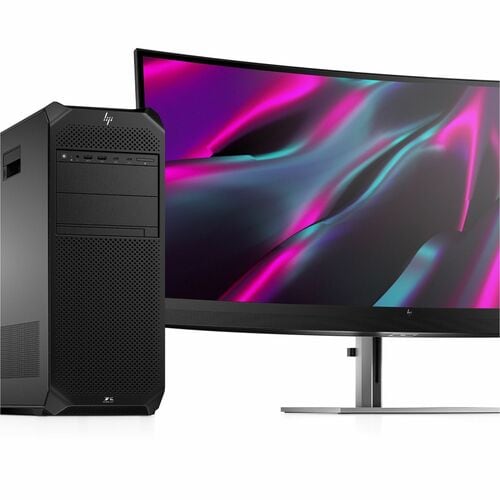

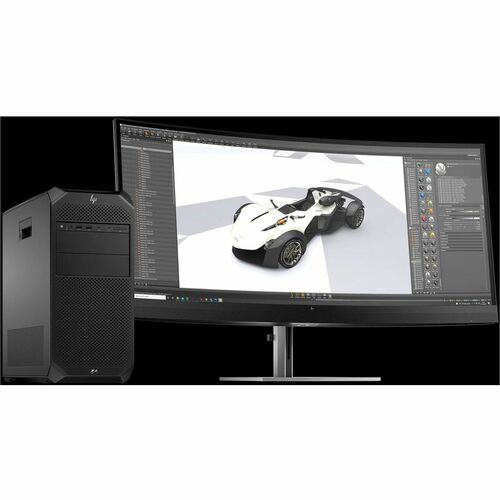

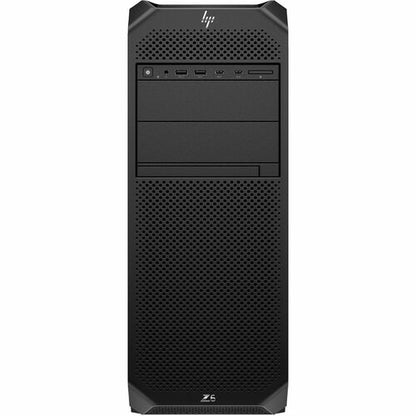

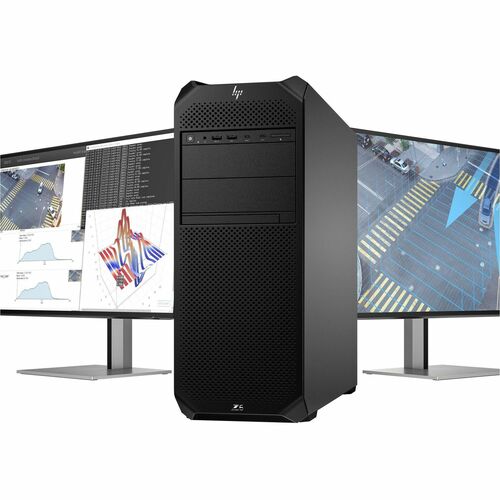

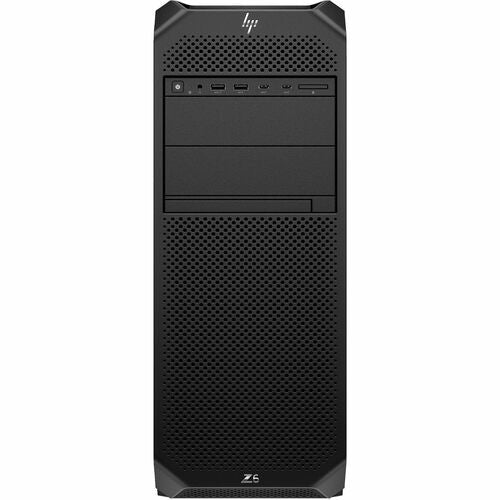

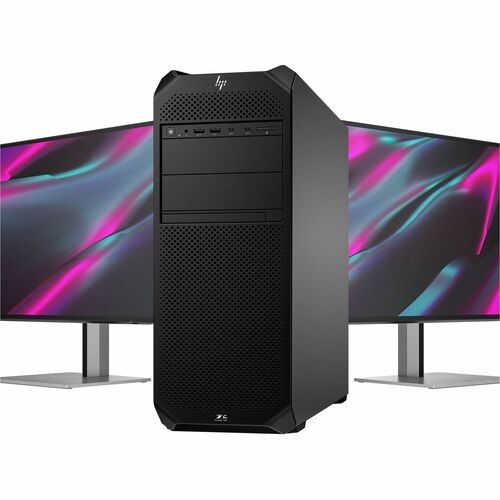

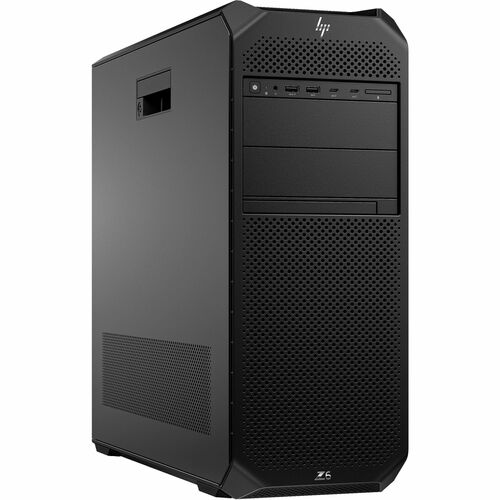

HP Z6 G5 Workstation - 1 Xeon w5-3525 - 32 GB - 1 TB SSD - Tower - Black
HP Z6 G5 Workstation - 1 Xeon w5-3525 - 32 GB - 1 TB SSD - Tower - Black
VPN:B3SG6UT#ABASKU:ED5943CM UPC:198828668769
- Gigabit Ethernet offers great aggregate data transfer capacity which brings about less clog and better overall performance
- 1.13 kW power supply unit (PSU) fulfills your system's power requirements
- Experience high performance, built-in security and remote management capabilities with the Intel Xeon 3.20 GHz processor
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details










Recently Viewed
HP Z6 G5 Workstation - 1 Xeon w5-3525 - 32 GB - 1 TB SSD - Tower - Black
Product information summary

About the product
Unleash extreme graphics performance
Accelerate AI and graphics-heavy projects-from data visualization and machine learning to real-time ray tracing and advanced visual effects. With powerful single socket technology and up to 3 highend GPUs, the Z6 AI workstation is ideal for demanding workflows, with plenty of room to expand.
Remarkable performance. Extraordinary expandability.

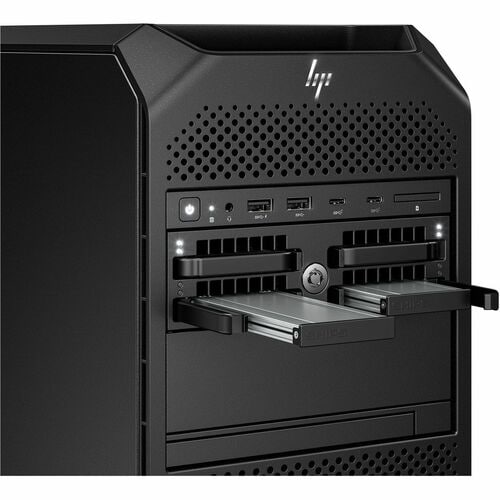

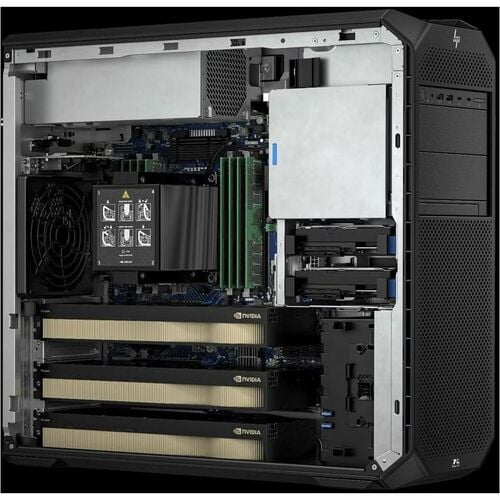

Tackle graphics-intensive workflows with up to 3 high-end GPUs, an Intel® Xeon® W CPU with up to 36 cores, and 1 TB DDR5 RAM3. Easily expand as work evolves with with tool-less access, 6 PCIe slots, 4 front accessible NVMe bays.
Ignite AI innovation
Accelerate AI development and inferencing with the Z6 AI workstation, with up to 3 NVIDIA RTX™ 6000 Ada Generation GPUs delivering up to 4,371 AI TOPS for advanced AI. Process proprietary data securely on a local workstation to gain insights faster.
Engineered to stay cool and quiet.
Push your desktop workstation without disruptive noise. Smart fan control keeps the system whisper-quiet by tuning fan speeds in real-time using over 20 temperature sensors. Precisely placed vents and ducts streamline air?ow and heat removal.
Designed with the planet in mind.
At HP, we care about the impact our products have on our people, communities, and planet. That's why the Z6 contains 40% recycled plastics, 10% recycled metal, 100% sustainably sourced outer box packaging, and is EPEAT® Gold Climate+ registered.
Features | Windows 11
Work anywhere without compromising on performance or security with Windows 11 powered by HP's collaboration and connectivity technology.
Intel® Xeon® W processor
Get optimized performance whether your professional application utilizes high core count or high frequency with the Intel® Xeon® W processor.
Security is your top priority
The HP Wolf Pro Security Edition provides preconfigured enterprise-level PC protection for small and medium sized businesses.
Professional Grade Graphics
Tackle 4K visual effects, advanced simulation, and machine learning projects.
Ultra Fast Memory Configurations
Accelerate your workflow. Power through memory intensive workloads with fast machine learning, visual effects, and simulation performance.
- Gigabit Ethernet offers great aggregate data transfer capacity which brings about less clog and better overall performance
- 1.13 kW power supply unit (PSU) fulfills your system's power requirements
- Experience high performance, built-in security and remote management capabilities with the Intel Xeon 3.20 GHz processor
- With 32 GB of memory, users can run many programs without losing execution performance
Technical Specifications
Input Devices | |
Keyboard Localization | English |
Network & Communication | |
Ethernet Technology | Gigabit Ethernet |
Technical Information | |
AI-powered | Yes |
Chipset | |
Chipset Manufacturer | Intel |
Chipset Model | W790 |
Display & Graphics | |
Graphics Controller Model | RTX A1000 |
Graphics Memory Capacity | 8 GB |
Graphics Memory Accessibility | Dedicated |
Operating System | |
Operating System | Windows 11 Pro |
Operating System Platform | Windows |
Operating System Language | English |
Storage | |
Drive Type | SSD |
Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
Total Solid State Drive Capacity | 1 TB |
Controllers | |
RAID Levels | 0, 1, 5, 10 |
Controller Type | Serial ATA/600 |
NVMe | |
RAID Supported | Yes |
Power Description | |
Input Voltage | 120 V AC |
230 V AC | |
Frequency | 50 Hz |
60 Hz | |
Maximum Power Supply Wattage | 1.13 kW |
Interfaces/Ports | |
Total Number of USB Ports | 14 |
Number of Onboard USB 2.0 Ports | 3 |
Number Of Ethernet Ports | 1 |
Number of USB 3.1 Gen 1 Ports | 8 |
Number of USB 3.2 Gen 1 Ports | 2 |
Optional Ports | Details regarding optional ports aggregated from the information available for this product's family/series
|
General Information | |
Product Type | Workstation |
Manufacturer Part Number | B3SG6UT#ABA |
Manufacturer Website Address | http://www.hp.com |
Manufacturer | HP Inc. |
Product Name | Z6 G5 Tower Workstation |
Product Series | Z6 G5 |
Brand Name | HP |
Memory | |
Error Checking | Non-ECC |
Maximum Memory Supported | 1 TB |
Signal Processing | Registered |
Standard Memory | 32 GB |
Memory Technology | DDR5 SDRAM |
Memory Configuration | 2 x 16 GB |
Total Number of Memory Slots | 8 |
Physical Characteristics | |
Weight (Approximate) | 28.22 lb (12800 g) |
Form Factor | Tower |
Cooler Type | Air Cooler |
Height | 17.50" (444.50 mm) |
Width | 6.65" (168.90 mm) |
Depth | 18.30" (464.80 mm) |
Product Color | Black |
Color Family | Black |
Processor | |
Processor Speed | 3.20 GHz |
Processor Type | Xeon |
Processor Socket | Socket LGA-4677 |
L3 Cache | 45 MB |
Processor Model | w5-3525 |
Processor Core | Hexadeca-core (16 Core) |
Number of Processors Supported | 1 |
Number of Processors Installed | 1 |
Processor Threads | 32 |
Miscellaneous | |
Package Contents |
|
Environmentally Friendly | Yes |
Environmental Certification | Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+) |
Electronic Product Environmental Assessment Tool Gold (EPEAT Gold) | |
Energy Star | Yes |
TCO Certified | Yes |
Energy Efficiency Certification | China Energy Conservation Program (CECP) |
Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
Restriction of Hazardous Substances (RoHS) |
