HP Inc.

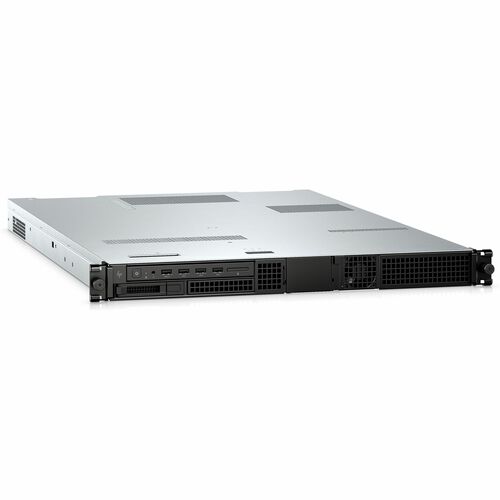

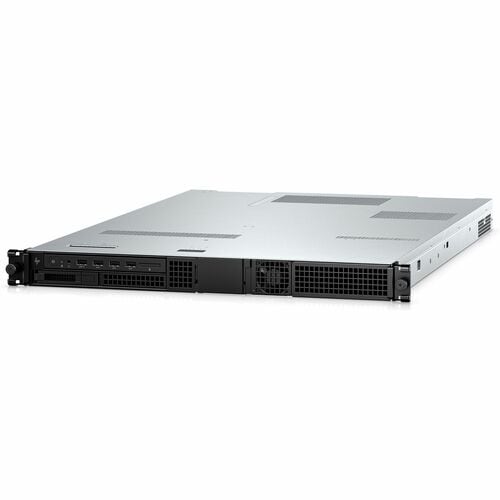

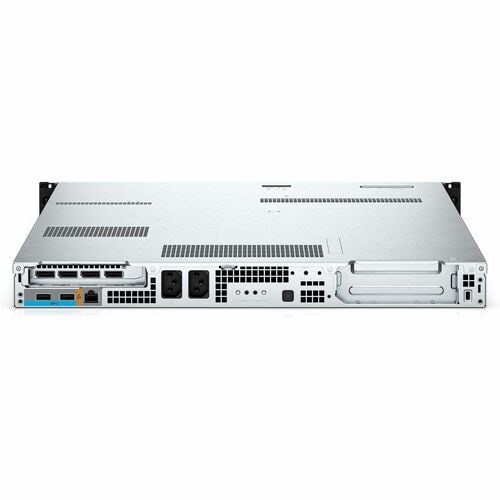

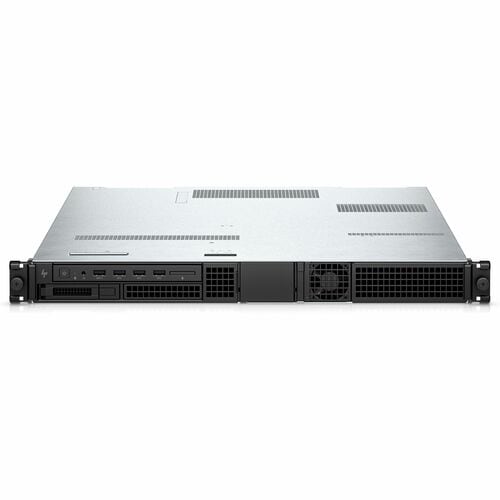

Z4 G5R W52465X 64GB 4TB W11P UNITED STATES / CANADA ENGLISH
Z4 G5R W52465X 64GB 4TB W11P UNITED STATES / CANADA ENGLISH
VPN:B41BPUA#ABASKU:ED2455CM UPC:
- Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
- Experience high performance, built-in security and remote management capabilities with the Intel Xeon 3.10 GHz processor
- With 64 GB of memory, run as many programs as you want without losing the execution performance
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details



Recently Viewed
Z4 G5R W52465X 64GB 4TB W11P UNITED STATES / CANADA ENGLISH
Product information summary

About the product
Overview | Compactly Rackable. Uniquely Powerful
Empower a Flexible workforce with Z by HP pro-level performance in a high-density 1U footprint. Specifically designed to pack more units in a single rack, this slim powerhouse delivers the performance your team needs. All with the ability to upgrade and expand as compute demands evolve.
Workhorse Power. Compact 1U size
This 1U workstation packs impressive power for advanced VFX, 3D modeling, and rendering. Get an Intel® Xeon® W-series CPU, support for entry or high-end graphics, and large memory configurations, all with room to upgrade and expand.
Comprehensive security. Reliability you can trust.
Get peace of mind with a workstation that's built to endure. The Z4 Rack undergoes 360K hours of rigorous testing and is certified for pro apps. And with HP Wolf Security for Business, it's protected below, in, and above the OS.
Upgrade and expand with ease
Invest in the technology you need now and expand as the compute demands of your workforce evolve. With an easily accessible, tool-less design, get access to add or swap components-like graphics, memory, and storage.
Part of the world's most sustainable PC portfolio
At HP, we care about the impact our products have on our people, communities, and the planet. Z products are designed with sustainability at the forefront. So, you can take pride in choosing Z, knowing that you are helping protect our shared future.
Features | Intel® Xeon® W processor
Get optimized performance whether your professional application utilizes high core count or high frequency with the Intel® Xeon® W processor.
Ultra Fast Memory Configurations
Accelerate your workflow and power through memory-intensive workloads with fast visualization, advanced visual effects, and rendering.
Expansion Slots
Support the highest performance workflows, today and beyond.
Power Supply
With dual power supply, you have power to stay up and running. Choose an aggregated option- combining two 675W power supplies-or a redundant option for critical workflows.
- Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
- Experience high performance, built-in security and remote management capabilities with the Intel Xeon 3.10 GHz processor
- With 64 GB of memory, run as many programs as you want without losing the execution performance
Technical Specifications
Network & Communication | |
Ethernet Technology | Gigabit Ethernet |
Chipset | |
Chipset Manufacturer | Intel |
Chipset Model | W790 |
Storage | |
Drive Type | SSD |
Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
Total Solid State Drive Capacity | 4 TB |
Controllers | |
RAID Levels | 0, 1, 5, 10 |
Controller Type | Serial ATA/600 |
NVMe | |
RAID Supported | Yes |
Display & Graphics | |
Graphics Controller Model | Quadro T400 |
Graphics Memory Capacity | 4 GB |
Graphics Memory Accessibility | Dedicated |
Maximum Memory Bandwidth | 80 GB/s |
Power Description | |
Input Voltage | 120 V AC |
230 V AC | |
Frequency | 50 Hz |
60 Hz | |
Physical Characteristics | |
Weight (Approximate) | 20.94 lb (9500 g) |
Form Factor | Rack-mountable |
Cooler Type | Air Cooler |
Height | 25.83" (656 mm) |
Width | 1.69" (43 mm) |
Depth | 17.24" (438 mm) |
General Information | |
Product Type | Workstation |
Manufacturer Part Number | B41BPUA#ABA |
Manufacturer Website Address | http://www.hp.com |
Manufacturer | HP Inc. |
Product Name | Z4 Rack G5 Workstation |
Product Series | Z4 G5 |
Brand Name | HP |
Interfaces/Ports | |
Total Number of USB Ports | 10 |
Number of Onboard USB 2.0 Ports | 3 |
Mini DisplayPort | Yes |
Number Of Ethernet Ports | 1 |
Number of USB 3.1 Gen 1 Ports | 6 |
Number of Mini DisplayPort | 3 |
Optional Ports | Details regarding optional ports aggregated from the information available for this product's family/series. Flex I/O Module
|
Memory | |
Error Checking | Non-ECC |
Maximum Memory Supported | 256 GB |
Signal Processing | Registered |
Standard Memory | 64 GB |
Memory Technology | DDR5 SDRAM |
Memory Configuration | 2 x 32GB |
Total Number of Memory Slots | 4 |
Miscellaneous | |
Environmentally Friendly | Yes |
Environmental Certification | Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+) |
Electronic Product Environmental Assessment Tool Gold (EPEAT Gold) | |
Energy Star | Yes |
TCO Certified | Yes |
Energy Efficiency Certification | China Energy Conservation Program (CECP) |
Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Waste Electrical and Electronic Equipment Directive (WEEE) | |
Processor | |
Processor Speed | 3.10 GHz |
Processor Type | Xeon |
Processor Socket | Socket LGA-4677 |
L3 Cache | 33.75 MB |
Processor Model | w5-2465X |
Processor Core | Hexadeca-core (16 Core) |
Number of Processors Supported | 1 |
Number of Processors Installed | 1 |
Processor Threads | 32 |
