About the product
Overview | Pro-power. Today and tomorrow
Experience a whole new level of performance for your professional workflow. The Z2 Tower is engineered to seamlessly run multithreaded apps for fast rendering, simulation, and now real-time ray tracing. And when your demands change, you have impressive expandability to upgrade.
Your new benchmark for entry workstation power
Designed for zero throttling so you can render, simulate, and real-time ray trace without overheating or lags.
ISV Certified
Work with confidence knowing your PC is certified with leading software applications to ensure peak performance
Built to expand. Power to grow
With room to expand and tool-less access, you can easily upgrade and add components as your needs evolve.
Features | Windows 11
Work anywhere without compromising on performance or security with Windows 11 powered by HP's collaboration and connectivity technology.
Intel® Core™ i7 processor
Run several CPU-heavy programs simultaneously without sacrificing performance with an Intel® Core™ i7 processor.

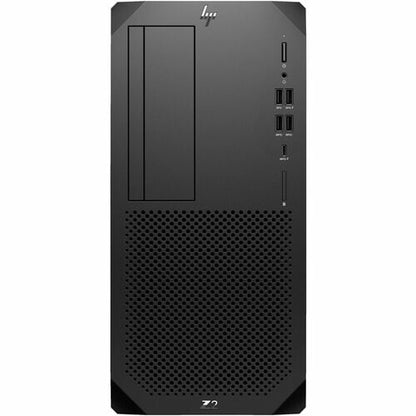

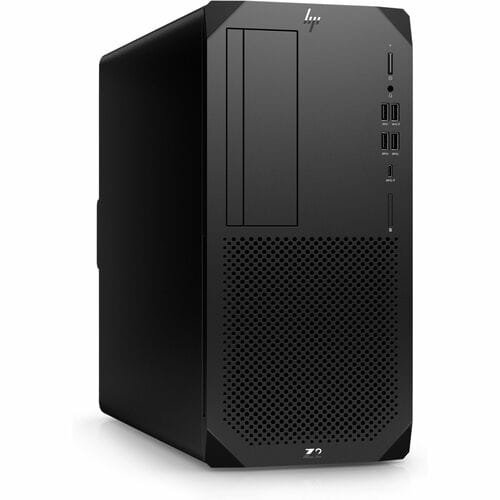

Smaller, Functional Design
The stunning new design features front and rear ledges, so you can easily move your system from location to location.
Tool-less Access
Evolve your work. Evolve your rig. With a tool-less sliding access cover, you can easily get into the the interior, and customize your Z to fit your needs.
Thermal Management
Innovatively designed to keep hardware components cool and quiet no matter how hard you push it. Have confidence to run your system at max load 24/7.
Unthrottled Performance
Z's industry-leading thermals keep the processor and graphics card cool, so they can run at max performance for extended periods of time.
- Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
- 700 W power supply unit (PSU) included
- Intel Core i7 2.10 GHz processor offers lightning fast speed and peak performance even for the toughest tasks and processing intensive games
- With 32 GB of memory, run as many programs as you want without losing the execution performance
Technical Specifications
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Warranty | |
| Additional Warranty Information | |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W680 |
| Operating System | |
| Operating System | Windows 11 Pro |
| Operating System Platform | Windows |
| Storage | |
| Drive Type | SSD |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Total Solid State Drive Capacity | 512 GB |
| Controllers | |
| RAID Levels | 0, 1 |
| Controller Type | Serial ATA/600 |
| NVMe | |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Controller Model | RTX A2000 |
| Graphics Memory Capacity | 12 GB |
| Graphics Memory Accessibility | Dedicated |
| Maximum Memory Bandwidth | 288 GB/s |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Frequency | 60 Hz |
| 50 Hz | |
| Maximum Power Supply Wattage | 700 W |
| General Information | |
| Product Type | Workstation |
| Manufacturer Part Number | B43T2UA#ABA |
| Manufacturer Website Address | http://www.hp.com |
| Manufacturer | HP Inc. |

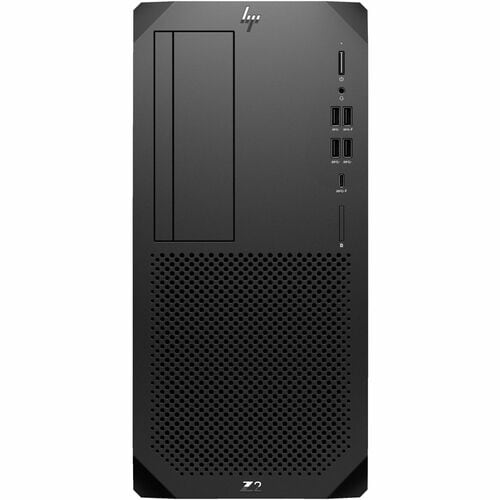

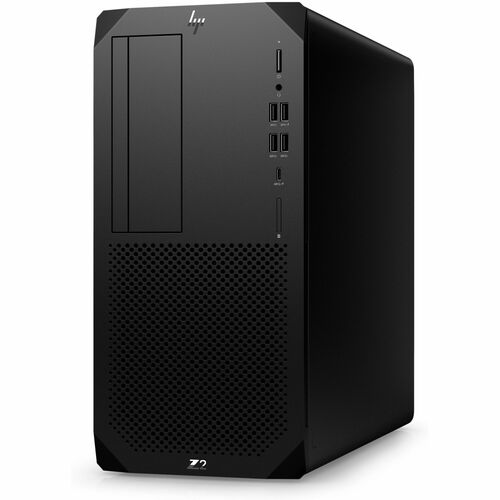

| Product Name | Z2 Tower G9 Workstation |
| Product Series | Z2 G9 |
| Brand Name | HP |
| Interfaces/Ports | |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 2 |
| Total Number of USB Ports | 11 |
| Mini DisplayPort | Yes |
| Number Of Ethernet Ports | 2 |
| Number of Mini DisplayPort | 4 |
| Optional Ports | Details regarding optional ports aggregated from the information available for this product's family/series. Front: choose one of the following options:
Flex I/O module: choose one from the following:
|
| Memory | |
| Error Checking | Non-ECC |
| Maximum Memory Supported | 128 GB |
| Signal Processing | Unbuffered |
| Standard Memory | 32 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Configuration | 1 x 32GB |
| Total Number of Memory Slots | 4 |
| Physical Characteristics | |
| Weight (Approximate) | 13.67 lb (6200 g) |
| Form Factor | Tower |
| Height | 15.16" (385 mm) |
| Width | 14.02" (356 mm) |
| Depth | 6.65" (169 mm) |
| Product Color | Black |
| Color Family | Black |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+) |
| Electronic Product Environmental Assessment Tool Gold (EPEAT Gold) | |
| Energy Star | Yes |
| TCO Certified | Yes |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| Processor | |
| Processor Speed | 2.10 GHz |
| Processor Type | Core i7 |
| Processor Socket | Socket LGA-1700 |
| L3 Cache | 33 MB |
| Processor Model | i7-14700 |
| Processor Core | Icosa-core (20 Core) |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Generation | 14th Gen |
| Processor Threads | 28 |
