About the product

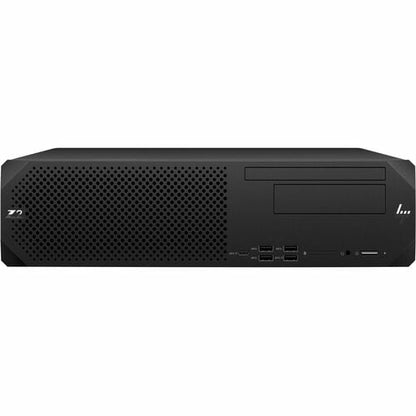

Full size Z tower power at half the size

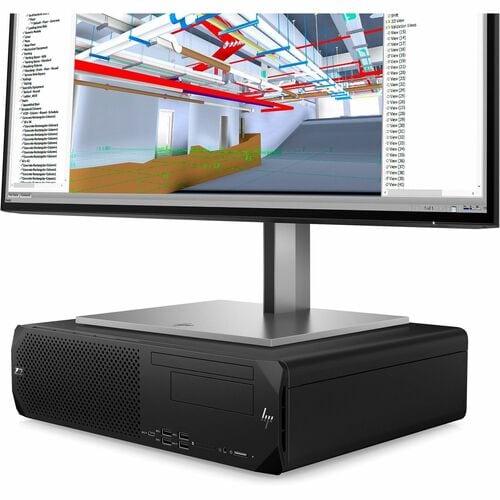

Get all the power of a full size tower at a fraction of the size. Re-engineered to fit full-height, full-length graphics while leaving room for upgrades and expansion, the Z2 SFF delivers high performance for your intensive workflow-from 3D design to real time ray tracing-now and in the future.
Full height, full length performance
Design, simulate and real time ray trace on a Z SFF -- FHFL pro graphics and Intel® Core™ processors.
ISV Certified
Work with confidence knowing your PC is certified with leading software applications to ensure peak performance.
Configurable for today. Expandable for tomorrow.
Accelerate your current workflow with options across processor, graphics, memory, storage, and I/O ports.
Featuring | HP recommends Windows 11 Pro for business
Work anywhere without compromising on performance with Windows 11 and HP collaboration, security, and connectivity technology. Summarize and rewrite content, get relevant content recommendations, and stay organized with Microsoft Copilot.
Intel® Core™ i5 processor
Experience powerful performance and seamless computing for your everyday tasks and higher performance needs with the Intel® Core™ i5 processor.

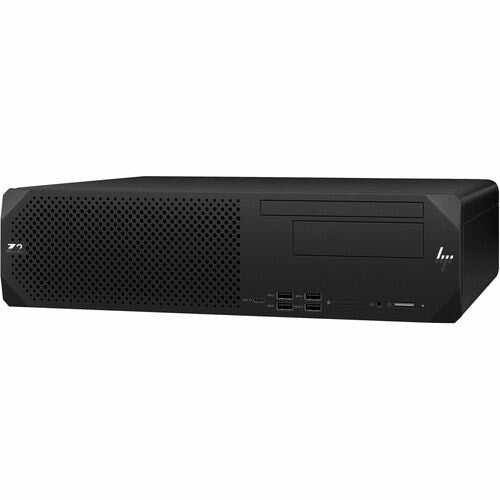

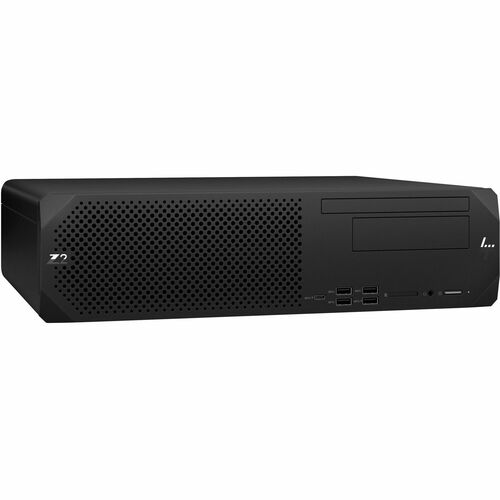

Smaller, Functional Design
The stunning new design features front and rear ledges, so you can easily move your system from location to location.
Tool-less Access
Evolve your work. Evolve your rig. With a tool-less sliding access cover, you can easily get into the the interior, and customize your Z to fit your needs.
Thermal Management
Innovatively designed to keep hardware components cool and quiet no matter how hard you push it. Have confidence to run your system at max load 24/7.
Custom Performance Modes
Take on the toughest work?ows with three custom pre-set modes that optimize performance from the BIOS-High Performance, Performance and Quiet.
- Gigabit Ethernet port for ultra-fast network speeds
- 260 W power supply unit (PSU) fulfills your system's power requirements
- Intel Core i5 2.60 GHz processor provides you with a solid performance to watch videos, play games, and at the same time, its adaptability makes you more productive
- With 8 GB of memory, improve system performance to execute complex applications
Technical Specifications
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W680 |
| Display & Graphics | |
| Graphics Controller Model | UHD Graphics 770 |
| Graphics Memory Accessibility | Shared |
| Operating System | |
| Operating System | Windows 11 Pro |
| Operating System Platform | Windows |
| Network & Communication | |
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Storage | |
| Drive Type | SSD |
| Solid State Drive Interface | PCI Express NVMe |
| Total Solid State Drive Capacity | 256 GB |
| Controllers | |
| RAID Levels | 0, 1 |
| Controller Type | Serial ATA/600 |
| NVMe | |
| RAID Supported | Yes |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Frequency | 50 Hz |
| 60 Hz | |
| Maximum Power Supply Wattage | 260 W |
| General Information | |
| Product Type | Workstation |
| Manufacturer Part Number | B87ZQUA#ABA |
| Manufacturer Website Address | http://www.hp.com |
| Manufacturer | HP Inc. |

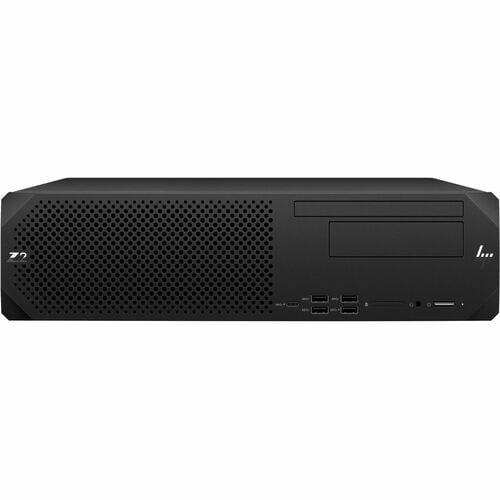

| Product Name | Z2 Small Form Factor G9 Workstation |
| Product Series | Z2 G9 |
| Brand Name | HP |
| Interfaces/Ports | |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 2 |
| Total Number of USB Ports | 12 |
| Number Of Ethernet Ports | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x SuperSpeed USB Type-C® 20Gbps signaling rate (USB Power Delivery, DisplayPort™ 1.4, HP Sleep and Charge |
| Optional Ports | Details regarding optional ports aggregated from the information available for this product's family/series. Flex I/O module: choose one from the following:
|
| Memory | |
| Error Checking | Non-ECC |
| Maximum Memory Supported | 128 GB |
| Signal Processing | Unbuffered |
| Standard Memory | 8 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Configuration | 1 x 8GB |
| Total Number of Memory Slots | 4 |
| Physical Characteristics | |
| Weight (Approximate) | 11.02 lb (5000 g) |
| Form Factor | Small Form Factor |
| Height | 3.94" (100 mm) |
| Width | 15.12" (384 mm) |
| Depth | 12.13" (308 mm) |
| Product Color | Black |
| Color Family | Black |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+) |
| Electronic Product Environmental Assessment Tool Gold (EPEAT Gold) | |
| Energy Star | Yes |
| TCO Certified | Yes |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Processor | |
| Processor Speed | 2.60 GHz |
| Processor Type | Core i5 |
| Processor Socket | Socket LGA-1700 |
| L3 Cache | 24 MB |
| Processor Model | i5-14500 |
| Processor Core | Tetradeca-core (14 Core) |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Generation | 14th Gen |
| Processor Threads | 20 |
