Cyber Power CyberPower BCT3L9N125 Battery Cabinet - 240 V DC - Valve Regulated Lead Acid (VRLA) - Hot Swappable

VPN:BCT3L9N125 SKU:RSC846720 UPC:

Please see below description

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

Cyber Power CyberPower BCT3L9N125 Battery Cabinet - 240 V DC - Valve R

About the product

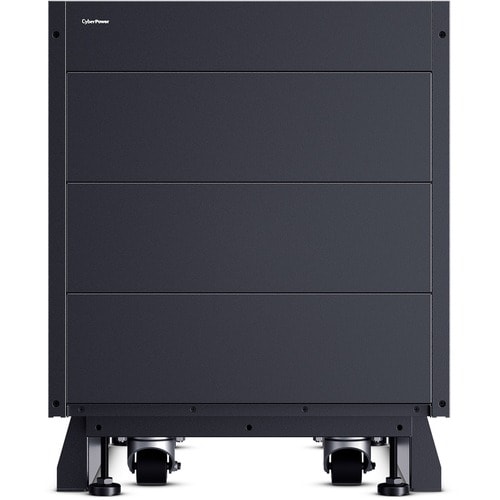

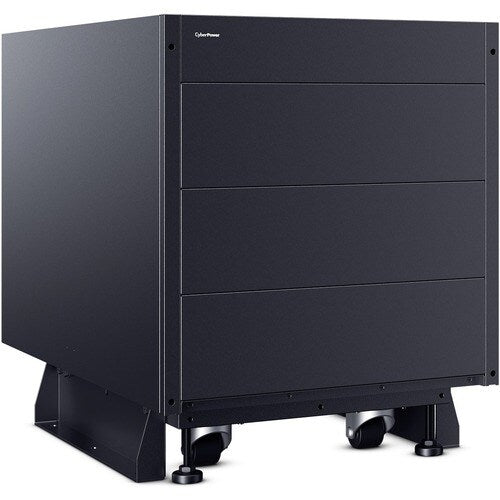

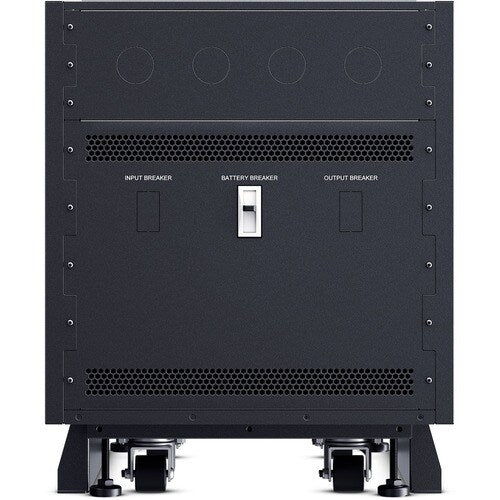

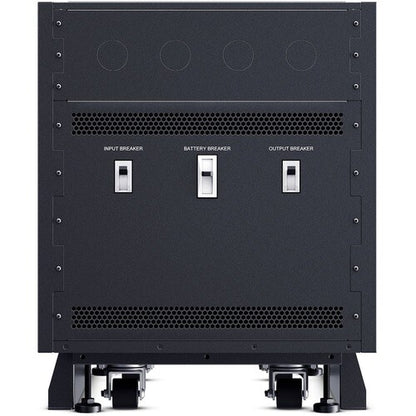

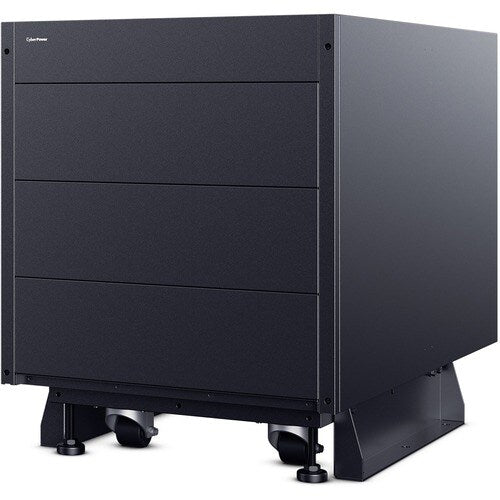

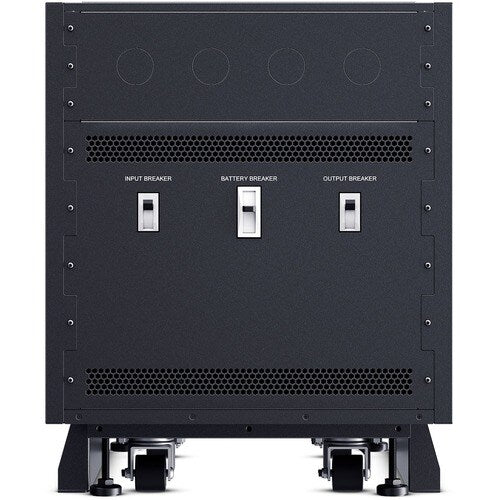

The CyberPower BCT3L9N125 3-Phase Modular UPS Battery Cabinet can hold up to 6 battery modules (BM120V30ATY). These 3-layer units can be configured as stand-alone cabinets, rack mounted, or stacked with another component of our modular UPS system. Includes a One-Year Limited Warranty.

Technical Specifications

Environmental Conditions
Maximum Operating Temperature	104°F (40°C)
Technical Information
Hot Swappable	Yes
Output Voltage	240 V DC
Battery Characteristics	Valve Regulated Lead Acid (VRLA)
Miscellaneous
Additional Information	Battery Module Capacity Maximum: 6 Boost Charge Voltage: 2.4 VDC/Cell, Constant Current and Constant Voltage Charge Mode Boost Charge Voltage (Selectable): 2.3 - 2.45 VDC/Cell Charger Voltage Tolerance: ?1% Float End of Discharging Voltage 0.15C discharge current: 1.75 VDC/Cell End of Discharging Voltage 0.15C discharge current (Selectable): 1.65 - 1.8 VDC/Cell End of Discharging Voltage 0.6C discharge current: 1.65 VDC/Cell End of Discharging Voltage 0.6C discharge current (Selectable): 1.6 - 1.75 VDC/Cell Float Charge Voltage: 2.25 VDC/Cell Float Charge Voltage (Selectable): 2.2 - 2.35 VDC/Cell Hot Swappable Battery Module: Yes - Qualified Personnel Only Recharge Power: Default 10% x Power Replacement Battery Cartridge Quantity: 6 Ripple Current: ?5% C10 Ripple Voltage: ?1% VDC Float Temperature Compensation (Per Cell): -3 mV/°C Temperature Compensation (Selectable): 0 - 5 mV/°C Material of Construction: Metal Operating Elevation: 0 - 10000 ft (0 - 3048 m) Operating Elevation Note: At ?1000m above sea level, de-rate power by 1% per 100m between 1000m and 3048m Operating Relative Humidity: 0 - 95 % (non-condensing) Operating Temperature Note: Battery life is halved for every 10°C increase above 20°C Storage Battery Temperature Note: Optimum battery storage between -15°C and 20°C Storage Relative Humidity: 0 - 95% (non-condensing) Storage Temperature: 5 - 104 °F (-15 - 40 °C)
Package Contents	BCT3L9N125 Battery Cabinet Mounting Hardware
Certifications & Standards	Safety: cTUVus
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
General Information
Product Type	Battery Cabinet
Manufacturer Part Number	BCT3L9N125
Manufacturer Website Address	https://www.cyberpowersystems.com/
Manufacturer	CyberPower Systems, Inc
Product Model	BCT3L9N125
Product Name	BCT3L9N125 Battery Cabinet
Brand Name	CyberPower
Physical Characteristics
Weight (Approximate)	61.10 kg
Form Factor	Rack/Tower/Stack
	Modular
Rack Height	11U
Height	23.90" (607.06 mm)
Width	19.10" (485.14 mm)
Depth	30.50" (774.70 mm)
Product Color	Black
