Tripp Lite

Tripp Lite by Eaton BHDBT-K-SI

Tripp Lite by Eaton BHDBT-K-SI

Regular price $430.99 CAD
Regular price $482.99 CAD Sale price $430.99 CAD
-10% OFF Ask for quote
Shipping calculated at checkout.
Tripp Lite by Eaton BHDBT-K-SI-LR Video Console/Extender - 1 Input Device - 1 Output Device - 328 ft (99974.40 mm) Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 3840 x 2160 - Twisted Pair - Category 6a - Pole-mountable, Wall Mountable, Rack-mountable

VPNBHDBT-K-SI-LR SKU:849735DIS UPC:37332187093

  • Extends a 1080p @ 60 Hz signal up to 328 feet (100 m)
  • Extends a 3840 x 2160 (4K x 2K) signal up to 328 feet (100 m)
  • Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD

Volume discount available - Ask for quote..

View full details

Recently Viewed

Tripp Lite by Eaton BHDBT-K-SI

Product information summary

Tripp Lite by Eaton BHDBT-K-SI

About the product

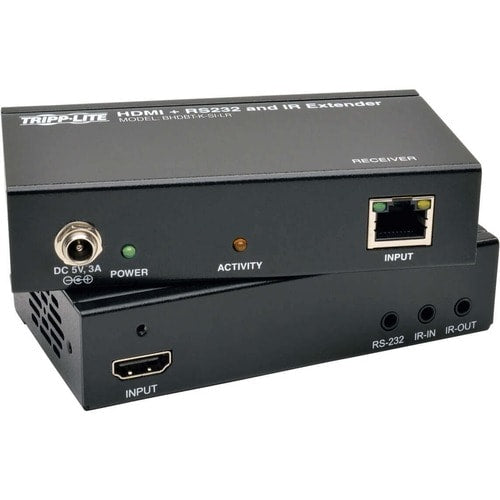

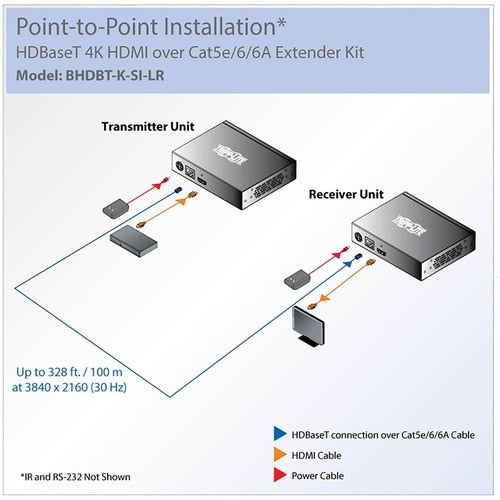

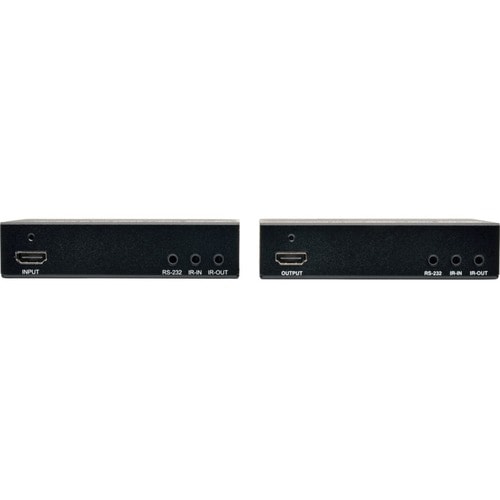

The BHDBT-K-SI-LR HDBaseT Extender Kit allows you to transmit HDMI audio and video, RS-232 serial and IR Remote Control signals up to 328 feet(100 m) over a single Cat5e/6/6a cable. This includes 1920 x 1080(1080p) signals @ 60 Hz and even Ultra High Definition(UHD) 3840 x 2160(4K x 2K) @ 24/30Hz video signals. Add up to five Tripp Lite BHDBT-TR-SI-LR transceivers(sold separately) between the transmitter and receiver units to further expand the range up to 2,000 feet(600 m) with a monitor connected via HDMI port to each transceiver.You can also control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The BHDBT-K-SI-LR's 2-way IR Remote Control feature(@ 39 KHz) lets you control your Blu-ray player using its remote when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player. Locking HDMI ports(ideal for use with Tripp Lite's High-Speed HDMI cables with locking connectors, such as P569-006-LOCK) on both the transmitter and receiver prevent cables from coming loose or undone, ensuring an intact signal. The BHDBT-K-SI-LR supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Included mounting hardware lets you attach each unit to a wall, rack or pole. There's no software to download or install, and you can have the BHDBT-K-SI-LR Extender Kit set up and ready to go quickly. Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases.
  • Extends a 1080p @ 60 Hz signal up to 328 feet (100 m)
  • Extends a 3840 x 2160 (4K x 2K) signal up to 328 feet (100 m)
  • Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
  • Controls RS-232 serial devices at baud rates up to 115 Kbps
  • Allows you to control a Blu-ray™ player from a remote monitor

Technical Specifications

Media & Performance
Twisted Pair Cable StandardCategory 6a
Media Type SupportedTwisted Pair
Video
Graphics Modes4K
Maximum Video Resolution3840 x 2160
Power Description
Input Voltage230 V AC
120 V AC
5 V DC
Technical Information
Connectivity TechnologyWired
Maximum Operating Distance328 ft (99974.40 mm)
Number of Output Devices Supported1
Number of Input Devices Supported1
Miscellaneous

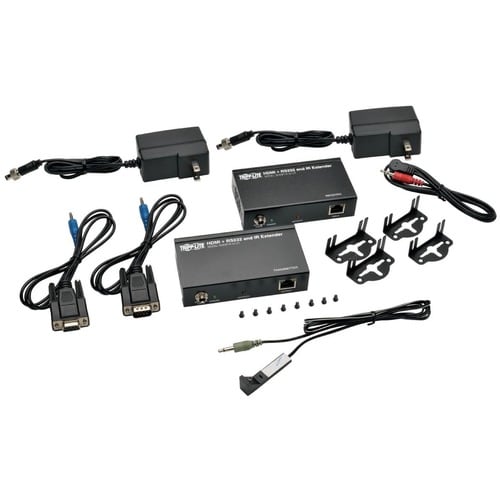

Package Contents
  • Transmitter
  • Receiver
  • IR-IN and IR-OUT Cables
  • 3.5 mm Male to DB9 Female Adapter Cable
  • 3.5 mm Male to DB9 Male Adapter Cable
  • 2 x  External Power Supplies (Input: 100-240V, 50/60 Hz, 0.5A Output: 5V, 3A)
  • Mounting Hardware
  • Owner's Manual
Certifications & Standards
  • TAA
  • CE
  • FCC
Country of OriginTaiwan
Environmentally FriendlyYes
TAA CompliantYes
Interfaces/Ports
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Number of HDMI Inputs1
Number of HDMI Outputs1
HDMI InYes
HDMI OutYes
Physical Characteristics
Form FactorRack-mountable
Wall Mountable
Pole-mountable
Transmitter Weight (Approximate)1.05 lb (476.27 g)
Product ColorBlack
Color FamilyBlack
General Information
Product TypeVideo Extender Transmitter/Receiver
Manufacturer Part NumberBHDBT-K-SI-LR
Manufacturer Website Addresshttp://www.eaton.com/EatonCom/Markets/NorthAmerica
ManufacturerEaton Corporation
Product ModelBHDBT-K-SI-LR
Product NameBHDBT-K-SI-LR Video Console/Extender
Brand NameTripp Lite by Eaton
