About the product

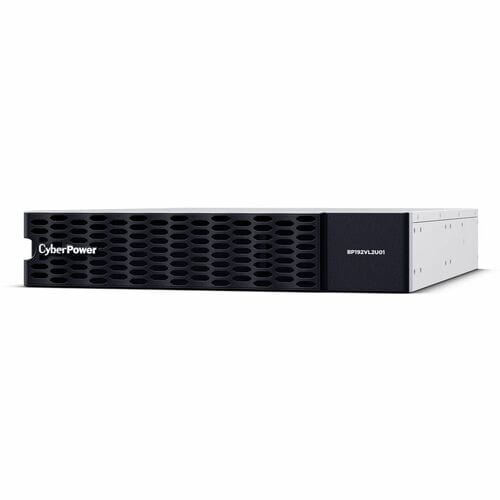

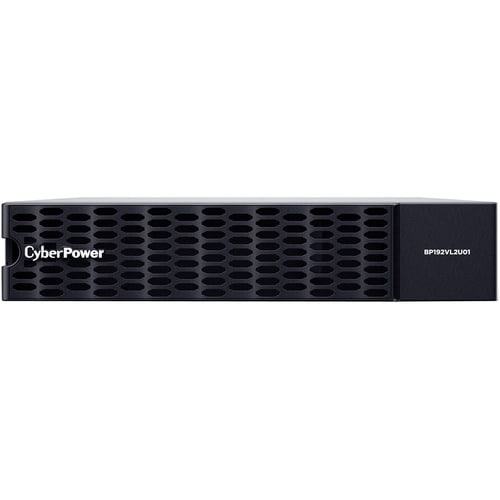

The CyberPower BP192VL2U01 rack/tower convertible Extended Battery Module (EBM) extends battery runtimes during power outages and is designed for CyberPower UPS systems OL8KRTHD and OL10KRTHD.
The BP192VL2U01 takes 2U of rack space and can be installed in a rack or tower configuration to match the UPS form factor. Battery equalization technology improves battery life, and toolless front panel removal makes battery replacement easier. This unit comes with a three-year warranty.
- Typical recharge time (0-90%): 4 hours
- Battery type & quantity:12V/6AH (16)
- Form factor: Rack/Tower
- Hot swappable: Yes
- Battery Equalization Technology: Yes
- Smart Battery Management: Yes
- Fast Charge Technology: Yes
- Warranty:3 year
Technical Specifications
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | CyberPower UPS Systems:
|
| Certifications & Standards | UL1778 |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 101.39 lb (45990 g) |
| Form Factor | Rack/Tower |
| Height | 3.40" (86.40 mm) |
| Width | 17.05" (433.10 mm) |
| Depth | 28.30" (718.80 mm) |
| Technical Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Output Voltage | 192 V DC |
| Output Current | 60 A |
| Battery Size | 12V |
| Battery Capacity | 6000 mAh |
| Maximum Battery Recharge Time | 4 Hour |
| Battery Characteristics | Sealed Lead Acid (SLA) |
| General Information | |
| Product Type | UPS Battery Pack |
| Manufacturer Part Number | BP192VL2U01 |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Packaged Quantity | 1 |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | BP192VL2U01 |
| Product Name | Extended Battery Modules BP192VL2U01 UPS Battery Pack |
| Product Series | Extended Battery Modules |
| Brand Name | CyberPower |
