About the product
Provides extended runtime for compatible UPS systems in education, healthcare, military, government and other IT applications in small or mid-size networks.
Features | Backup Battery Module Gives Your Compatible UPS System Extended Runtime
The valve-regulated lead-acid (VRLA) BP72RT offers extended battery runtime when used in conjunction with SU2200RTXLCD2U, SU2200RTXLCDN, SU3000RTXLCD2U, SU3000RTXLCD2UN, SUINT2200LCD2U and SUINT3000LCD2U SmartOnline® UPS systems. It can also be daisy-chained for a maximum of four matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.
Versatile Installation Options
You can mount the BP72RT in 2U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the UPS system's support stands.
- Lead Acid battery chemistry delivers the required energy to UPS through an easily controlled reaction
- Power your UPS safely without causing hazards with 72 V DC battery
- Delivers constant 72 V DC to ensure that your UPS is ready to use when needed
- Offers extended battery life for associated critical loads
- Add power to the UPS whose quality is affected by weak internal batteries
Technical Specifications
| Warranty | |
| Additional Warranty Information | Extended Service Plans: 5-year depot exchange plan: TL9SW5Y-3000BCExpedited parts coverage for 5 yearsParts, electronics and batteries coverageNext business day shippingTechnical support5-year onsite plan: TLWEBN75XX-7000BCOnsite parts and labor coverage for 5 yearsParts, electronics and batteries coverage24x7 onsite labor coverage, next-day responseNext-day shippingTechnical support |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics | |
| Weight (Approximate) | 86.40 lb (39190.38 g) |
| Height | 3.41" (86.61 mm) |
| Width | 17.33" (440.18 mm) |
| Depth | 23.82" (605.03 mm) |
| Miscellaneous | |

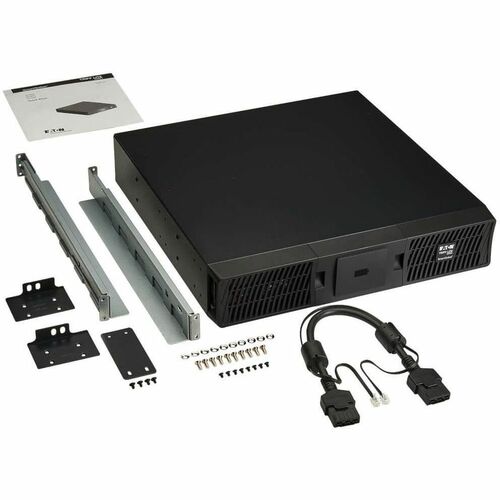

| Package Contents |
|
| Compatibility | Tripp Lite SmartOnline UPS Systems:
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Technical Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Output Voltage | 72 V DC |
| Battery Characteristics | Valve-regulated |
| User Replaceable | |
| Hot-swappable | |
| General Information | |
| Product Type | External Battery Pack |
| Manufacturer Part Number | BP72RT |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | BP72RT |
| Product Name | 72V Extended Battery Module (EBM) for SmartOnline UPS Systems, 2U Rack/Tower |
| Brand Name | Tripp Lite series |
