About the product
Features | Backup Battery Module Gives Your Compatible UPS System Extended Runtime

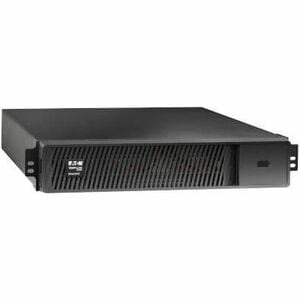

The BP72VRXLTAA offers extended battery runtime when used in conjunction with certain Eaton Tripp Lite series 2200VA and 3000VA SmartPro® UPS systems, such as the SMART2200RXLTAA and SMART3000RXLTAA. It can also be daisy-chained for a maximum of four matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.
Equipped with External Battery Auto-Detect
The automatic battery detection feature works with the connected UPS system to detect the EBM and automatically update runtimes.
Versatile Design Supports 2U Rack or Tower Installation
This VRLA battery pack's multi-use form factor supports mounting in 2U of space in EIA-standard 19-inch open frame racks or enclosures using the included 4-post rail kit and mounting brackets. Tower stands are also included for optional upright configuration.
TAA-Compliant for GSA Schedule Purchases
The BP72VRXLTAA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- In terms of cost per watt hours, it is an inexpensive choice providing efficient power
- 72 V DC battery ensures a steady and constant electric supply to UPS
- Power your UPS safely without causing hazards with 72 V DC battery
Technical Specifications
| Physical Characteristics | |
| Weight (Approximate) | 89.10 lb (40415.08 g) |
| Height | 3.40" (86.36 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 23.70" (601.98 mm) |
| Technical Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Output Voltage | 72 V DC |
| Battery Size | Proprietary Battery Size |
| Battery Characteristics | Valve-regulated |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Eaton SmartPro UPS Systems:
|
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| General Information | |
| Product Type | External Battery Pack |
| Manufacturer Part Number | BP72VRXLTAA |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | BP72VRXLTAA |
| Product Name | Extended Battery Modules BP72VRXLTAA External Battery Pack |
| Product Series | Extended Battery Modules |
| Brand Name | Tripp Lite by Eaton |
